Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

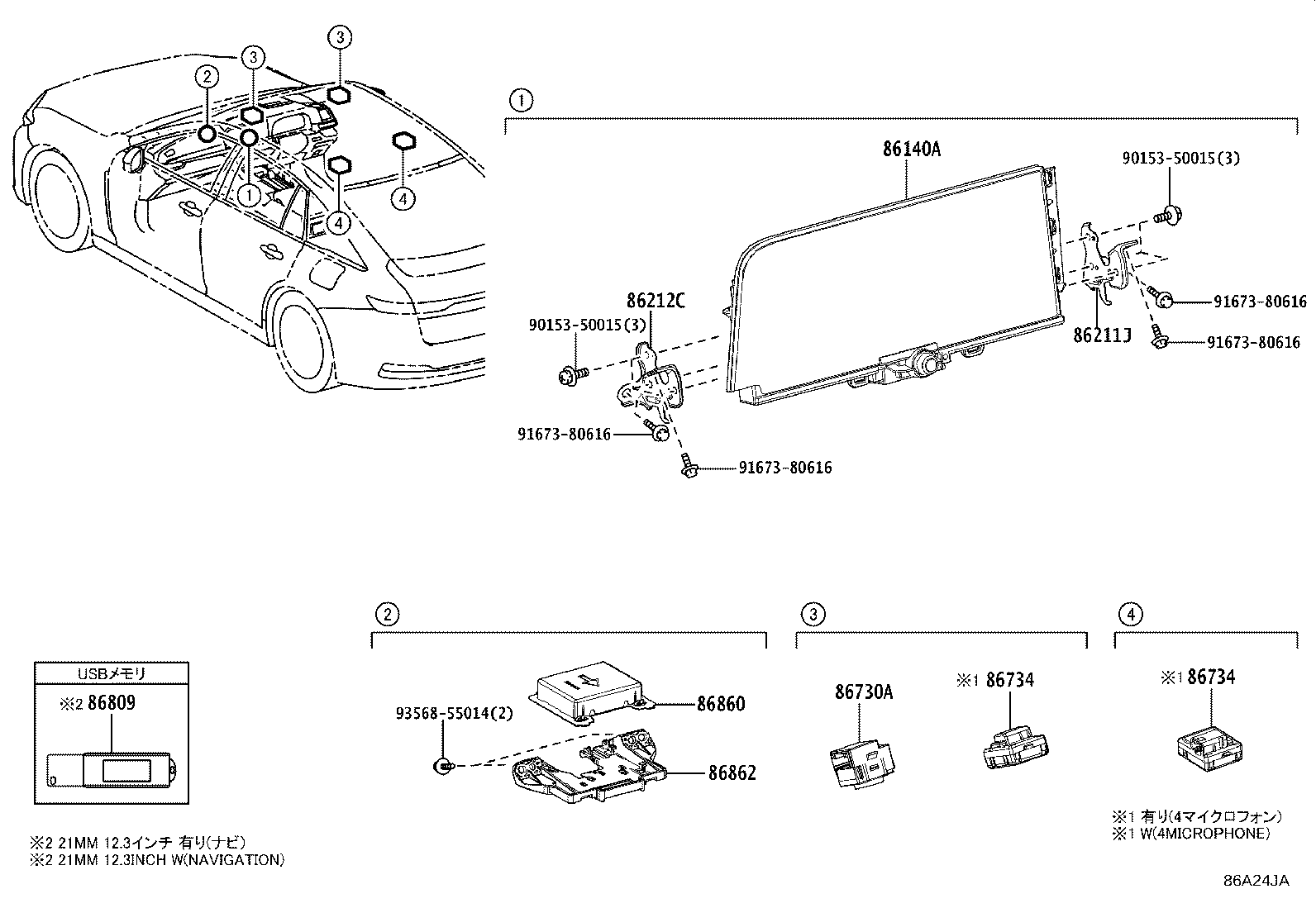

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86140A — Receiver Assy, Radio & Display | ||||
| 86100-30560 note |
Receiver Assy, Radio & Display
2023-11 → 2024-05
ended
|
KZSM30 | ¥233,000 | |
| 86100-30561 note |
Receiver Assy, Radio & Display
2024-06 → 2024-11
ended
|
KZSM30 | ¥233,000 | |
| 86100-30562 note |
Receiver Assy, Radio & Display
2024-12 → —
|
KZSM30 | ¥211,000 | |
| 86100-30580 note |
Receiver Assy, Radio & Display
2023-11 → 2024-05
ended
|
AZSH32 Z | ¥233,000 | |
| 86100-30581 note |
Receiver Assy, Radio & Display
2024-06 → 2024-11
ended
|
AZSH32 Z | ¥233,000 | |
| 86100-30582 note |
Receiver Assy, Radio & Display
2024-12 → —
|
AZSH32 Z | ¥211,000 | |
| 86140-30090 note |
Receiver Assy, Radio & Display
2023-11 → 2024-05
ended
|
AZSH32 G | ¥200,000 | |
| 86140-30091 note |
Receiver Assy, Radio & Display
2024-06 → 2024-11
ended
|
AZSH32 G | ¥200,000 | |
| 86140-30092 note |
Receiver Assy, Radio & Display
2024-12 → —
|
AZSH32 G | ¥181,000 | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-12470 |
Bracket, Radio Receiver, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥260 | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-12460 |
Bracket, Radio Receiver, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥320 | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-78010 |
Microphone Assy, Telephone
2023-11 → —
|
AZSH32,KZSM30 | ¥6,400 | |
| 86734 — Microphone, Active Noise Control | ||||
| 86734-11030 |
Microphone, Active Noise Control
2023-11 → —
|
AZSH32 | ¥1,860 | |
| 86809 — Usb Set, Usb Memory Navigation Data | ||||
| 86809-78013 note |
Usb Set, Usb Memory Navigation Data
2024-04 → 2024-10
ended
|
AZSH32,KZSM30 Z | ¥27,600 | |
| 86809-78014 note |
Usb Set, Usb Memory Navigation Data
2024-11 → 2025-03
ended
|
AZSH32,KZSM30 Z | ¥27,600 | |
| 86860 — Antenna Assy, Navigation | ||||
| 86880-52030 |
Antenna Assy, Navigation
2023-11 → —
|
AZSH32,KZSM30 | ¥8,500 | |
| 86862 — Bracket, Navigation Antenna | ||||
| 86862-48060 |
Bracket, Navigation Antenna
2023-11 → —
|
AZSH32,KZSM30 | ¥970 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
