Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

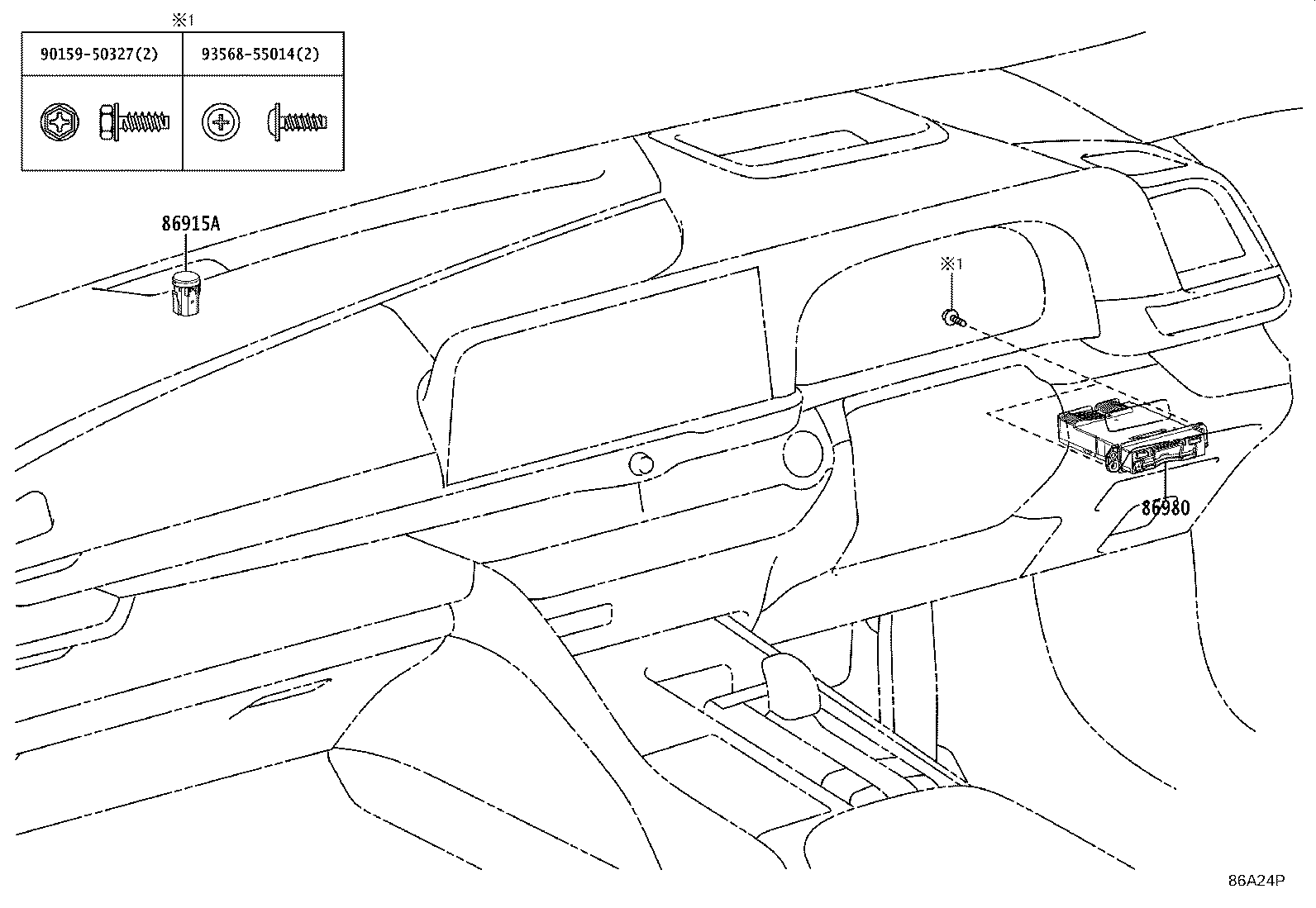

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86915A — Transceiver, Optical Beacon | ||||
| 86915-60010 |
Transceiver, Optical Beacon
2023-11 → —
|
AZSH32,KZSM30 Z | ¥14,200 | |
| 86980 — Computer Assy, Toll Collection | ||||
| 86980-30150 |
Computer Assy, Toll Collection
2023-11 → —
|
AZSH32,KZSM30 Z | ¥37,600 | |
| 86980-30160 |
Computer Assy, Toll Collection
2023-11 → —
|
AZSH32 G | ¥37,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
