Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

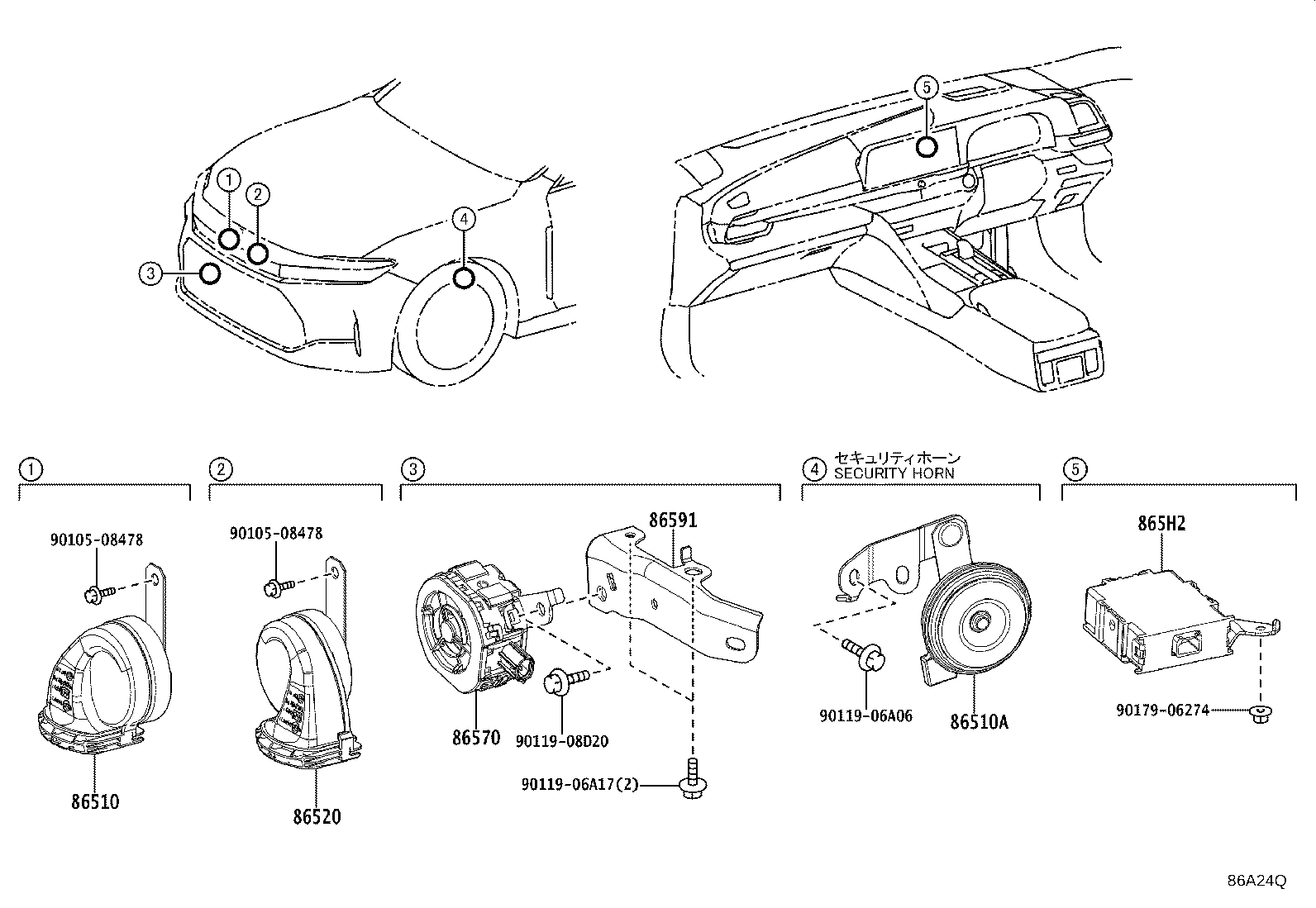

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510 — Horn Assy, High Pitched | ||||
| 86510-30740 |
Horn Assy, High Pitched
2023-11 → —
|
AZSH32,KZSM30 | ¥2,480 | |
| 86510A — Horn Assy, Security | ||||
| 86560-50030 |
Horn Assy, Security
2023-11 → —
|
AZSH32,KZSM30 | ¥2,190 | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-30650 |
Horn Assy, Low Pitched
2023-11 → —
|
AZSH32,KZSM30 | ¥2,480 | |
| 86570 — Speaker Assy, Vehicle Approaching | ||||
| 86570-62040 |
Speaker Assy, Vehicle Approaching
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 86591 — Bracket, Horn | ||||
| 82715-62610 |
Bracket, Horn
2023-11 → —
|
AZSH32,KZSM30 | ¥670 | |
| 865H2 — Controller, Speaker | ||||
| 865H2-30030 |
Controller, Speaker
2023-11 → 2025-06
ended
|
KZSM30 | ¥8,800 | |
| 865H2-30050 |
Controller, Speaker
2023-11 → 2025-06
ended
|
AZSH32 | ¥8,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
