Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

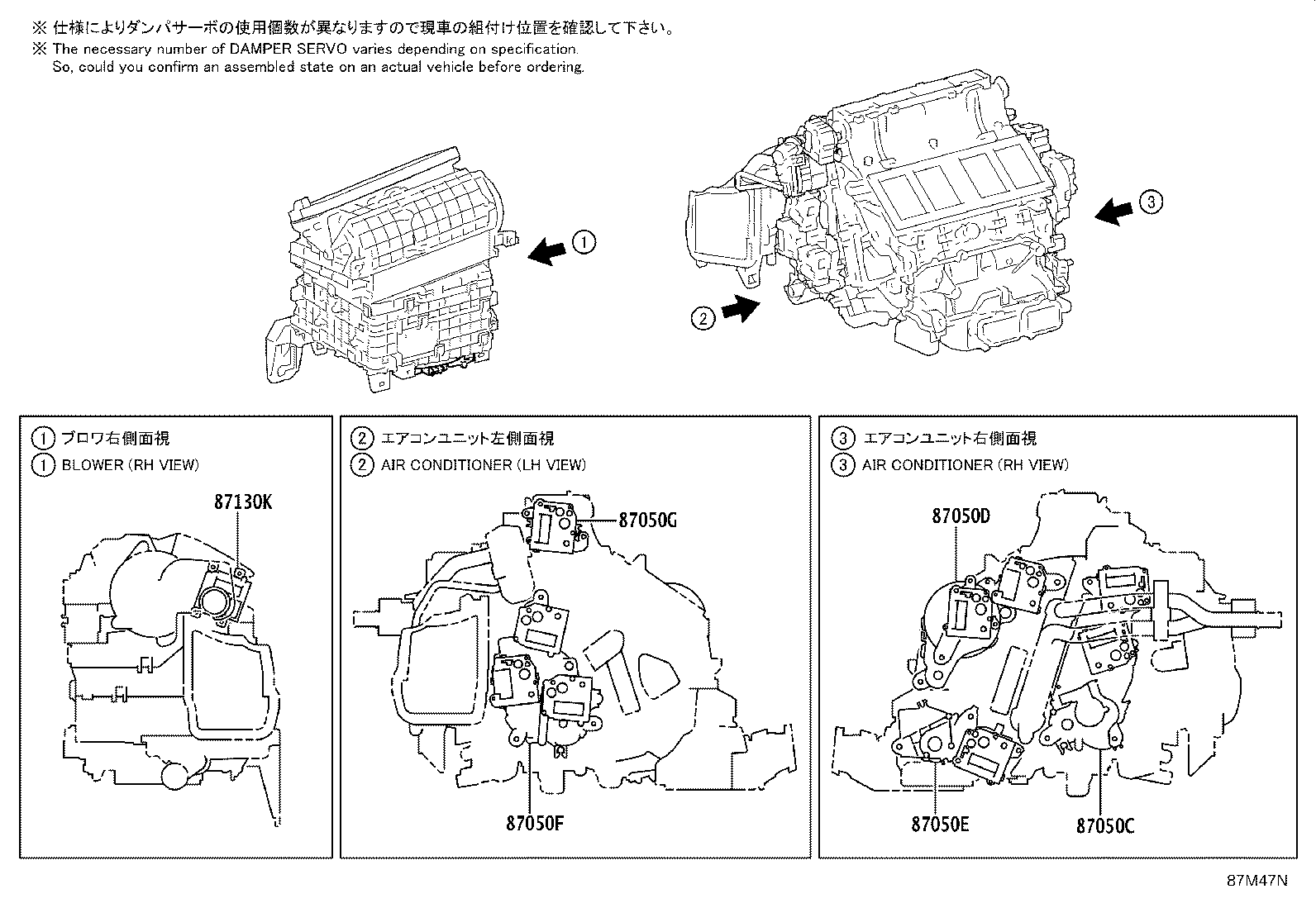

| 87050C — Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 | ||||
| 87106-11010 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2023-11 → —
|
AZSH32 G | — | |
| 87106-11020 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2023-11 → —
|
AZSH32,KZSM30 Z | — | |
| 87050D — Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 | ||||
| 87106-11050 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 87050E — Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 | ||||
| 87106-50600 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 87050F — Damper Servo Sub-assy, Air Conditioner Radiator, NO.4 | ||||
| 87106-50700 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2023-11 → —
|
AZSH32 G | — | |
| 87106-50710 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2023-11 → —
|
AZSH32,KZSM30 Z | — | |
| 87050G — Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 | ||||
| 87106-50740 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 87130K — Damper Servo Sub-assy, Blower, NO.1 | ||||
| 87106-50750 |
Damper Servo Sub-assy, Blower, NO.1
2023-11 → —
|
AZSH32,KZSM30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
