Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

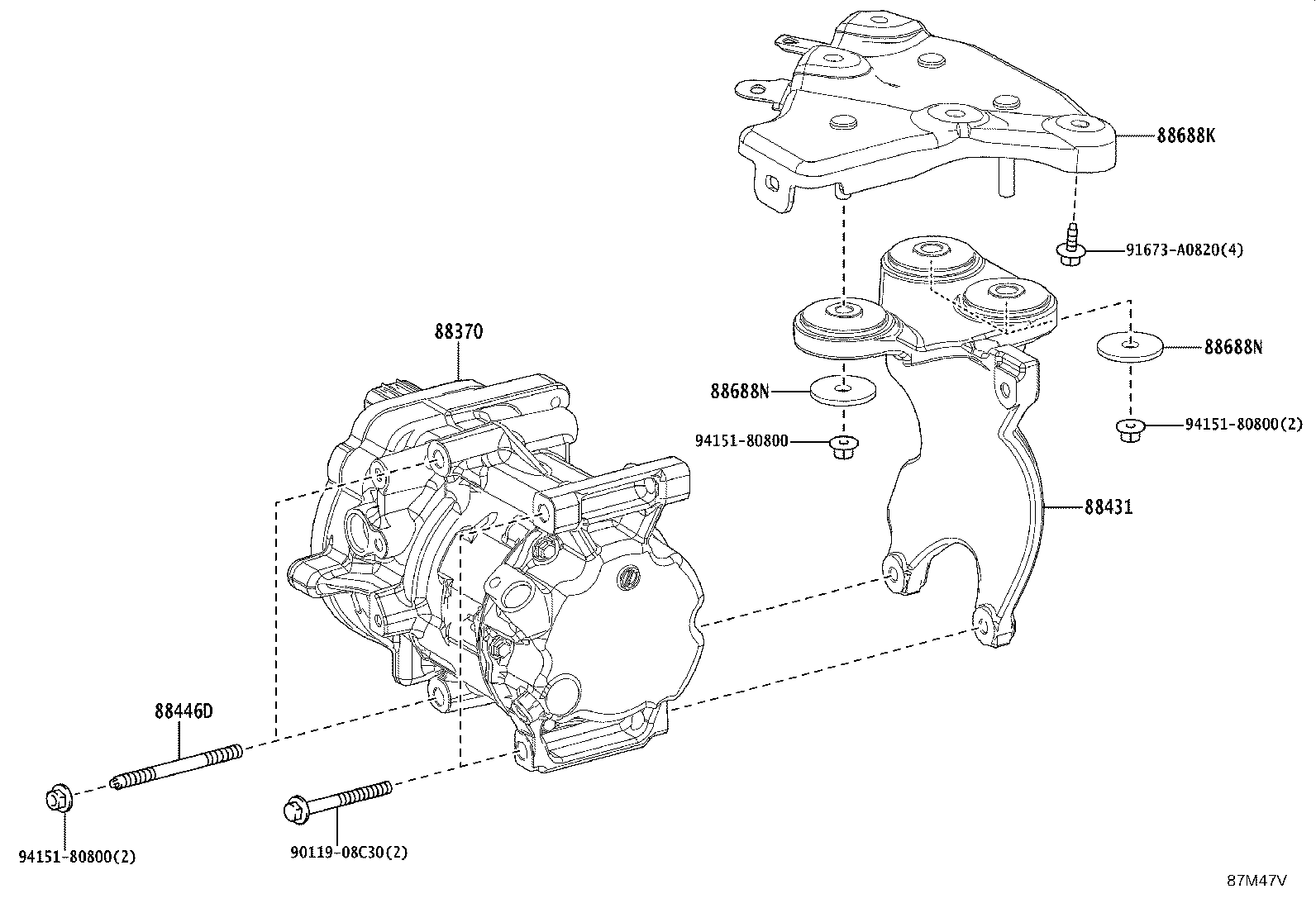

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88370 — Compressor Assy, W/Motor | ||||
| 88370-30080 |
Compressor Assy, W/Motor
2023-11 → —
|
AZSH32 | — | |
| 88370-62021 |
Compressor Assy, W/Motor
2023-11 → —
|
KZSM30 | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-30640 |
Bracket, Compressor Mounting, NO.1
2023-11 → —
|
AZSH32 | — | |
| 88431-62030 |
Bracket, Compressor Mounting, NO.1
2023-11 → —
|
KZSM30 | — | |
| 88446D — Bolt, Cooler | ||||
| 88899-44010 |
Bolt, Cooler
2023-11 → —
|
AZSH32,KZSM30 | — | |
| 88688K — Bracket, Cooler Compressor | ||||
| 88688-62130 |
Bracket, Cooler Compressor
2023-11 → —
|
KZSM30 | — | |
| 88688N — Bracket, Cooler | ||||
| 88688-62060 |
Bracket, Cooler
2023-11 → —
|
KZSM30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
