Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

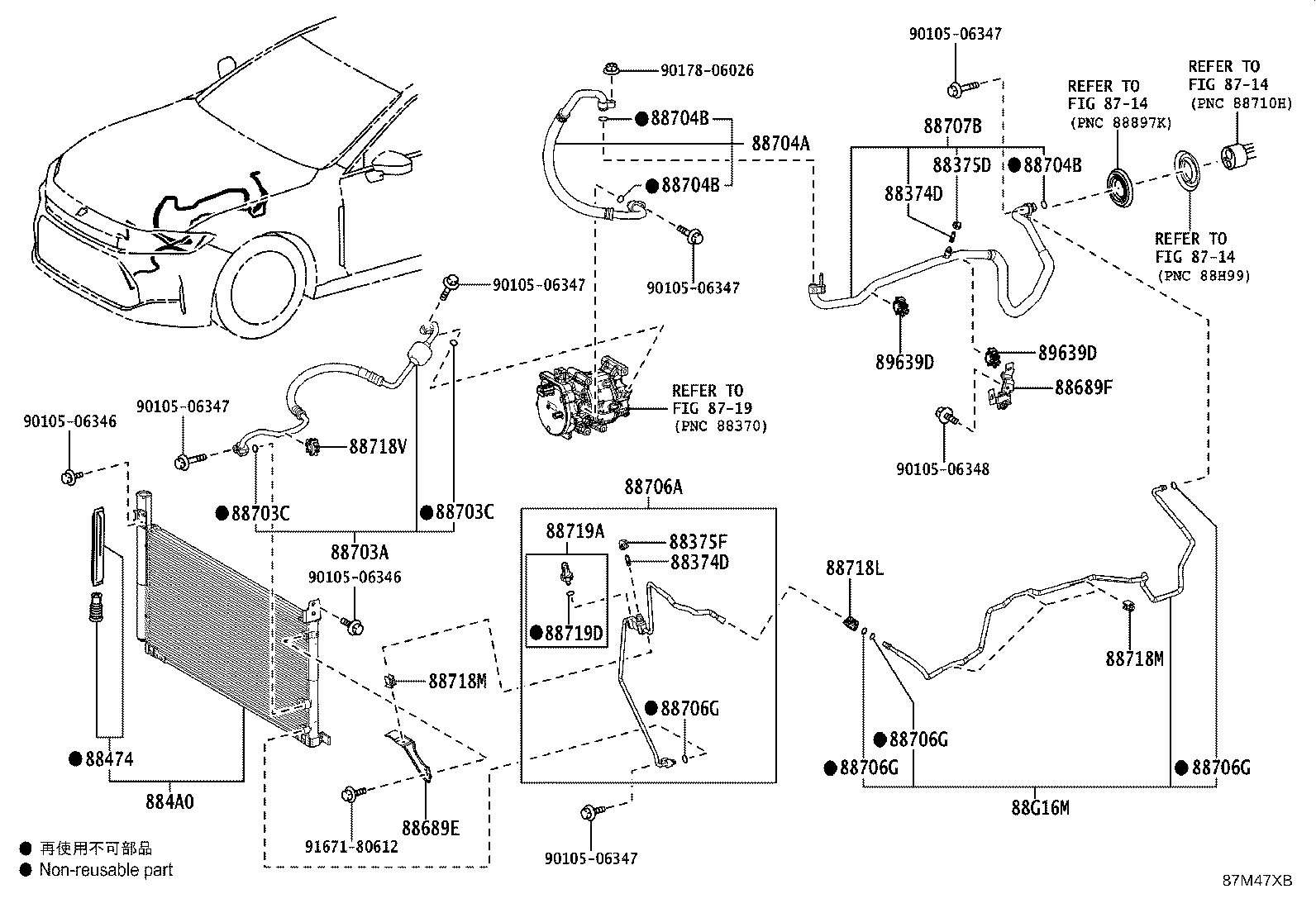

Exploded illustration 87M47XB 88719A — SENSOR, AIR CONDITIONER PRESSURE (1 parts) 88719D — RING, O(FOR AIR CONDITIONER PRESSURE SENSOR) (2 parts) 88706G — RING, O(FOR LIQUID TUBE) (1 parts) 88718L — CLAMP, PIPING (1 parts) 88689F — BRACKET, COOLER, NO.2 (2 parts) 88G16M — TUBE, LIQUID, NO.1 (2 parts) 88704A — HOSE SUB-ASSY, SUCTION, A (2 parts) 88706A — TUBE SUB-ASSY, LIQUID, A (2 parts) 88707B — TUBE SUB-ASSY, SUCTION, B (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 88706G — RING, O(FOR LIQUID TUBE) (1 parts) 88706G — RING, O(FOR LIQUID TUBE) (1 parts) 88706G — RING, O(FOR LIQUID TUBE) (1 parts) 88375D — CAP, SERVICE VALVE, NO.2 (1 parts) 88375F — CAP, SERVICE VALVE, NO.3 (1 parts) 88374D — VALVE, SERVICE NO.3 (1 parts) 88374D — VALVE, SERVICE NO.3 (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 89639D — CLAMP, AIRCONDITIONER TUBE (1 parts) 89639D — CLAMP, AIRCONDITIONER TUBE (1 parts) 88689E — BRACKET, COOLER, NO.1 (2 parts) 88718V — CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE) (1 parts) 88718M — CLAMP, PIPING (2 parts) 88718M — CLAMP, PIPING (2 parts) 9017806026 — not listed in this catalogue 9167180612 — not listed in this catalogue 9010506346 — not listed in this catalogue 9010506346 — not listed in this catalogue 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 9010506348 — not listed in this catalogue 9010506347 — not listed in this catalogue 8719 — not listed in this catalogue 88474 — DRYER, COOLER (2 parts) 884A0 — CONDENSER ASSY, COOLER (2 parts) 88703A — HOSE SUB-ASSY, DISCHARGE, NO.1 (3 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 8714 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue
87M47XB · 30 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
88374D — Valve, Service NO.3
88374-30010 Valve, Service NO.3
2023-11 → —
AZSH32,KZSM30 —
88375D — Cap, Service Valve, NO.2
88375-30310 Cap, Service Valve, NO.2
2023-11 → —
AZSH32,KZSM30 —
88375F — Cap, Service Valve, NO.3
88375-30320 Cap, Service Valve, NO.3
2023-11 → —
AZSH32,KZSM30 —
88474 — Dryer, Cooler
88474-12010 Dryer, Cooler
2023-11 → —
KZSM30 ¥0
88474-12020 Dryer, Cooler
2023-11 → —
AZSH32 ¥0
884A0 — Condenser Assy, Cooler
884A0-30040 Condenser Assy, Cooler
2023-11 → —
AZSH32 ¥37,000
884A0-62020 Condenser Assy, Cooler
2023-11 → —
KZSM30 ¥35,300
88689E — Bracket, Cooler, NO.1
88688-50390 Bracket, Cooler, NO.1
2023-11 → —
AZSH32 —
88688-62070 Bracket, Cooler, NO.1
2023-11 → —
KZSM30 —
88689F — Bracket, Cooler, NO.2
88688-50420 Bracket, Cooler, NO.2
2023-11 → —
AZSH32 —
88688-62100 Bracket, Cooler, NO.2
2023-11 → —
KZSM30 —
88703A — Hose Sub-assy, Discharge, NO.1
88703-30A20 Hose Sub-assy, Discharge, NO.1
2023-11 → —
AZSH32 ¥8,200
88703-62020 Hose Sub-assy, Discharge, NO.1
2023-11 → 2024-01 ended
KZSM30 ¥11,800
88703-62030 Hose Sub-assy, Discharge, NO.1
2024-02 → —
KZSM30 ¥11,100
88703C — Ring, O(FOR DISCHARGE HOSE)
90099-14120 note Ring, O(FOR DISCHARGE HOSE)
2023-11 → —
AZSH32,KZSM30 —
88704A — Hose Sub-assy, Suction, A
88704-30890 Hose Sub-assy, Suction, A
2023-11 → —
AZSH32 ¥9,500
88704-62020 Hose Sub-assy, Suction, A
2023-11 → —
KZSM30 ¥11,300
88704B — Ring, O(FOR SUCTION HOSE)
90099-14121 note Ring, O(FOR SUCTION HOSE)
2023-11 → —
AZSH32,KZSM30 —
88706A — Tube Sub-assy, Liquid, A
88706-30B10 Tube Sub-assy, Liquid, A
2023-11 → —
AZSH32 ¥11,800
88706-62010 Tube Sub-assy, Liquid, A
2023-11 → —
KZSM30 ¥12,000
88706G — Ring, O(FOR LIQUID TUBE)
90099-14119 note Ring, O(FOR LIQUID TUBE)
2023-11 → —
AZSH32 —
88707B — Tube Sub-assy, Suction, B
88707-30B50 Tube Sub-assy, Suction, B
2023-11 → —
AZSH32 ¥13,900
88718L — Clamp, Piping
88718-2D150 Clamp, Piping
2023-11 → —
AZSH32,KZSM30 —
88718M — Clamp, Piping
88718-50390 Clamp, Piping
2023-11 → —
AZSH32 —
88718-50390 Clamp, Piping
2023-11 → —
KZSM30 —
88718V — Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88718-30A30 Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
2023-11 → —
AZSH32,KZSM30 ¥500
88719A — Sensor, Air Conditioner Pressure
88719-11010 Sensor, Air Conditioner Pressure
2023-11 → —
AZSH32,KZSM30 —
88719D — Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
90099-14119 note Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
2023-11 → —
KZSM30 —
90099-14122 note Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
2023-11 → —
AZSH32 —
88G16M — Tube, Liquid, NO.1
88716-30D20 Tube, Liquid, NO.1
2023-11 → —
AZSH32 ¥5,800
88716-62080 Tube, Liquid, NO.1
2023-11 → —
KZSM30 ¥4,920
89639D — Clamp, Airconditioner Tube
89639-58020 Clamp, Airconditioner Tube
2023-11 → —
AZSH32 ¥520
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
