Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

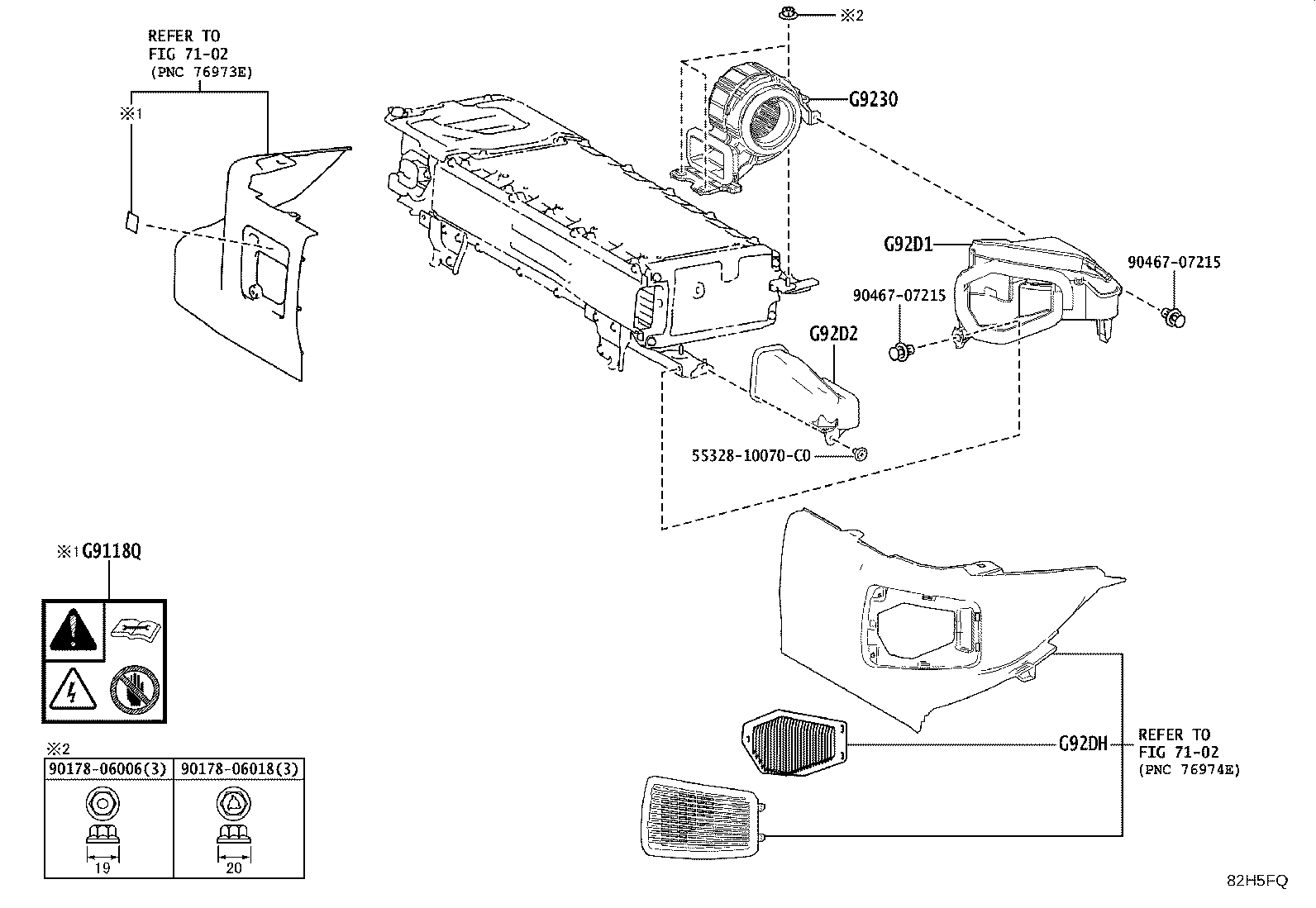

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G9118Q — Label, HV Unit Controller Caution, NO.1 | ||||
| G9118-62011 |
Label, HV Unit Controller Caution, NO.1
2024-06 → —
|
AZSH38 | ¥110 | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-30050 |
Blower Assy, Battery Cooling
2024-06 → —
|
AZSH38 | ¥16,200 | |
| G92D1 — Duct, Hybrid Battery Intake, NO.1 | ||||
| G92D1-30070 |
Duct, Hybrid Battery Intake, NO.1
2024-06 → —
|
AZSH38 | ¥2,610 | |
| G92D2 — Duct, Hybrid Battery Intake, NO.2 | ||||
| G92D2-30070 |
Duct, Hybrid Battery Intake, NO.2
2024-06 → —
|
AZSH38 | ¥930 | |
| G92DH — Filter, HV Battery Intake, NO.1 | ||||
| G92DH-30150 |
Filter, HV Battery Intake, NO.1
2024-06 → —
|
AZSH38 | ¥360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
