Toyota Crown Estate

2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

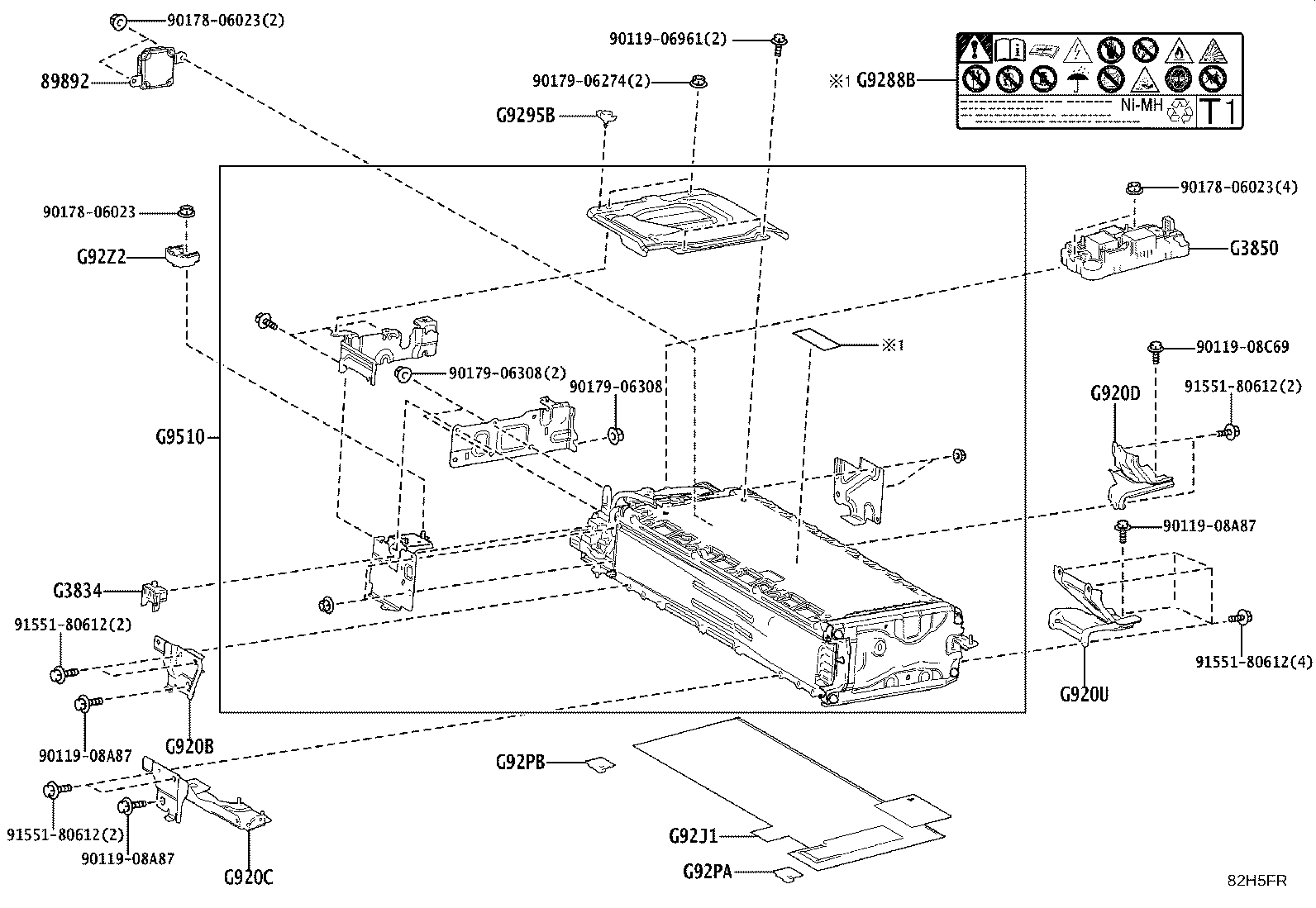

Exploded illustration 82H5FR G3850 — BOX ASSY, TRACTION BATTERY DEVICE, NO.1 (1 parts) 9017806023 — not listed in this catalogue G92Z2 — BLOCK, HYBRID BATTERY TERMINAL (1 parts) 9017806023 — not listed in this catalogue G920U — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.4 (1 parts) G920C — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.2 (1 parts) G920B — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1 (1 parts) G920D — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.3 (1 parts) 89892 — COMPUTER, BATTERY SENSOR (1 parts) G9295B — STRIKER, BATTERY COVER LOCK (1 parts) G92J1 — SHEET, HV BATTERY TRAY, NO.1 (1 parts) G92PA — GUIDE, HYBRID BATTERY, FRONT (1 parts) G92PB — GUIDE, HYBRID BATTERY, REAR (1 parts) G3834 — GRIP, SERVICE PLUG (2 parts) 9017806023 — not listed in this catalogue 9011908C69 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9017906274 — not listed in this catalogue G9288B — LABEL, BATTERY CAUTION (1 parts) 9011906961 — not listed in this catalogue G9510 — BATTERY ASSY, HV SUPPLY (3 parts) 9155180612 — not listed in this catalogue 9017906308 — not listed in this catalogue 9017906308 — not listed in this catalogue 9155180612 — not listed in this catalogue 9155180612 — not listed in this catalogue 9155180612 — not listed in this catalogue
82H5FR · 14 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
89892 — Computer, Battery Sensor
89892-30030 Computer, Battery Sensor
2024-06 → —
AZSH38 ¥21,100
G3834 — Grip, Service Plug
G3834-47050 Grip, Service Plug
2024-06 → —
AZSH38 ¥1,680
G3855-42010 Grip, Service Plug
2024-07 → —
AZSH39 ¥6,500
G3850 — Box Assy, Traction Battery Device, NO.1
G3850-48010 Box Assy, Traction Battery Device, NO.1
2024-06 → —
AZSH38 ¥24,700
G920B — Bracket Sub-assy, HV Battery Carrier, NO.1
G920B-30050 Bracket Sub-assy, HV Battery Carrier, NO.1
2024-06 → —
AZSH38 ¥1,220
G920C — Bracket Sub-assy, HV Battery Carrier, NO.2
G920C-30050 Bracket Sub-assy, HV Battery Carrier, NO.2
2024-06 → —
AZSH38 ¥1,660
G920D — Bracket Sub-assy, HV Battery Carrier, NO.3
G920D-30060 Bracket Sub-assy, HV Battery Carrier, NO.3
2024-06 → —
AZSH38 ¥1,980
G920U — Bracket Sub-assy, HV Battery Carrier, NO.4
G920U-30040 Bracket Sub-assy, HV Battery Carrier, NO.4
2024-06 → —
AZSH38 ¥2,270
G9288B — Label, Battery Caution
G9288-48070 Label, Battery Caution
2024-06 → —
AZSH38 ¥200
G9295B — Striker, Battery Cover Lock
G9295-30020 Striker, Battery Cover Lock
2024-06 → —
AZSH38 ¥200
G92J1 — Sheet, HV Battery Tray, NO.1
G92J1-30060 Sheet, HV Battery Tray, NO.1
2024-06 → —
AZSH38 ¥1,630
G92PA — Guide, Hybrid Battery, Front
G92PA-30010 Guide, Hybrid Battery, Front
2024-06 → —
AZSH38 ¥220
G92PB — Guide, Hybrid Battery, Rear
G92PB-30010 Guide, Hybrid Battery, Rear
2024-06 → —
AZSH38 ¥200
G92Z2 — Block, Hybrid Battery Terminal
G92Z2-47070 Block, Hybrid Battery Terminal
2024-06 → —
AZSH38 ¥2,510
G9510 — Battery Assy, HV Supply
G9510-30110 Battery Assy, HV Supply
2024-06 → —
AZSH38 —
G9510-30140 Battery Assy, HV Supply
2024-07 → 2024-11 ended
AZSH39 ¥746,000
G9510-30141 Battery Assy, HV Supply
2024-12 → —
AZSH39 ¥746,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
