Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

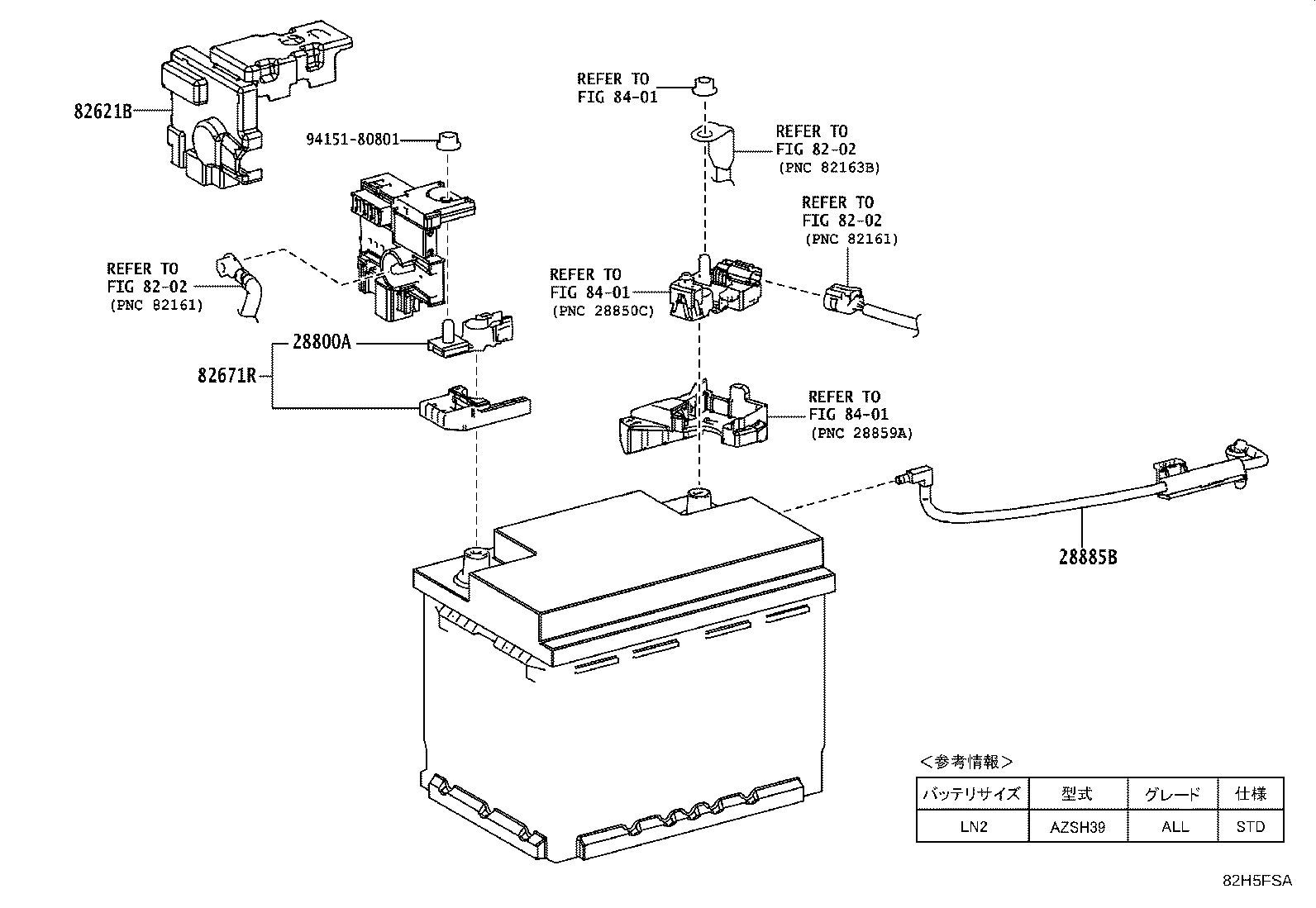

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800A — Terminal, Battery Positive | ||||
| 90982-05058 |
Terminal, Battery Positive
2024-06 → —
|
A25 AZSH3# | ¥860 | |
| 28885B — Hose, Battery | ||||
| 28885-25080 |
Hose, Battery
2024-06 → —
|
A25 AZSH3# | ¥1,560 | |
| 82621B — Cover, Fusible Link | ||||
| 82621-30060 |
Cover, Fusible Link
2024-07 → —
|
AZSH39 | ¥740 | |
| 82621-30070 |
Cover, Fusible Link
2024-06 → —
|
AZSH38 | ¥670 | |
| 82671R — Stopper, Battery Terminal | ||||
| 82670-30390 |
Stopper, Battery Terminal
2024-06 → —
|
AZSH3# | ¥1,450 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
