Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

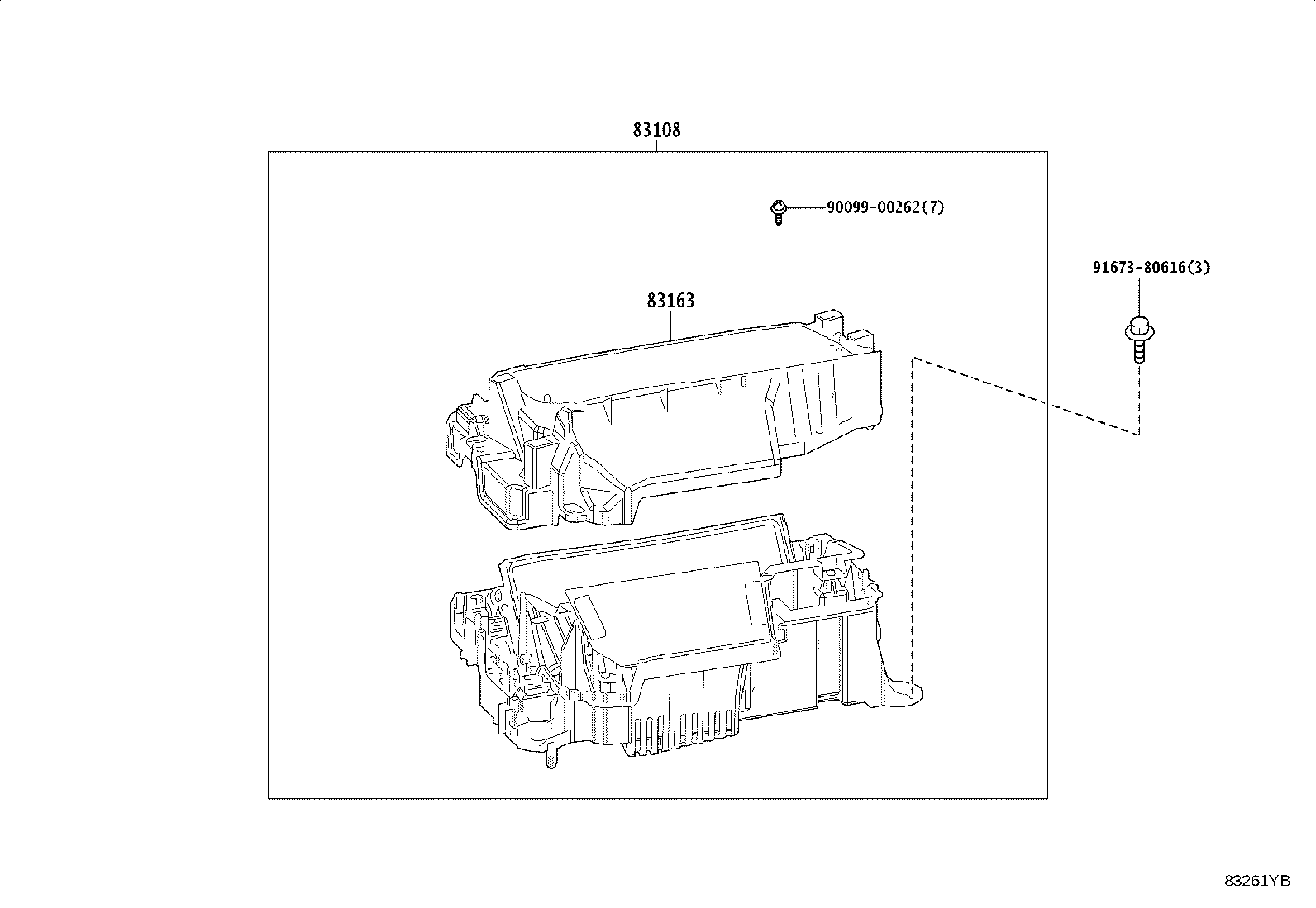

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-30341 |
Mirror Sub-assy, Meter
2024-06 → —
|
AZSH3# RS,Z | ¥50,000 | |
| 83108-30341 note |
Mirror Sub-assy, Meter
2024-06 → —
|
AZSH3# G | ¥50,000 | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-30340 |
Plate, Combination Meter Mirror, NO.1
2024-06 → —
|
AZSH3# RS,Z | ¥2,790 | |
| 83163-30340 note |
Plate, Combination Meter Mirror, NO.1
2024-06 → —
|
AZSH3# G | ¥2,790 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
