Toyota Crown Estate

2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan

Supported model Data version 2024-07

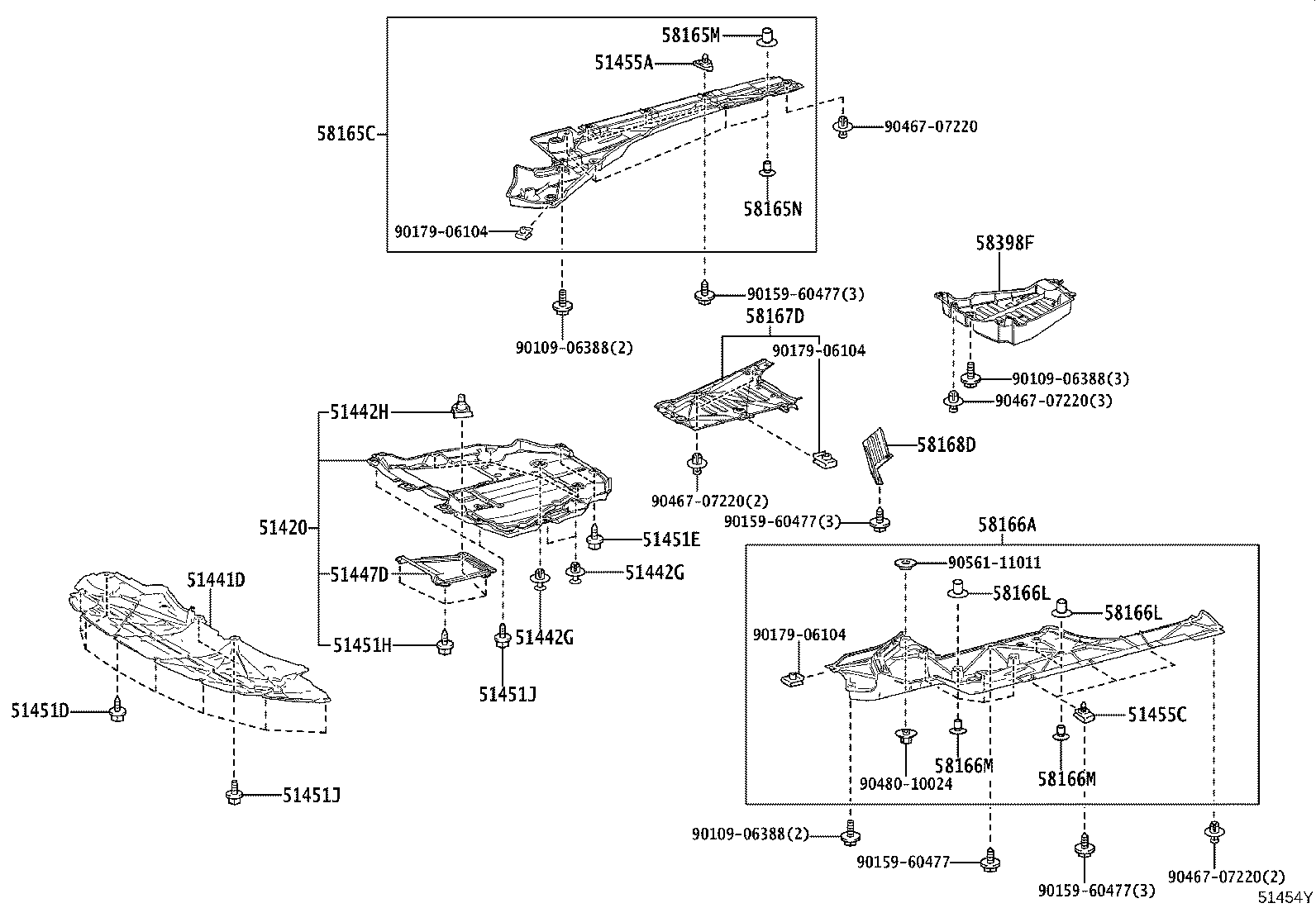

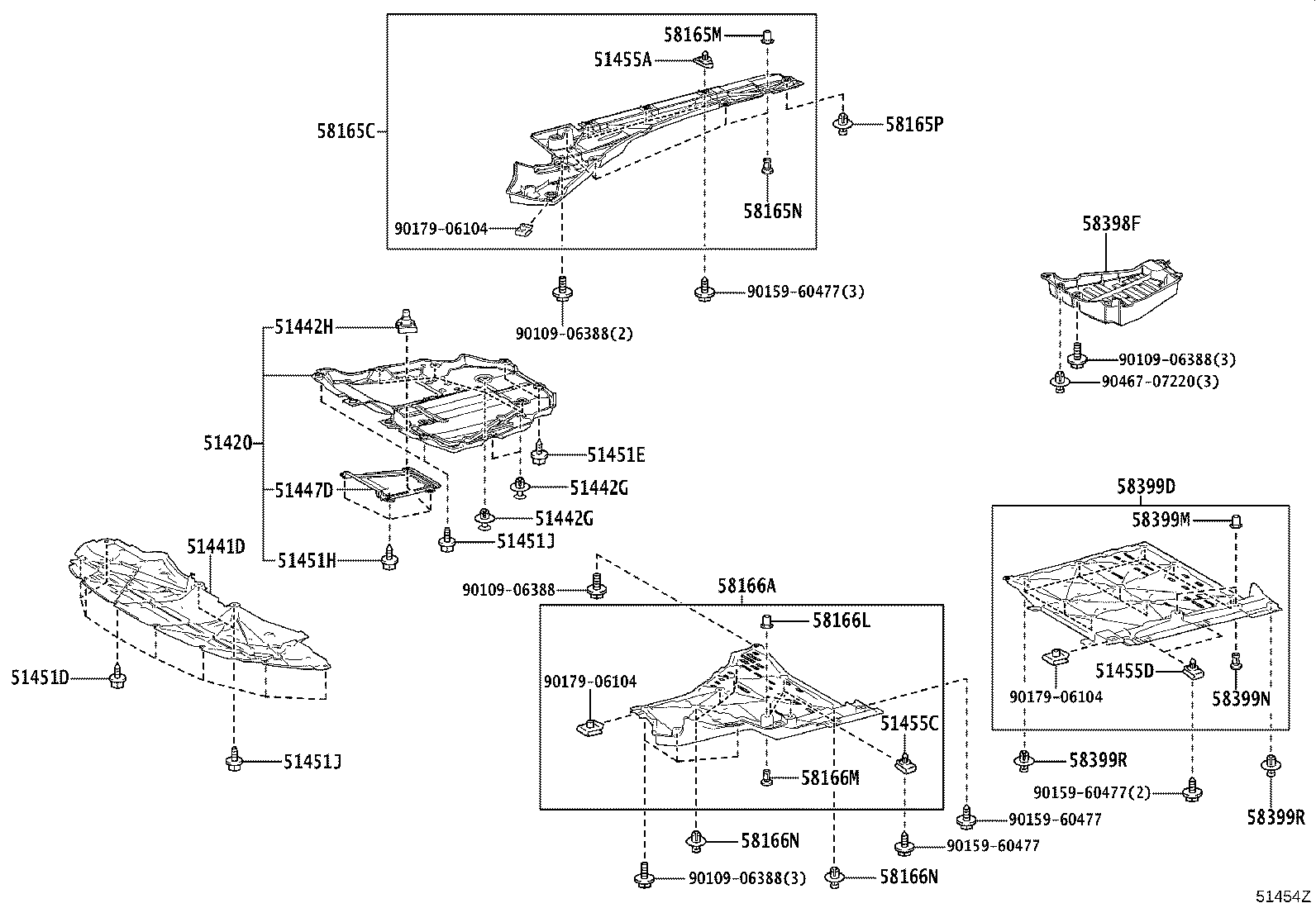

Suspension Crossmember & Under Cover

40 part groups · 3 illustrations

PNC	Description
51100G	Frame Assy, Front
51206A	Member Sub-assy, Rear Suspension
51207G	Bracket Sub-assy, Strut Bar
51420	Cover Assy, Engine Under, NO.2
51441D	Cover, Engine Under
51442G	Clip, Engine Under Cover, NO.1
51442H	Clip, Engine Under Cover, NO.2
51447D	Cover, Engine Under, NO.4 Center
51451D	Screw, NO.1
51451E	Screw, NO.2
51451H	Screw, NO.3
51451J	Bolt, NO.1
51455A	Seal, Engine Under Cover, NO.1
51455C	Seal, Engine Under Cover, NO.2
51455D	Seal, Engine Under Cover, NO.3
51468B	Insulator, Engine Under Cover Heat
52257	Brace, Front Suspension Member, Rear RH
52258A	Brace, Front Suspension Member, Rear LH
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52275B	Cushion, Rear Suspension Member Body Mount, Rear RH
52276A	Cushion, Rear Suspension Member Body Mount, Rear LH
52277B	Stopper, Rear Suspension Member, Rear Upper
52278C	Stopper, Rear Suspension Member, Rear Lower
52297	Brace, Rear Suspension Member, Rear Lower RH
52298	Brace, Rear Suspension Member, Rear Lower LH
58165C	Cover, Front Floor, RH
58165M	Clip, Front Floor Cover, NO.1
58165N	Clip, Front Floor Cover, NO.2
58165P	Clip, Front Floor Cover, NO.3
58166A	Cover, Front Floor, LH
58166L	Clip, Front Floor Cover, NO.1
58166M	Clip, Front Floor Cover, NO.2
58166N	Clip, Front Floor Cover, NO.3
58167D	Cover, Front Floor, Center RH
58168D	Cover, Front Floor, Center LH
58398F	Cover, Floor Under, NO.1
58399D	Cover, Floor Under, NO.2
58399M	Clip, Floor Under Cover, NO.1
58399N	Clip, Floor Under Cover, NO.2
58399R	Clip, Floor Under Cover, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
