Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

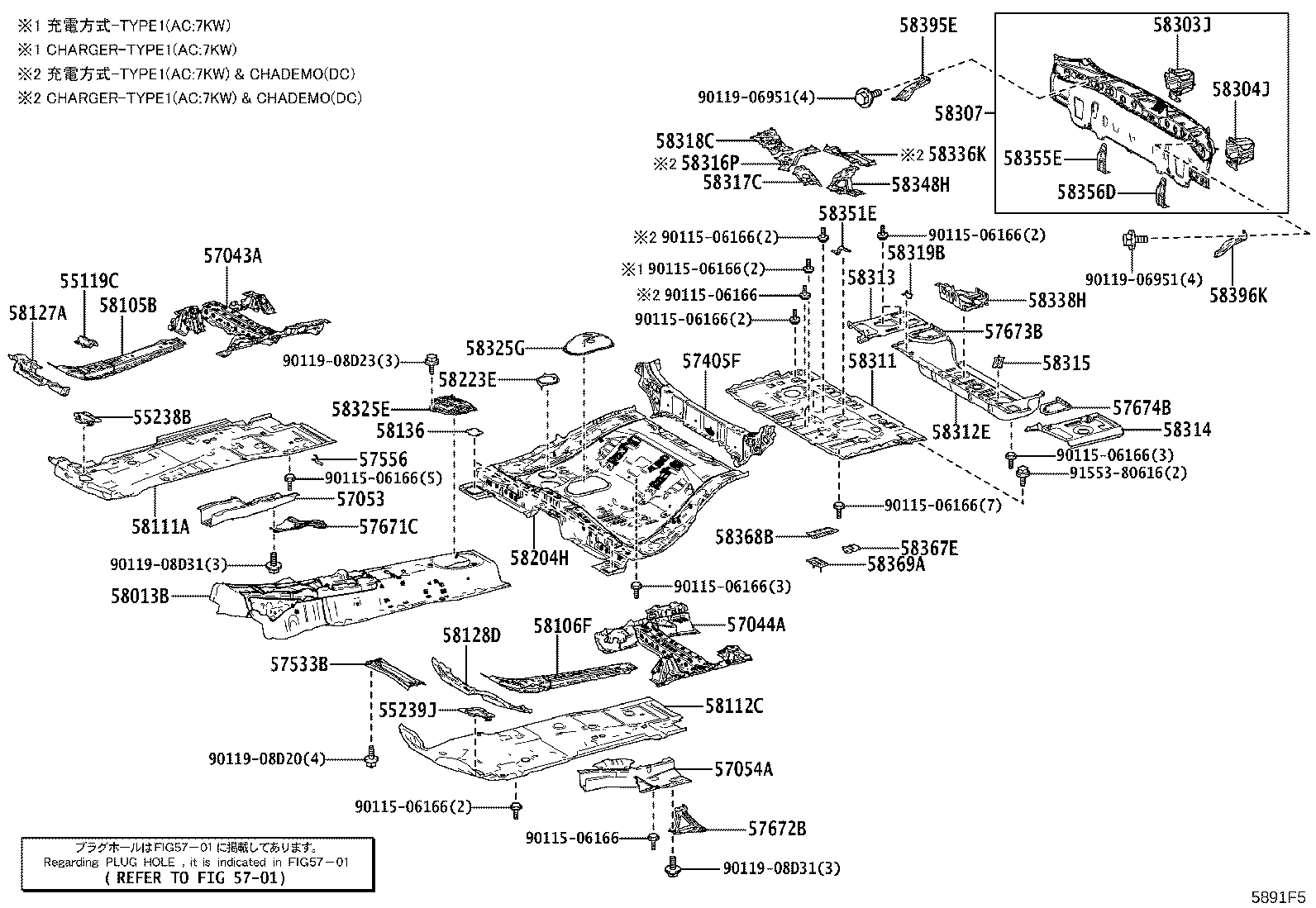

Floor Pan & Lower Back Panel
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55119C | Bracket, Clutch Booster |
| 55238B | Plate, Dash Panel Insulator, Lower RH |
| 55239J | Plate, Dash Panel Insulator, Lower LH |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57062B | Bracket Sub-assy, Fuel Tank Support, LH |
| 57405F | Member Sub-assy, Center Floor Cross, Rear |
| 57533B | Brace, Front Floor, Center |
| 57556 | Reinforcement, Center Floor, NO.6 |
| 57671C | Brace, Rear Floor NO.1 Crossmember, RH |
| 57672B | Brace, Rear Floor NO.1 Crossmember, LH |
| 57673B | Brace, Rear Floor NO.2 Crossmember, RH |
| 57674B | Brace, Rear Floor NO.2 Crossmember, LH |
| 58013B | Panel Sub-assy, Front Floor, Center |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58106F | Bracket Sub-assy, Front Seat Mounting, Outside LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58127A | Reinforce, Front Cross TO Front Panel Member, RH |
| 58128D | Reinforce, Front Cross TO Front Panel Member, LH |
| 58136 | Cover, Front Floor Hole |
| 58204H | Pan Sub-assy, Center Floor, Rear |
| 58223E | Reinforcement, Floor Panel Side, RH |
| 58296G | Bracket, Front Floor Brace Mounting |
| 58303J | Reinforce Sub-assy, Rear Bumper Arm Support, RH |
| 58304J | Reinforce Sub-assy, Rear Bumper Arm Support, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58312E | Panel, Rear Floor, Rear |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58315 | Extension, Rear Floor Panel |
| 58316P | Panel, Floor, FR LH |
| 58317C | Extension, Rear Floor Side Panel, Rear LH |
| 58318C | Bracket, Rear Floor Crossmember |
| 58319B | Bracket, Rear Floor Side Panel |
| 58325E | Cover, Rear Floor Service Hole |
| 58325G | Cover, Rear Floor Service Hole |
| 58336K | Reinforcement, Rear Floor Part Panel, NO.3 |
| 58338H | Reinforcement, Rear Floor Pan, NO.2 RH |
| 58348H | Bracket, Rear Floor Support Stay |
| 58351E | Bracket, Spare Wheel Clamp |
| 58355E | Bracket, Rear Bumper Arm, RH |
| 58356D | Bracket, Rear Bumper Arm, LH |
| 58367E | Bracket, Fuel Tube, NO.1 |
| 58368B | Bracket, Fuel Tube, NO.2 |
| 58369A | Bracket, Fuel Tube, NO.3 |
| 58395E | Gusset, Back Door Opening, Lower RH |
| 58396K | Gusset, Back Door Opening, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
