Toyota Crown Estate

2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 3 illustrations

Illustrations

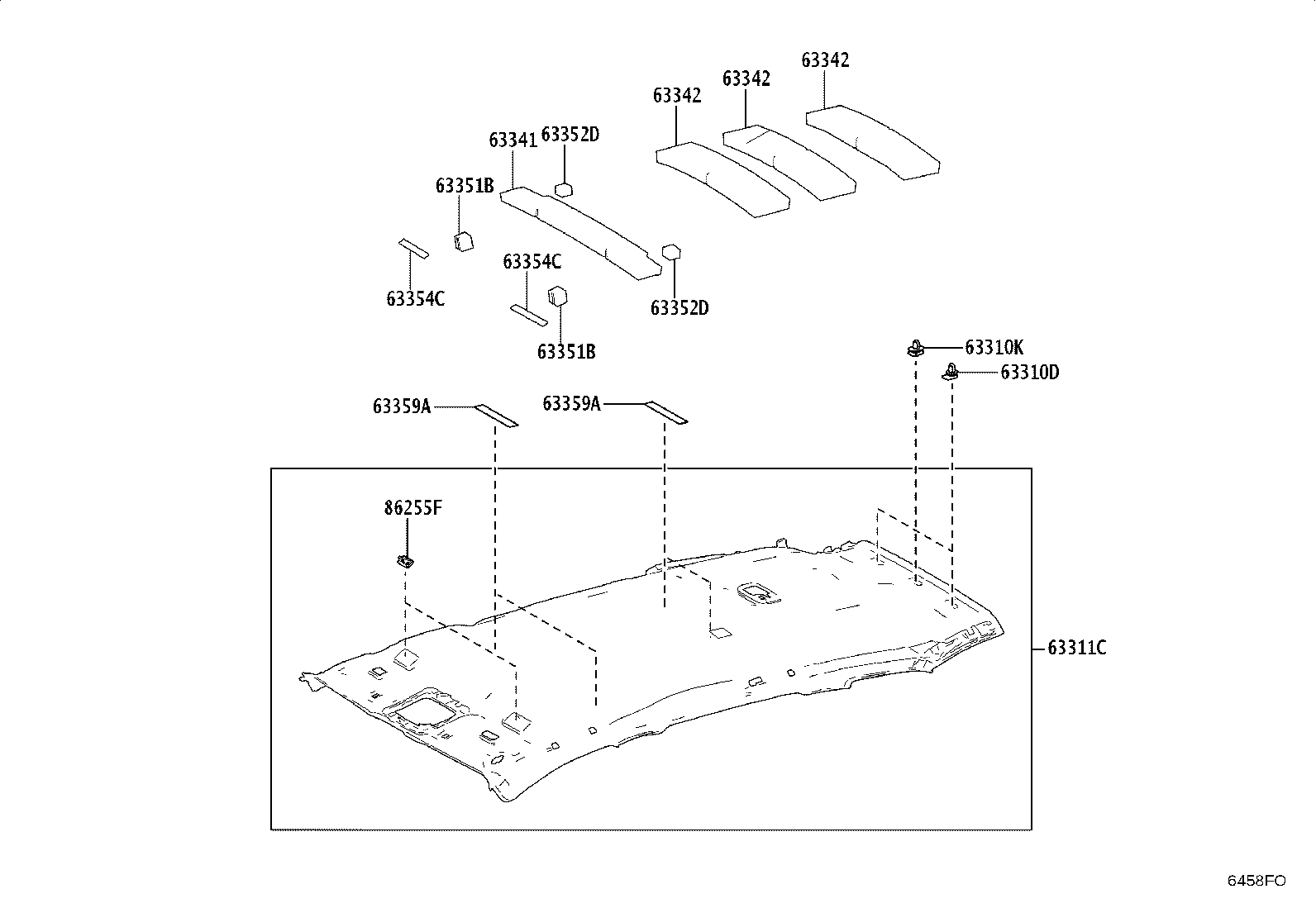

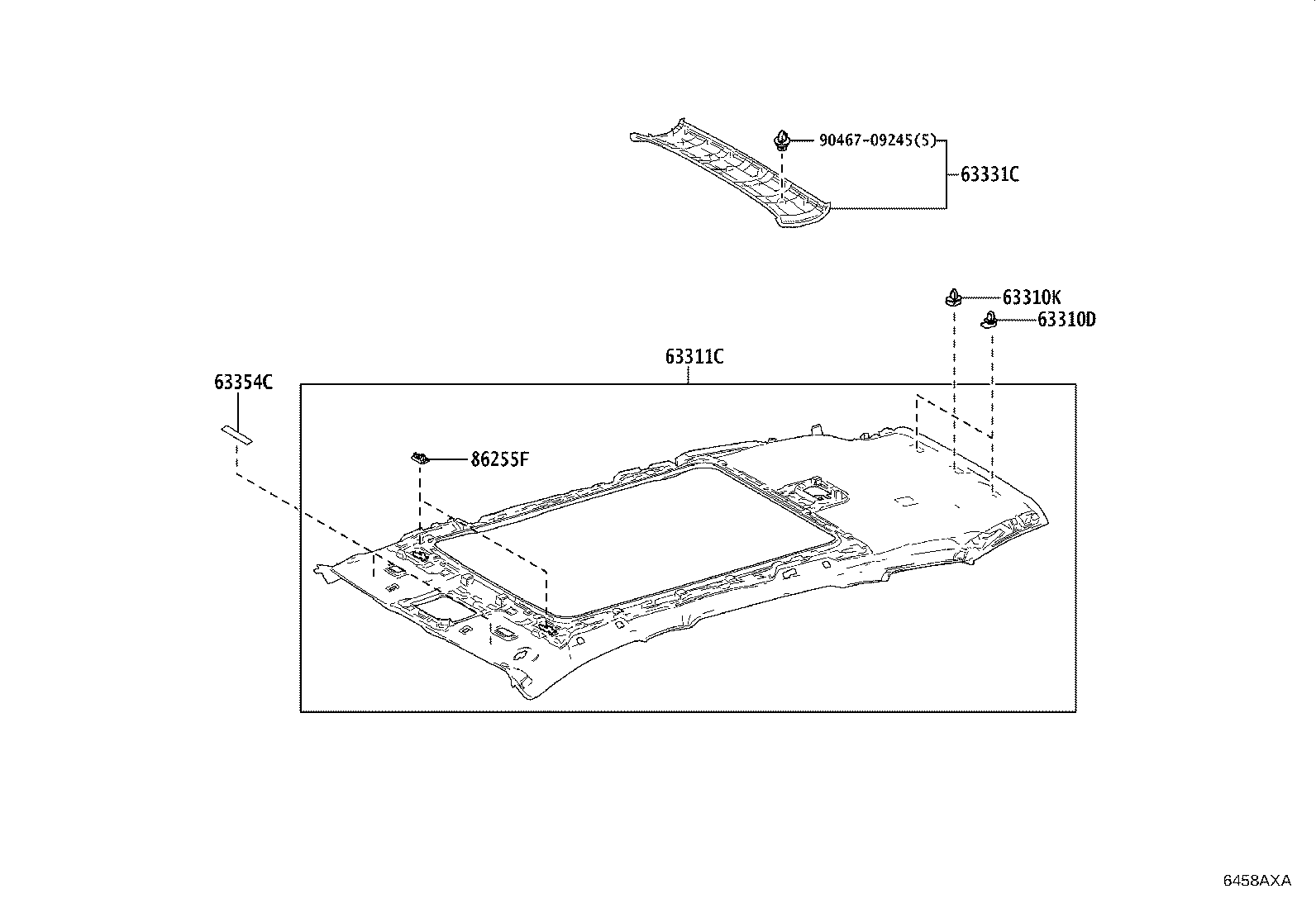

Figure 6458AWA 6458AWA 2024-06 → 2024-09 Figure 6458FO 6458FO 2024-09 → — Figure 6458AXA 6458AXA 2024-06 → —

Part groups

PNCDescription
63310D Clip, Roof Headlining
63310K Clip
63311C Headlining, Roof
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63359A Pad, Roof Silencer, NO.18
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
