Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

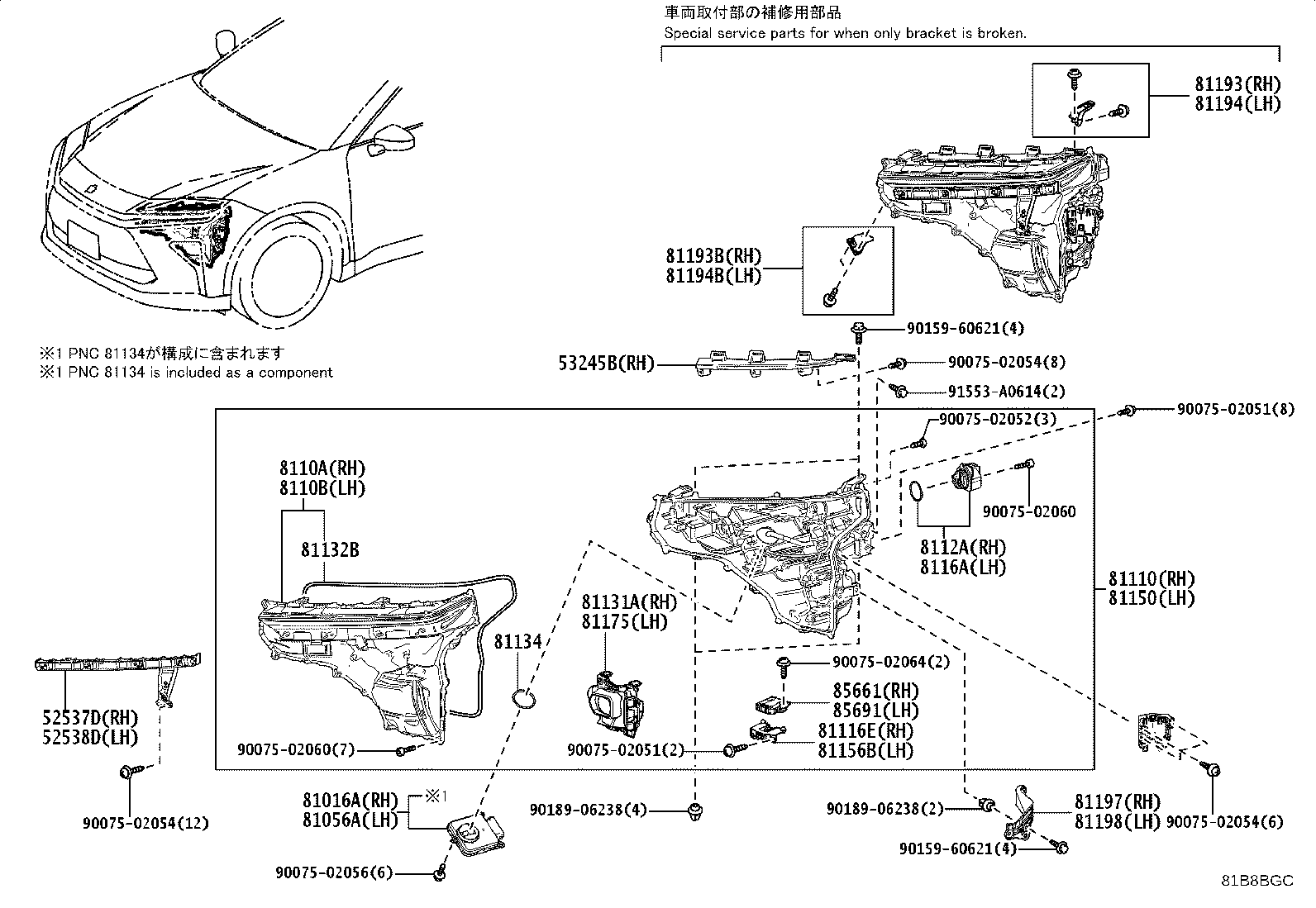

Headlamp
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52537D | Retainer, Front Bumper End, RH |
| 52538D | Retainer, Front Bumper End, LH |
| 53245B | Bracket, Headlamp, RH |
| 53246B | Bracket, Headlamp, LH |
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81116E | Bracket, Headlamp, RH NO.2 |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81150 | Headlamp Assy, LH |
| 81156B | Bracket, Headlamp, LH NO.2 |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81197 | Bracket, Headlamp, Lower RH |
| 81198 | Bracket, Headlamp, Lwr LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
