Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07

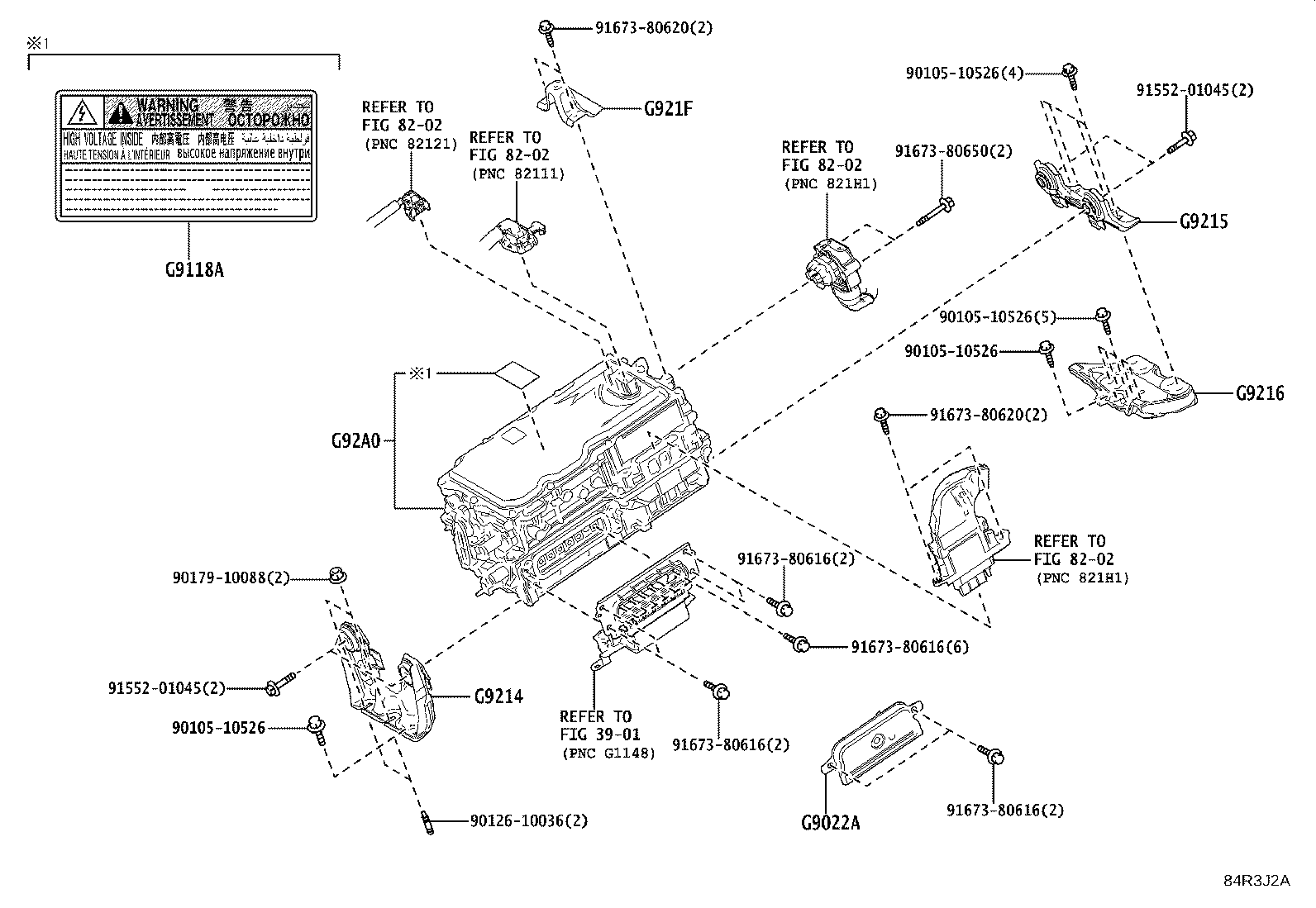

Hev Inverter
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

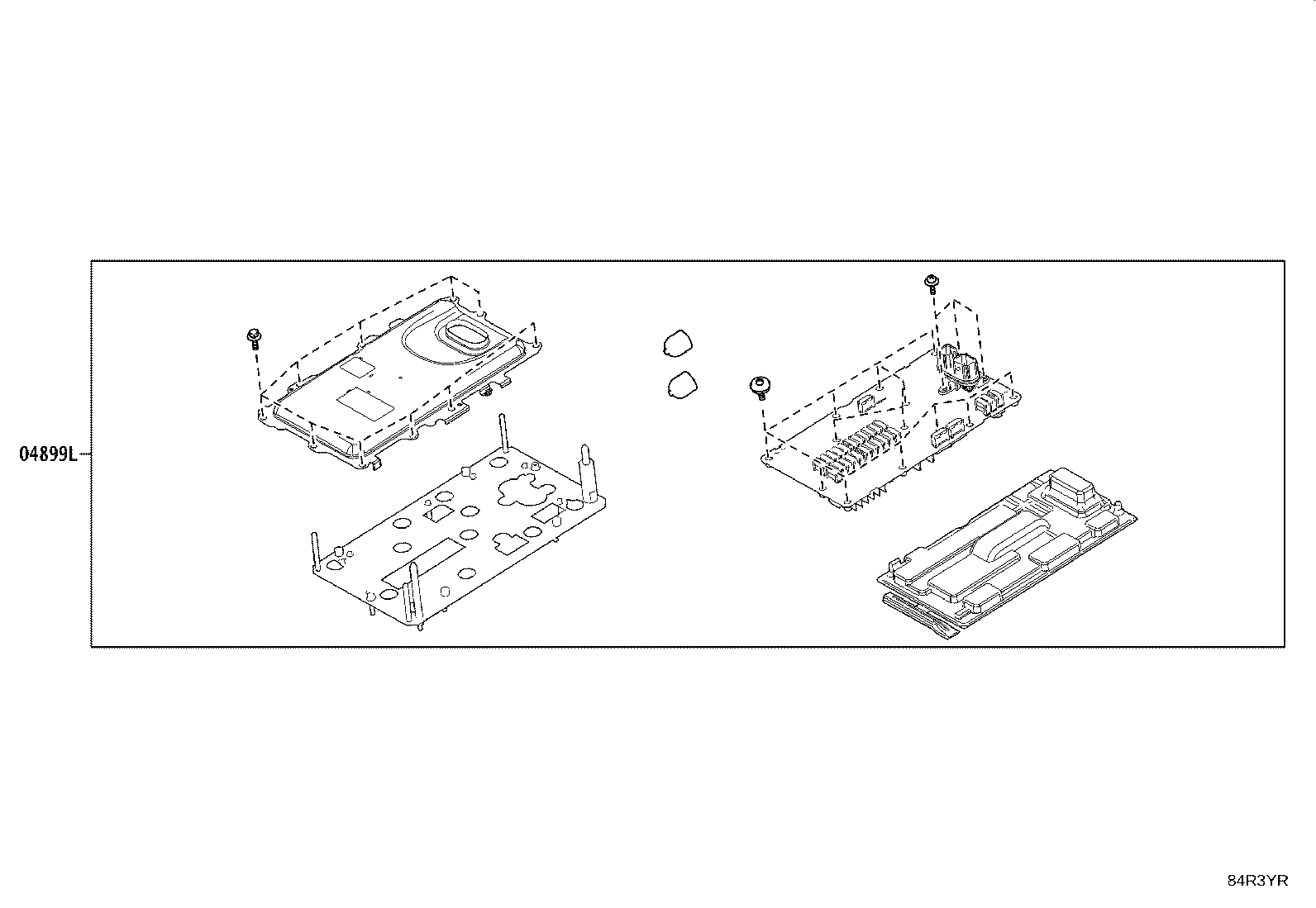

| 04899L | Computer Kit, Motor Generator Control |
| G9022A | Cover Sub-assy, Inverter, Upper |
| G9118A | Label, HV Motor Control Inverter Caution |
| G9200 | Inverter Assy, W/Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G921F | Protector, Inverter, NO.2 |
| G92A0 | Inverter Assy, Hybrid Motor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
