Toyota Crown Estate

2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 3 illustrations

Illustrations

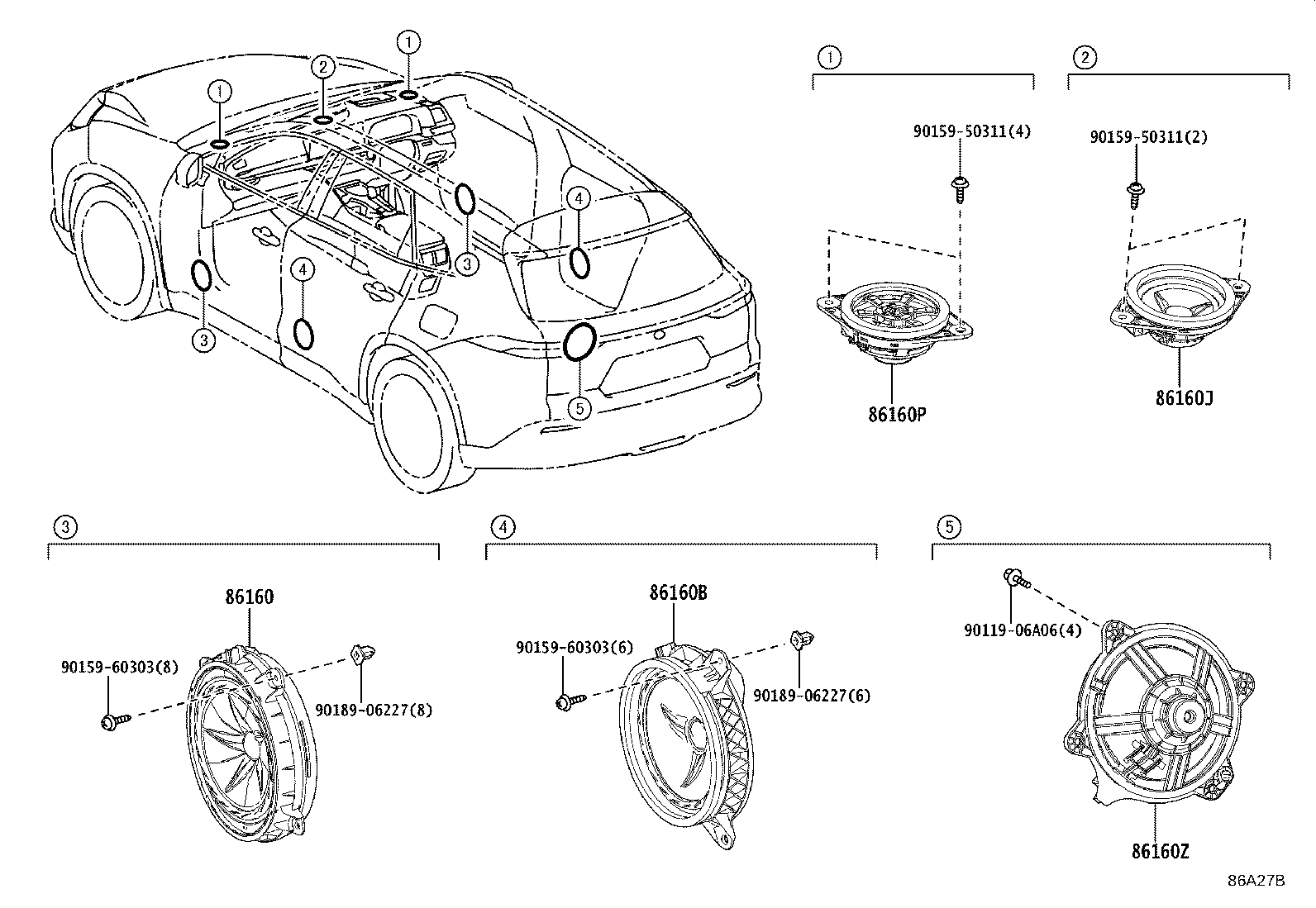

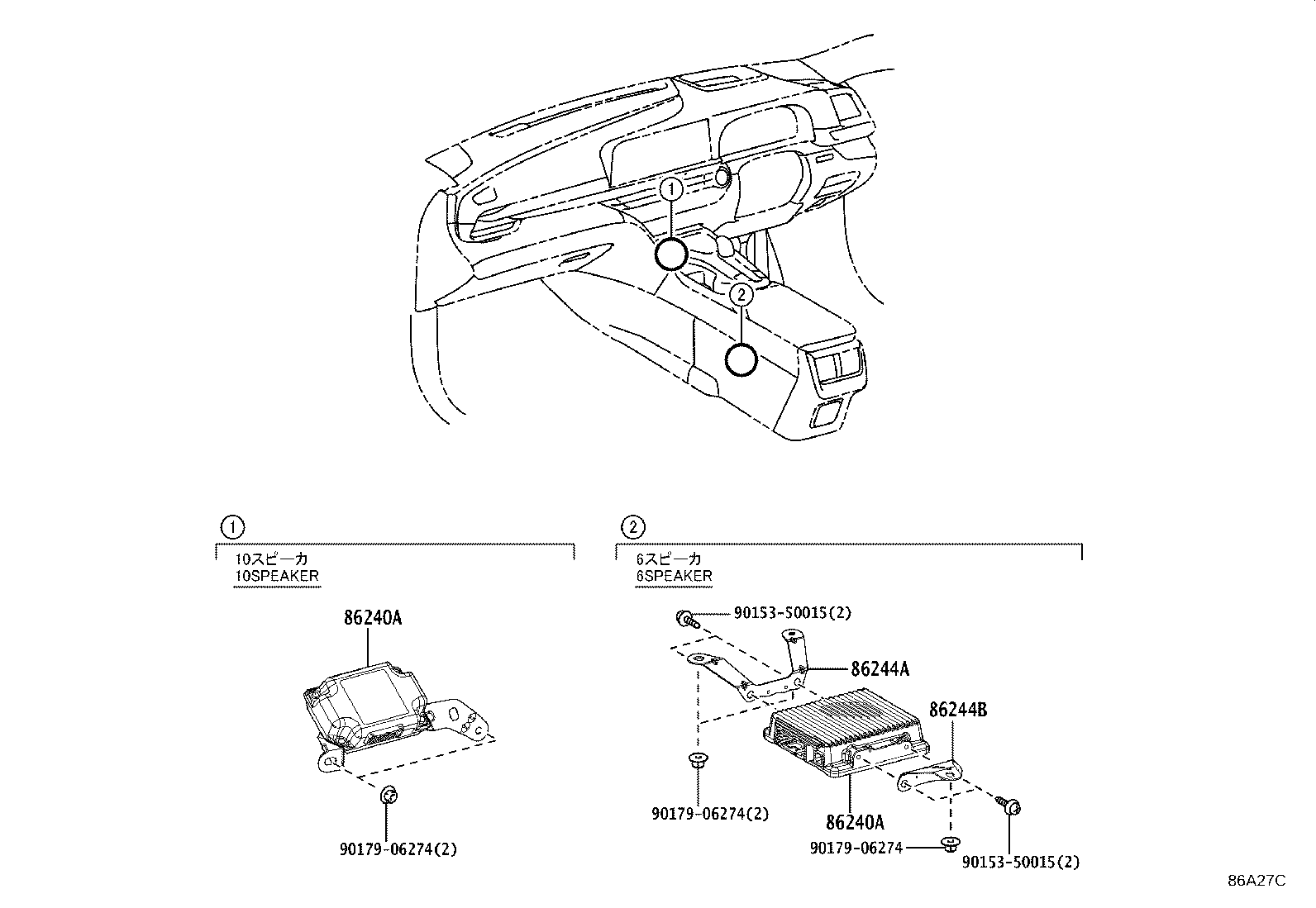

Figure 86A27A 86A27A 2024-06 → — Figure 86A27B 86A27B 2024-06 → — Figure 86A27C 86A27C 2024-06 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
