Toyota Crown Estate
2024-06 → present · chassis AZSH3# · catalogue 33C110 · Japan
Supported model
Data version 2024-07
Heating & Air Conditioning - Water Piping

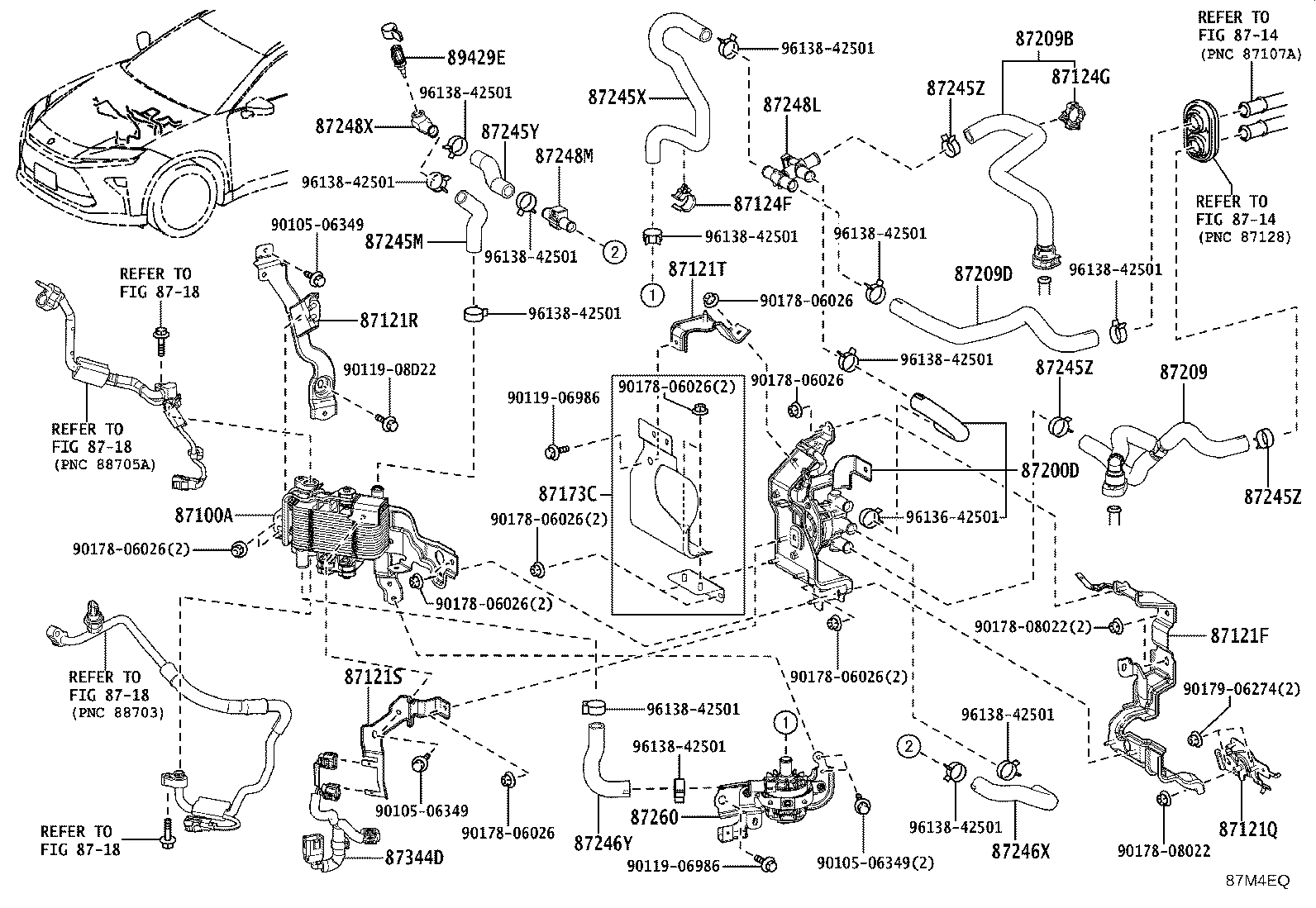

28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87100A | Heater & Accessory Assy |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87121R | Bracket, Heater NO.3 |
| 87121S | Bracket, Heater NO.4 |
| 87121T | Bracket, Heater NO.5 |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87173C | Protector, Heater |
| 87200D | Accessory Assy, Heater |
| 87209 | Hose Sub-assy, Water |
| 87209B | Hose Sub-assy, Water, B |
| 87209D | Hose Sub-assy, Water, D |
| 87245 | Hose, Heater Water, Inlet |
| 87245M | Hose, Heater Water, M |
| 87245X | Hose, Heater Water |
| 87245Y | Hose, Heater Water |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246 | Hose, Heater Water, Outlet |
| 87246H | Clip OR Clamp(FOR HEATER WATER HOSE) |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87248L | Pipe, Heater Water, L |
| 87248M | Pipe, Heater Water, M |
| 87248X | Pipe, Heater Water |
| 87260 | Pump Assy, Heater |
| 87344D | Wiring, Heater |
| 89429E | Sensor, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
