Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

9 part groups · 3 illustrations

Illustrations

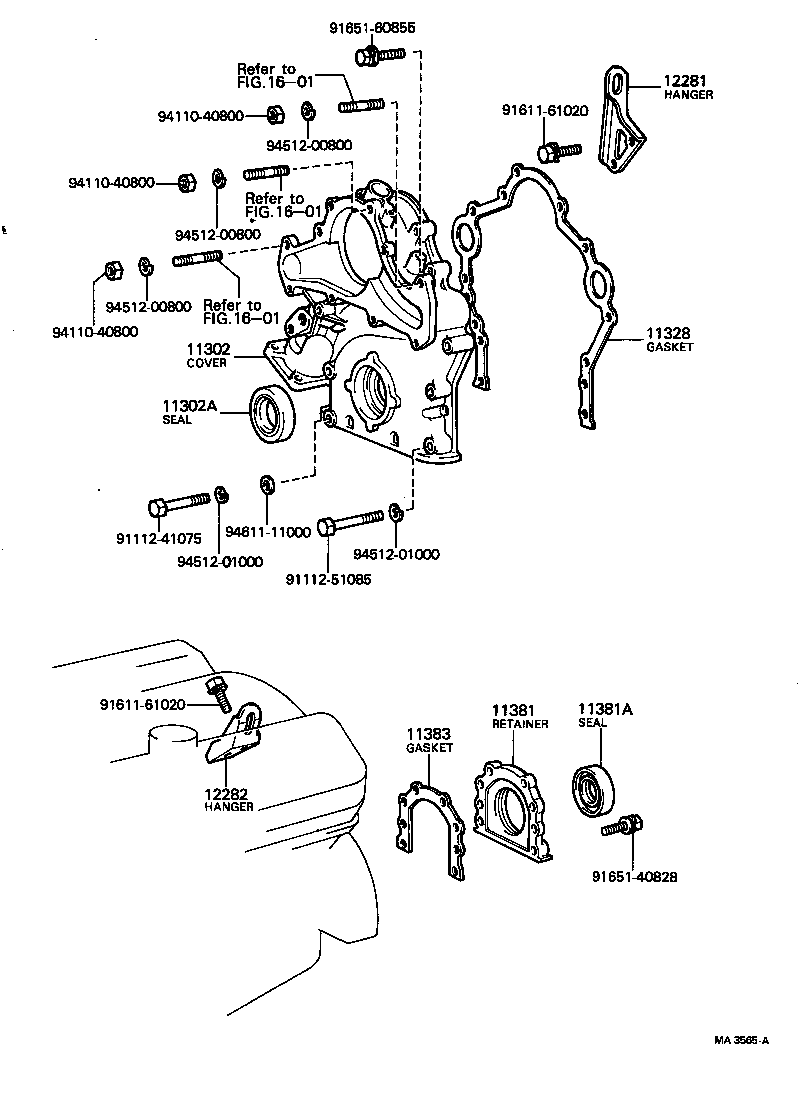

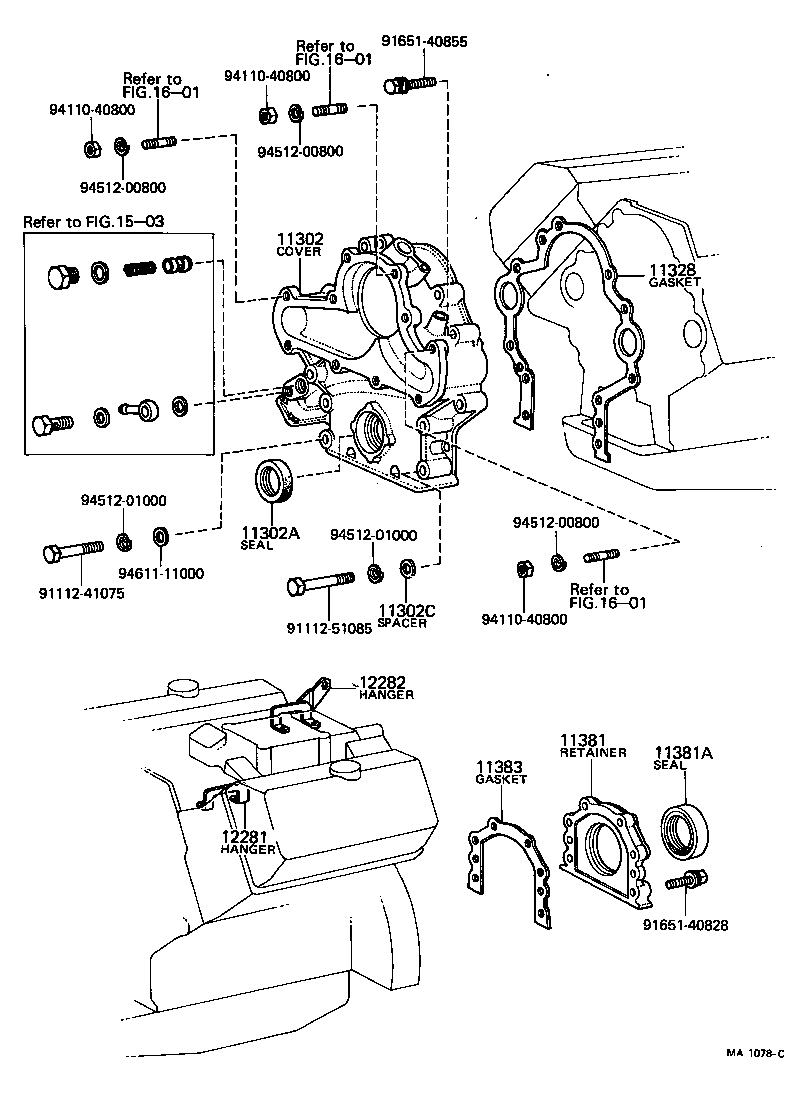

Figure MA0050B MA0050B 1967-11 → 1973-02 Figure MA1078C MA1078C 1973-03 → 1978-11 Figure MA3565A MA3565A 1978-11 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302C Spacer(FOR TIMING GEAR COVER)
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
