Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 3 illustrations

Illustrations

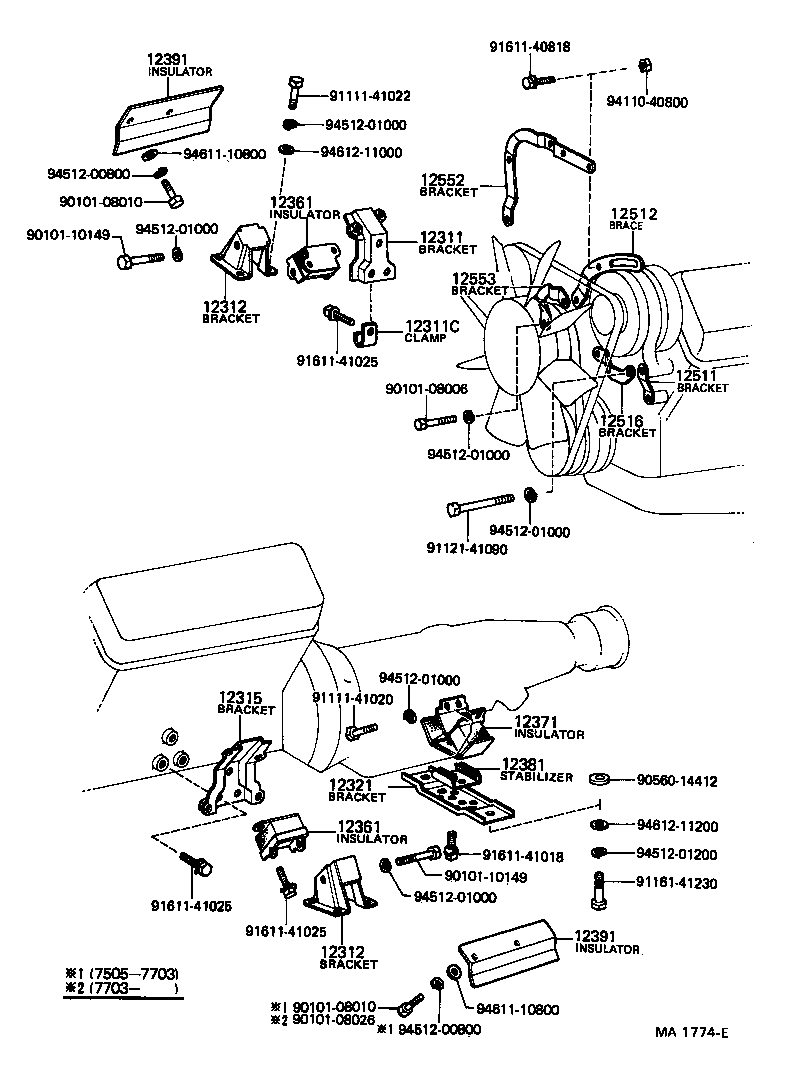

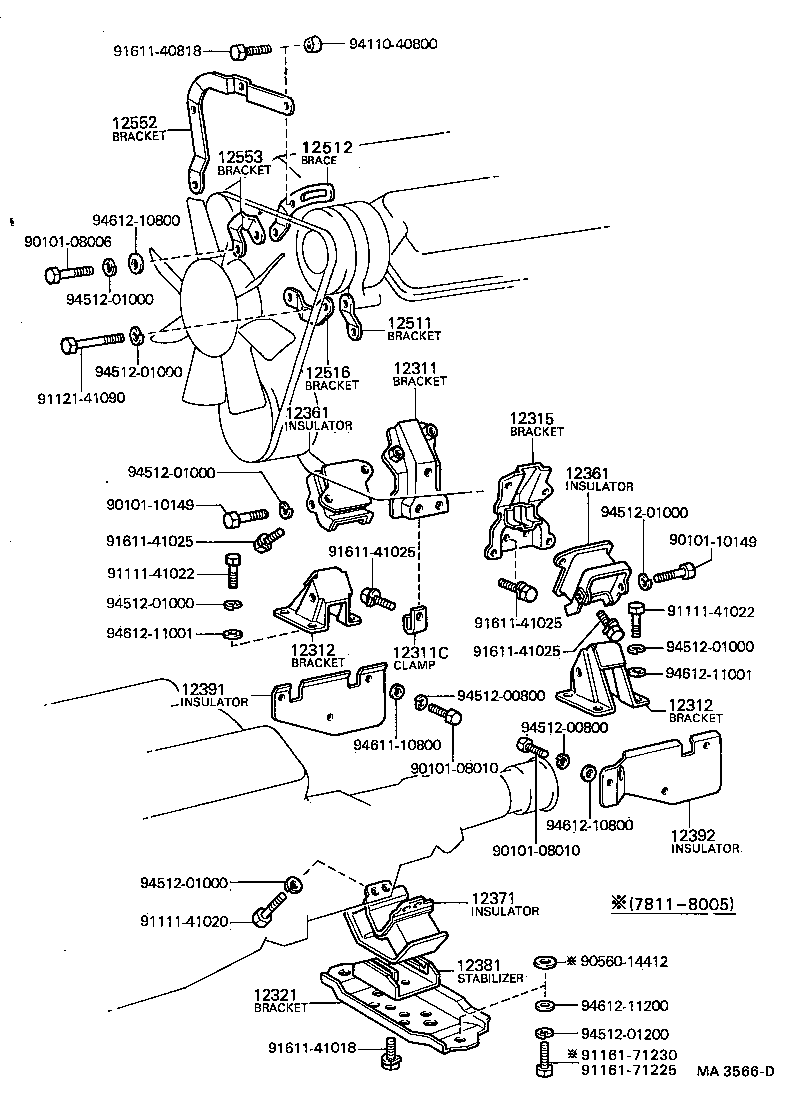

Figure MA0557D MA0557D 1967-11 → 1975-05 Figure MA1774E MA1774E 1975-05 → 1978-11 Figure MA3566D MA3566D 1978-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311C Clamp(FOR ENGINE MOUTING BRACKET)
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12512 Brace, Alternator
12516 Bracket, Alternator, NO.2
12551 Bracket, Vacuum Pump, NO.1
12552 Bracket, Vacuum Pump, NO.2
12553 Bracket, Vacuum Pump, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
