Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

28 part groups · 2 illustrations

Illustrations

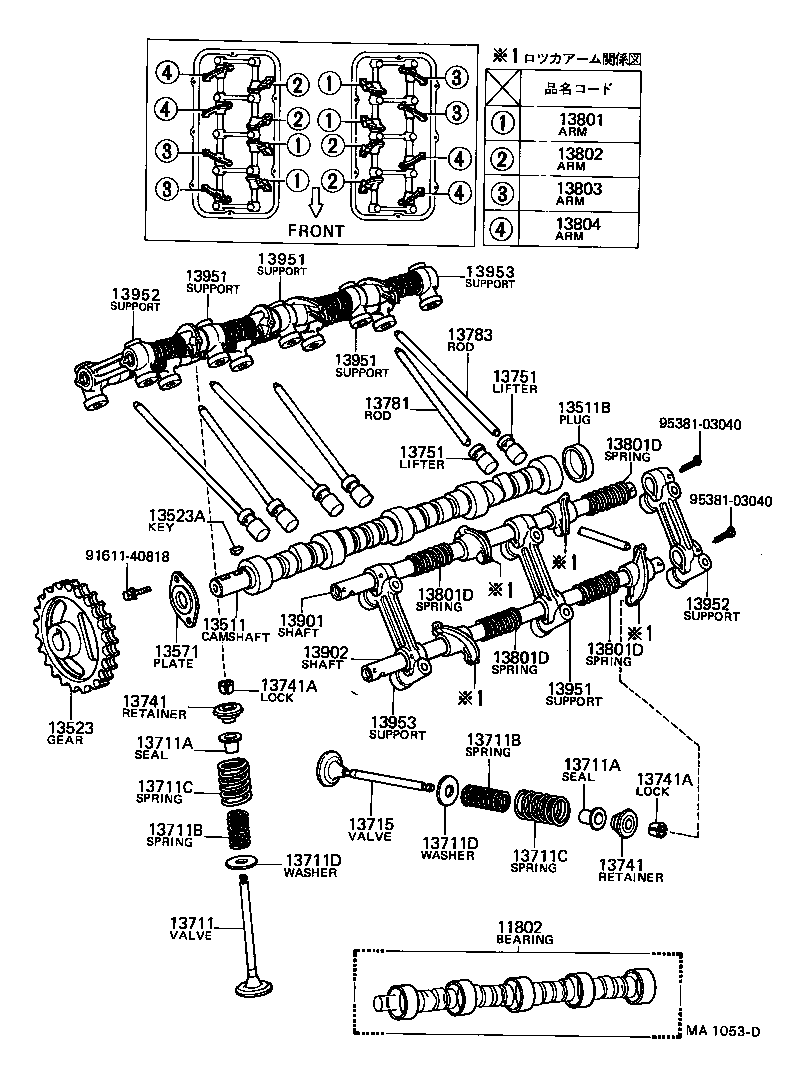

Figure MA0070D MA0070D 1967-11 → 1970-02 Figure MA1053D MA1053D 1970-02 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13571 Plate, Camshaft Thrust
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13729 Shield, Valve Stem Oil
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13781 Rod, Valve Push
13783 Rod, Valve Push, NO.2
13801 Arm Sub-assy, Valve Rocker, NO.1
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13803 Arm Sub-assy, Valve Rocker, NO.3
13804 Arm Sub-assy, Valye Rocker, NO.4
13901 Shaft Sub-assy, Valve Rocker, NO.1
13902 Shaft Sub-assy, Valve Rocker, NO.2
13951 Support, Valve Rocker, NO.1
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
