Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

29 part groups · 5 illustrations

Illustrations

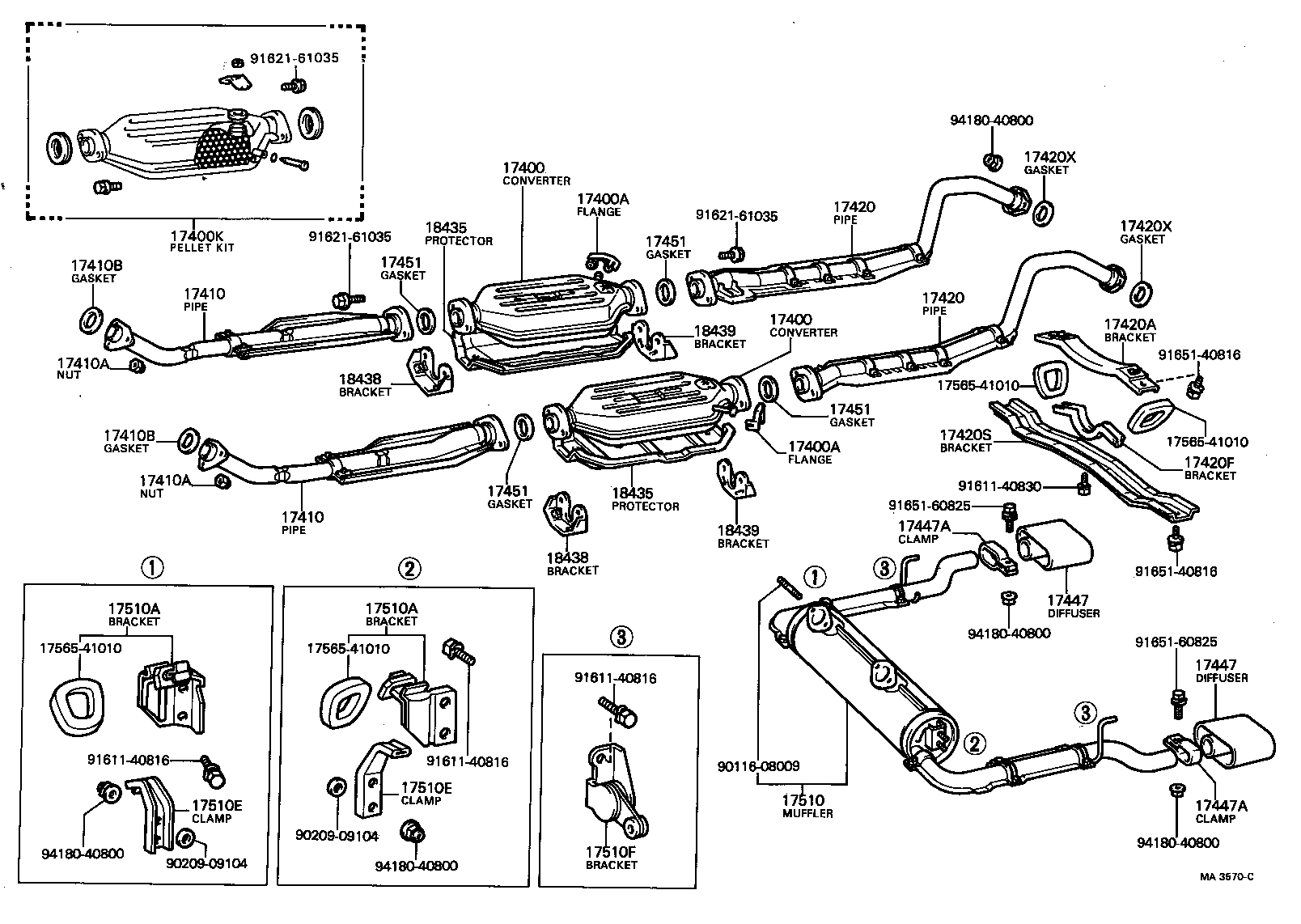

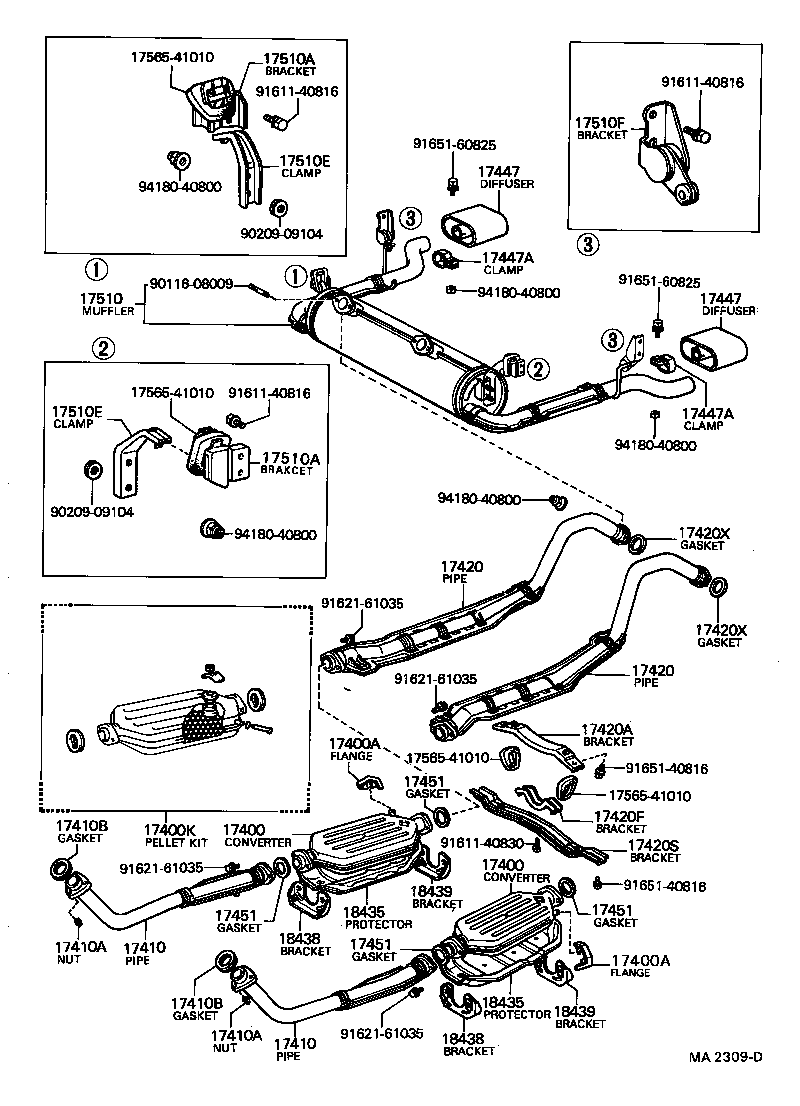

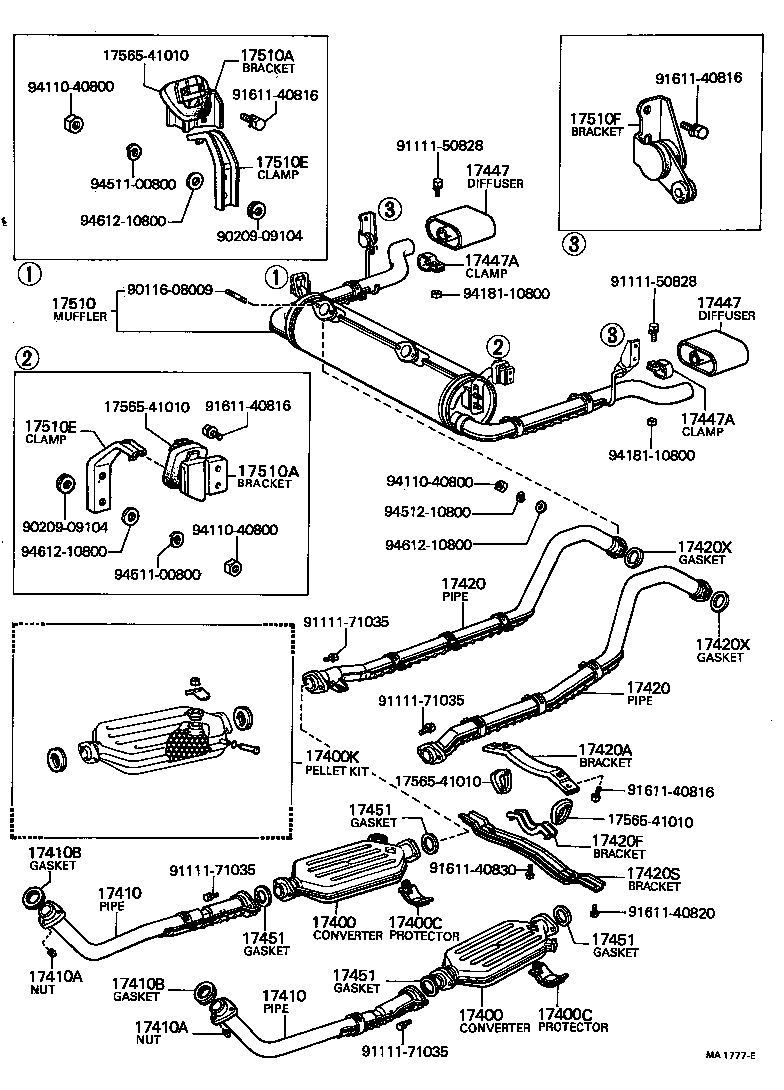

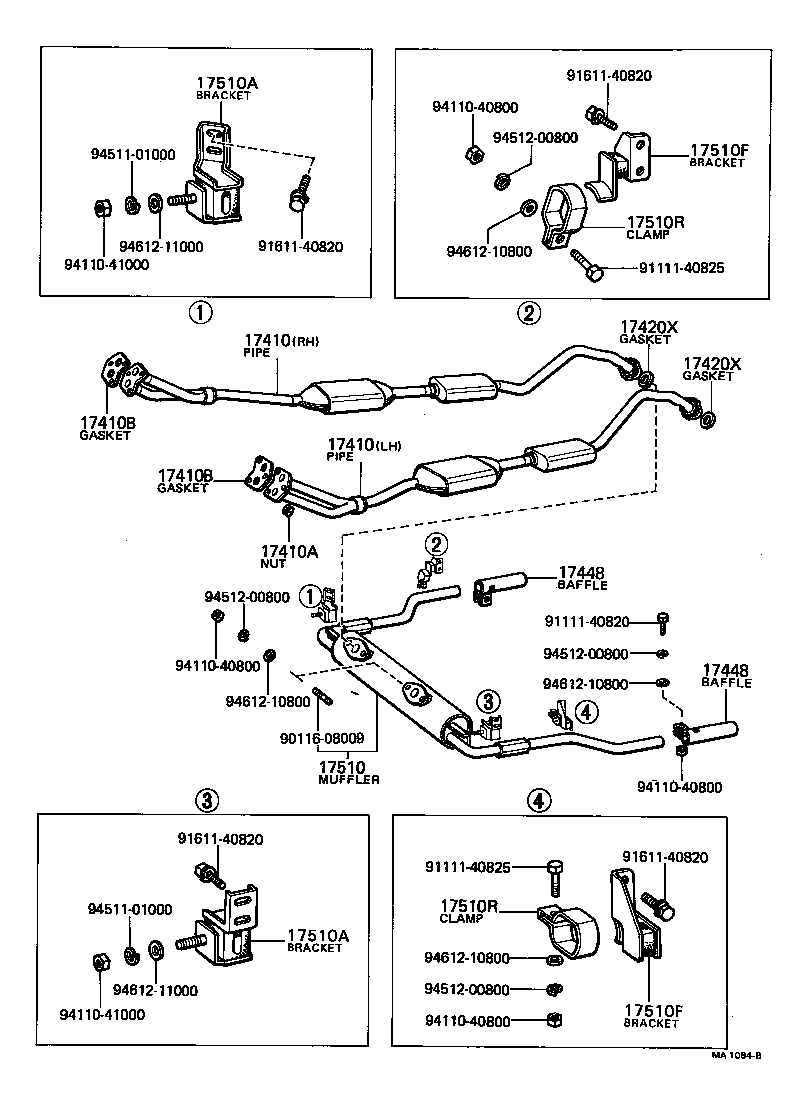

Figure MA0144E MA0144E 1967-11 → 1973-02 Figure MA1084B MA1084B 1973-03 → 1975-05 Figure MA1777E MA1777E 1975-05 → 1976-01 Figure MA2309D MA2309D 1976-01 → 1978-11 Figure MA3570C MA3570C 1978-11 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17400C Protector Sub-assy, Converter, Rear
17400F Plate, Catalyzer Inlet Plug Lock
17400G Gasket, Catalyzer Inlet
17400H Plug, W/Head Straight Screw(FOR CATALYZER INLET)
17400J Guide, Catalytic Converter Sensor
17400K Pellet Kit
17400P Gasket(FOR CATALYTIC CONVERTER SENSOR GUIDE)
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17447 Diffuser, Exhaust Gas
17447A Clamp(FOR EXHAUST GAS DIFFUSER SETTING)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17510 Muffler Assy
17510A Bracket, Muffler, Front
17510E Clamp NO.2, Muffler, Front
17510F Bracket, Muffler, Rear
17510R Clamp NO.2, Muffler, Rear
18435 Protector, Catalytic Converter
18438 Bracket, Connector Protector, Front
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
