Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 3 illustrations

Illustrations

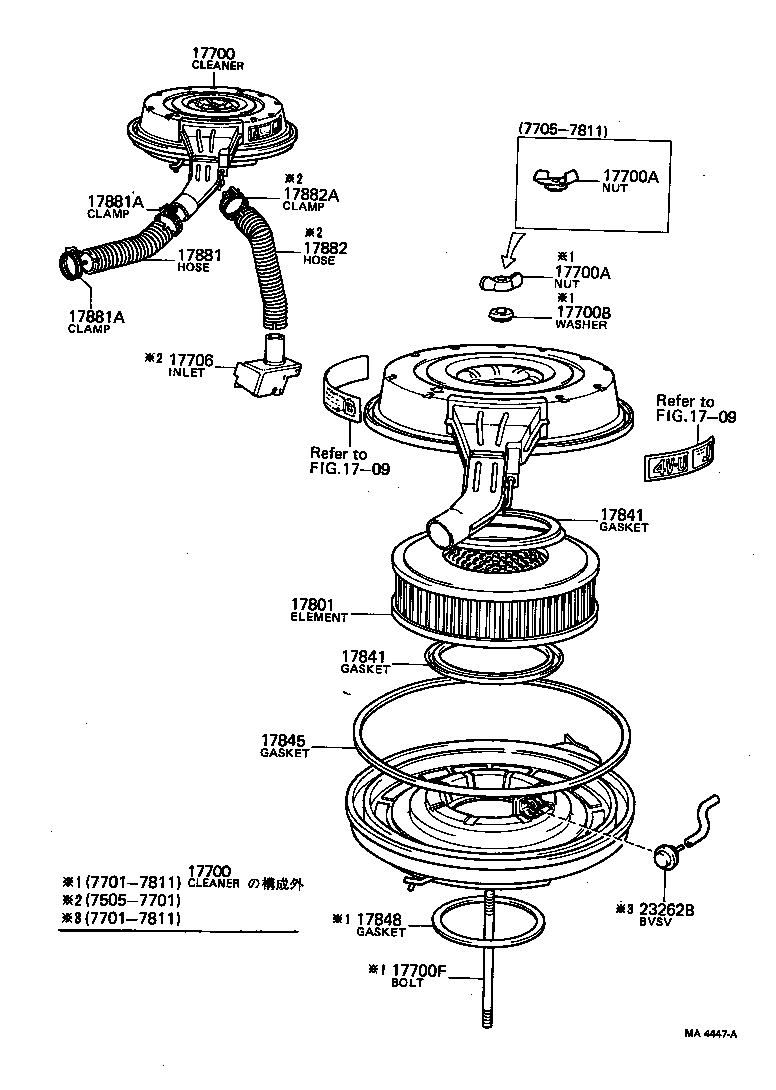

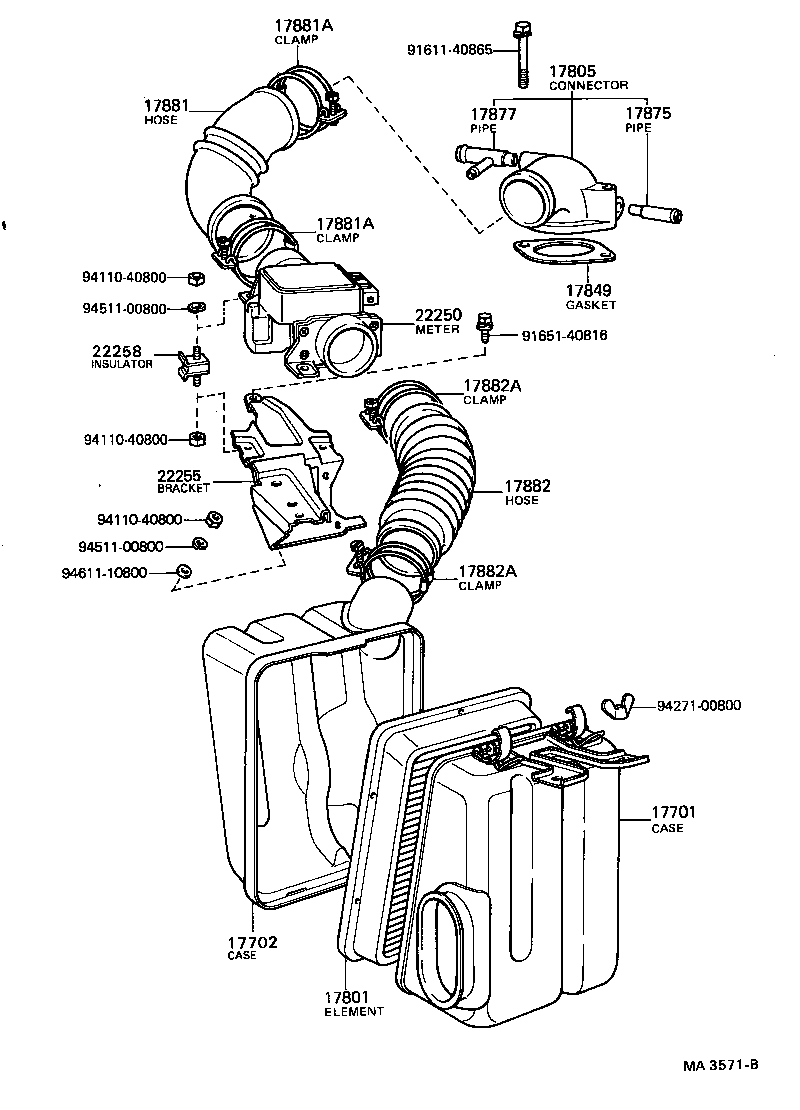

Figure MA0158E MA0158E 1967-11 → 1972-09 Figure MA4447A MA4447A 1972-09 → 1978-11 Figure MA3571B MA3571B 1978-11 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17702 Case Sub-assy, Air Cleaner, NO.2
17706 Inlet Sub-assy, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17875 Pipe, Intake Air Connector
17877 Pipe, Intake Air Connector, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22258 Insulator, Air Flow Meter Mounting
23262B Valve, Bimetal Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
