Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

22 part groups · 3 illustrations

Illustrations

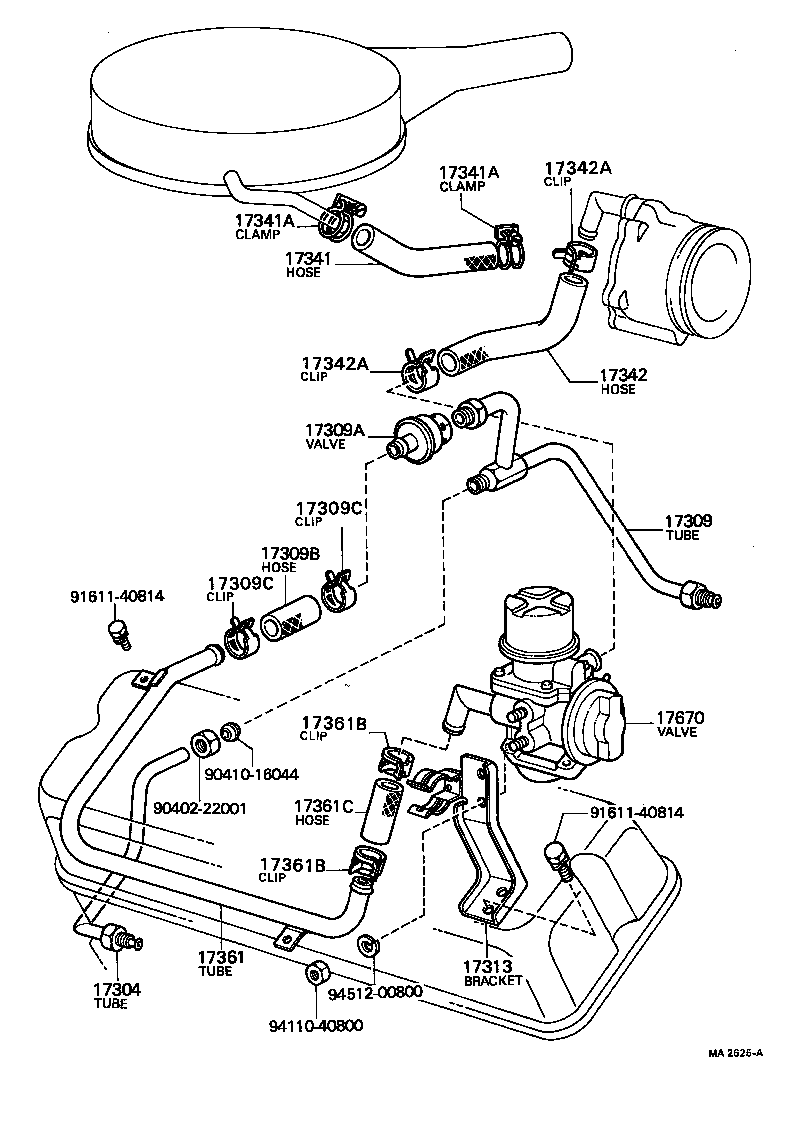

Figure MA1779E MA1779E 1975-05 → 1977-01 Figure MA2625A MA2625A 1977-01 → 1978-11 Figure MA3572 MA3572 1978-11 → —

Part groups

PNCDescription
17304 Tube Sub-assy, Air, RH
17309 Tube Sub-assy, Air, LH
17309A Valve, Check
17309B Hose(FOR CHECK VALVE)
17309C Clamp(FOR CHECK VALVE)
17313 Bracket, Air By-pass Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17361 Tube, Air
17361B Clamp OR Clip(FOR AIR TUBE HOSE)
17361C Hose(FOR AIR TUBE)
17670 Valve Assy, Air By-pass
25710 Valve Assy, Air Switching
25710A Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
25710E Clip
25716 Bracket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
