Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 5 illustrations

Illustrations

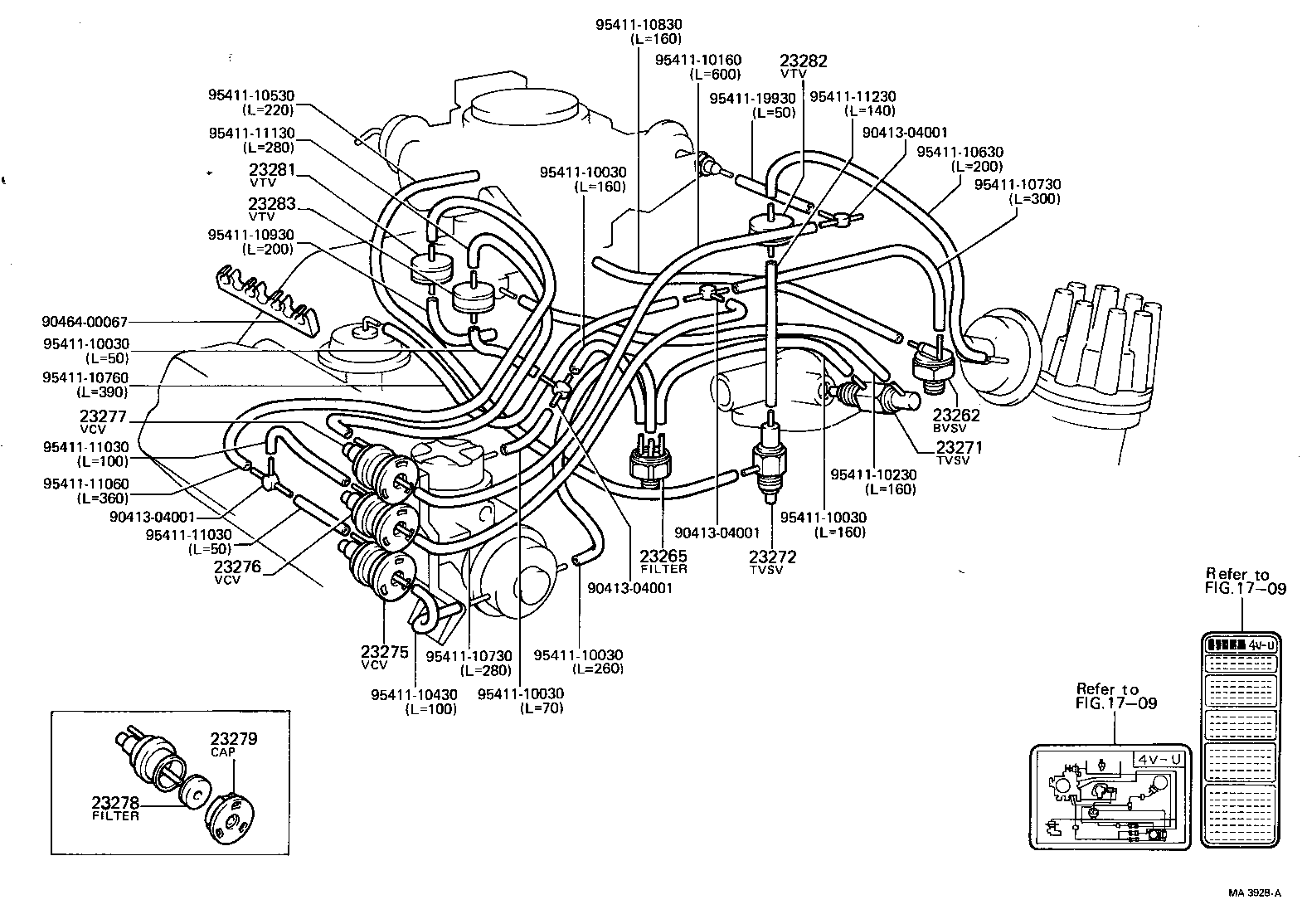

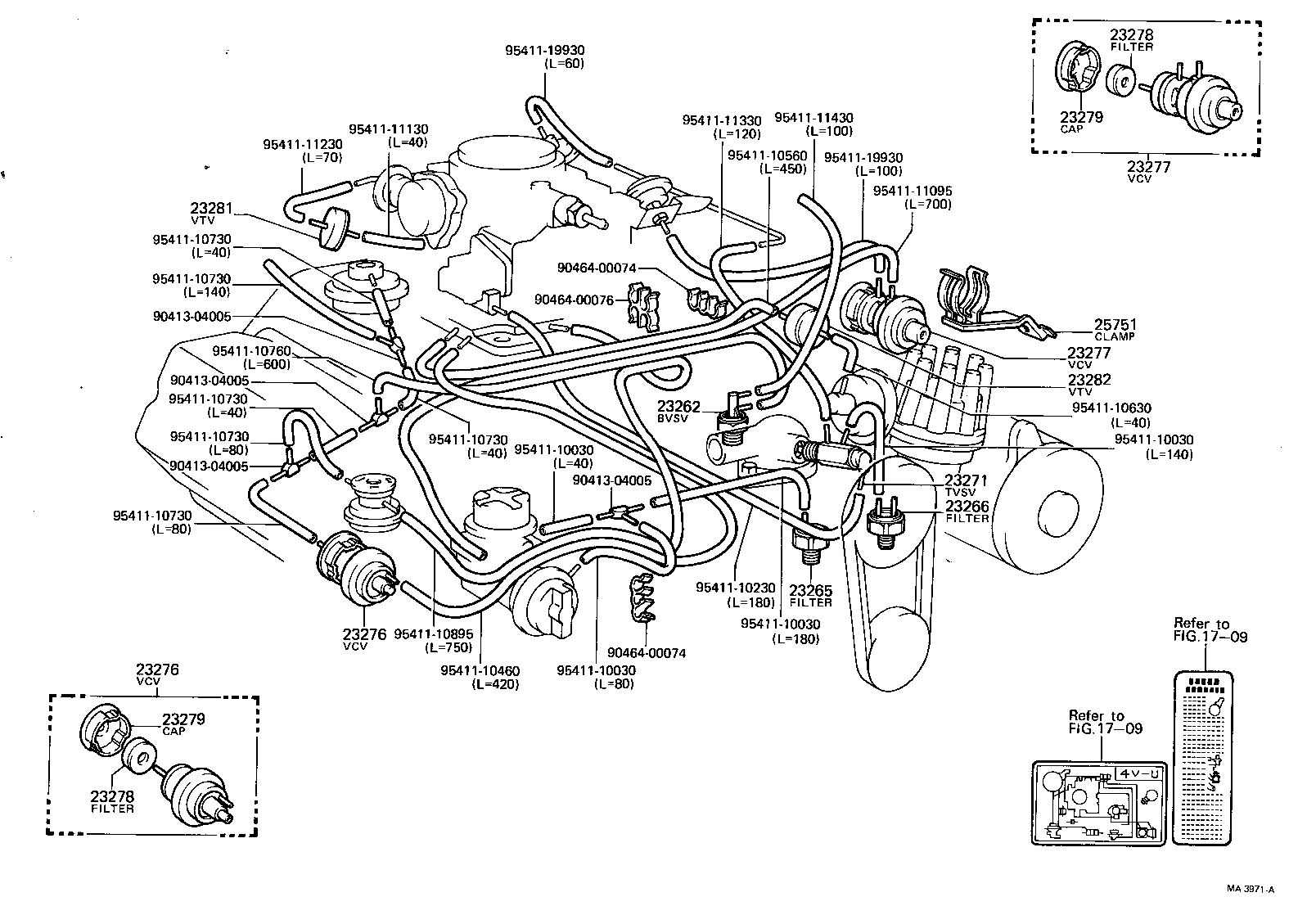

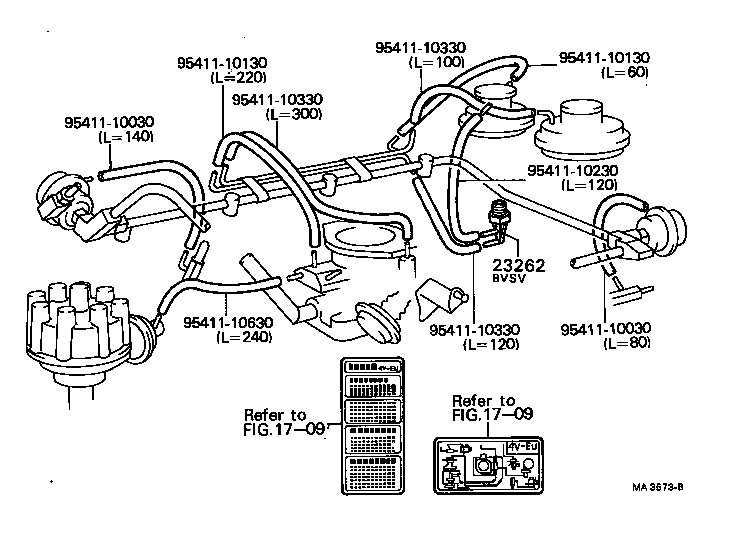

Figure MA9500 MA9500 1967-11 → — Figure MA4445A MA4445A 1967-11 → 1975-05 Figure MA3928A MA3928A 1975-05 → 1977-01 Figure MA3971A MA3971A 1977-01 → 1978-11 Figure MA3573B MA3573B 1978-11 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23278 Filter(FOR VACUUM CONTROL VALVE)
23279 Cap(FOR VACUUM CONTROL VALVE)
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
25751 Clamp, Vacuum Control Valve, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
