Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

23 part groups · 2 illustrations

Illustrations

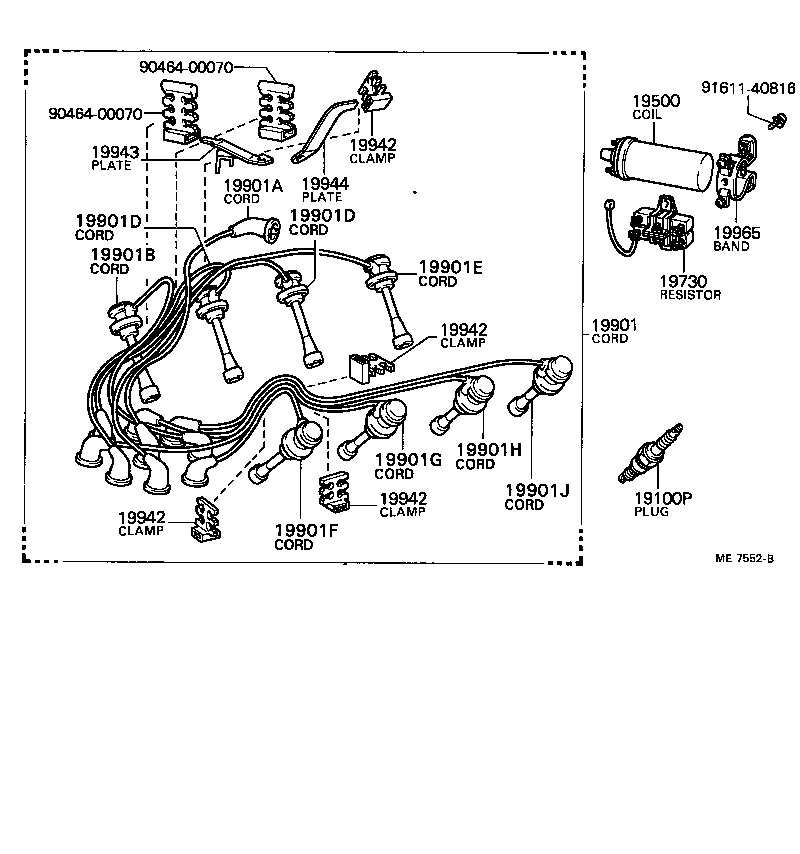

Figure ME8527A ME8527A 1967-11 → 1978-11 Figure ME7552B ME7552B 1978-11 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19710 Amplifier Assy, Ignition
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19901H Cord, Spark Plug Resistive, NO.7
19901J Cord, Spark Plug Resistive, NO.8
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19944 Plate, Resistive Cord Clamp Support, NO.2
19945 Plate, Resistive Cord Clamp Support, NO.3
19965 Band, Ignition Coil, NO.1
19965B Clamp(FOR IGNITION COIL WIRE)
19965C Bolt Stud(FOR IGNITION COIL BAND)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
