Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

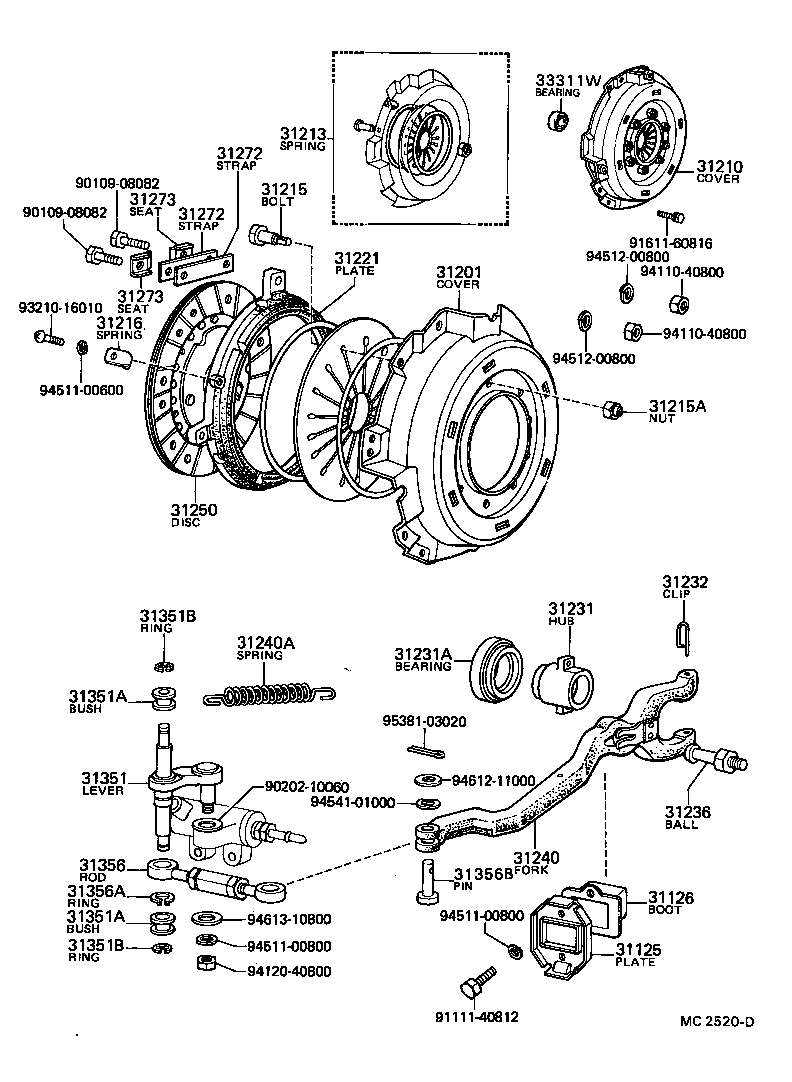

Clutch & Release Fork
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31125 | Plate, Release Fork Boot |
| 31126 | Boot, Clutch Release Fork |
| 31201 | Cover Sub-assy, Clutch |
| 31210 | Cover Assy, Clutch |
| 31213 | Spring, Clutch Diaphragm |
| 31214 | Ring, Clutch Pivot |
| 31215 | Bolt, Clutch Diaphragm Spring Set |
| 31215A | Nut(FOR CLUTCH DIAPHRAGM SPRING SETTING BOLT) |
| 31216 | Spring, Clutch Retracting |
| 31221 | Plate, Clutch Pressure |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31236 | Ball, Release Fork |
| 31240 | Fork Assy, Clutch Release |
| 31240A | Spring, Tension(FOR CLUTCH RELEASE FORK RETURN) |
| 31250 | Disc Assy, Clutch |
| 31272 | Strap, Clutch |
| 31273 | Seat, Clutch Strap(FOR CLUTCH COVER SIDE) |
| 31351 | Lever, Over Center |
| 31351A | Bush(FOR OVER CENTER LEVER) |
| 31351B | Ring, E(FOR OVER CENTER LEVER) |
| 31351C | Washer(FOR OVER CENTER LEVER) |
| 31356 | Rod, Over Center Adjusting |
| 31356A | Ring, Snap(FOR OVER CENTER ADJUSTING ROD) |
| 31356B | Pin, W/Hole(FOR OVER CENTER ADJUSTING ROD) |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
