Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

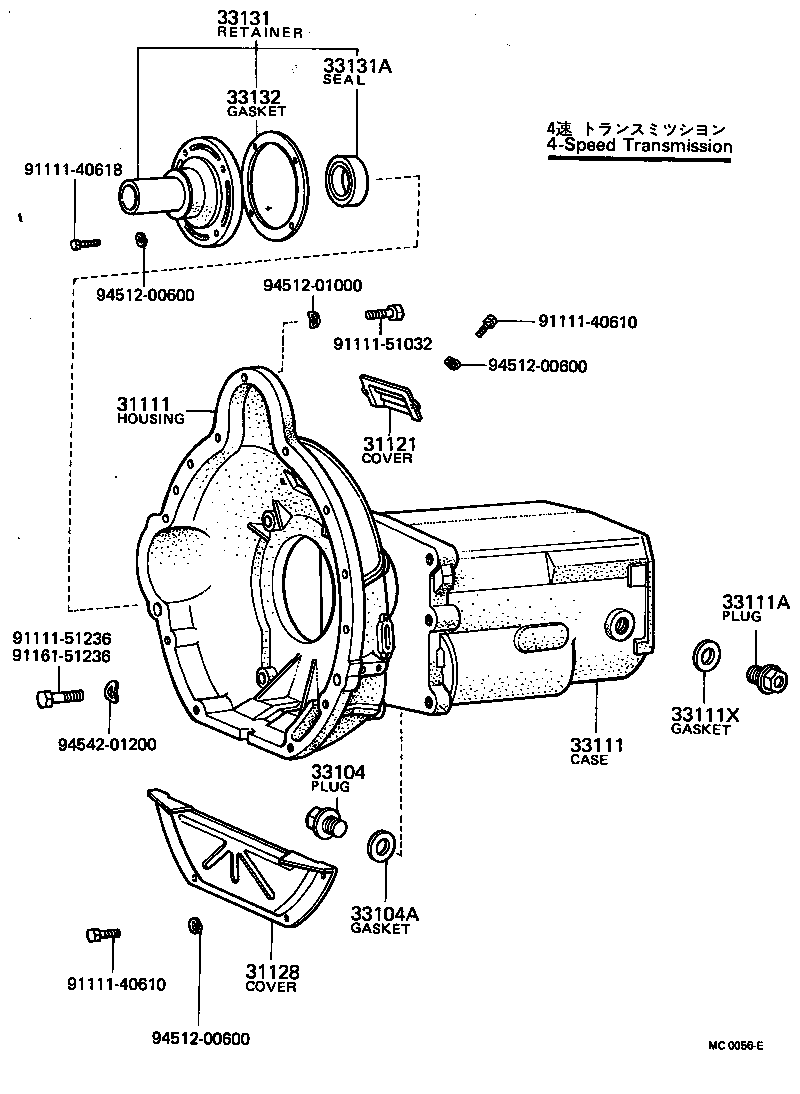

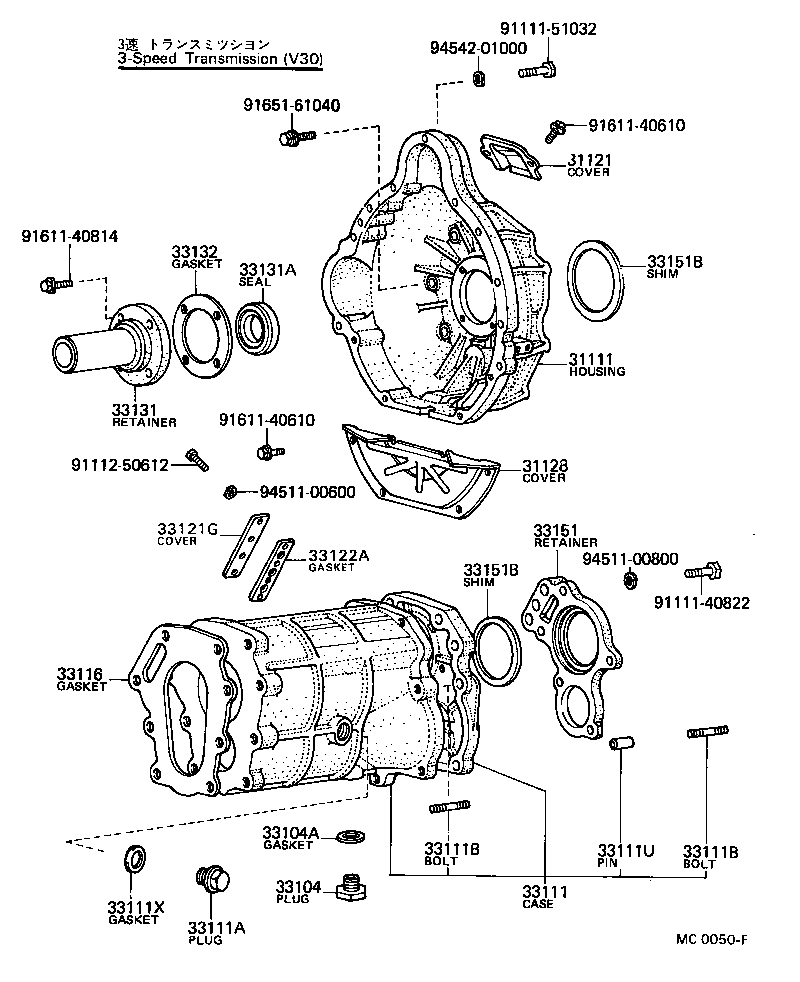

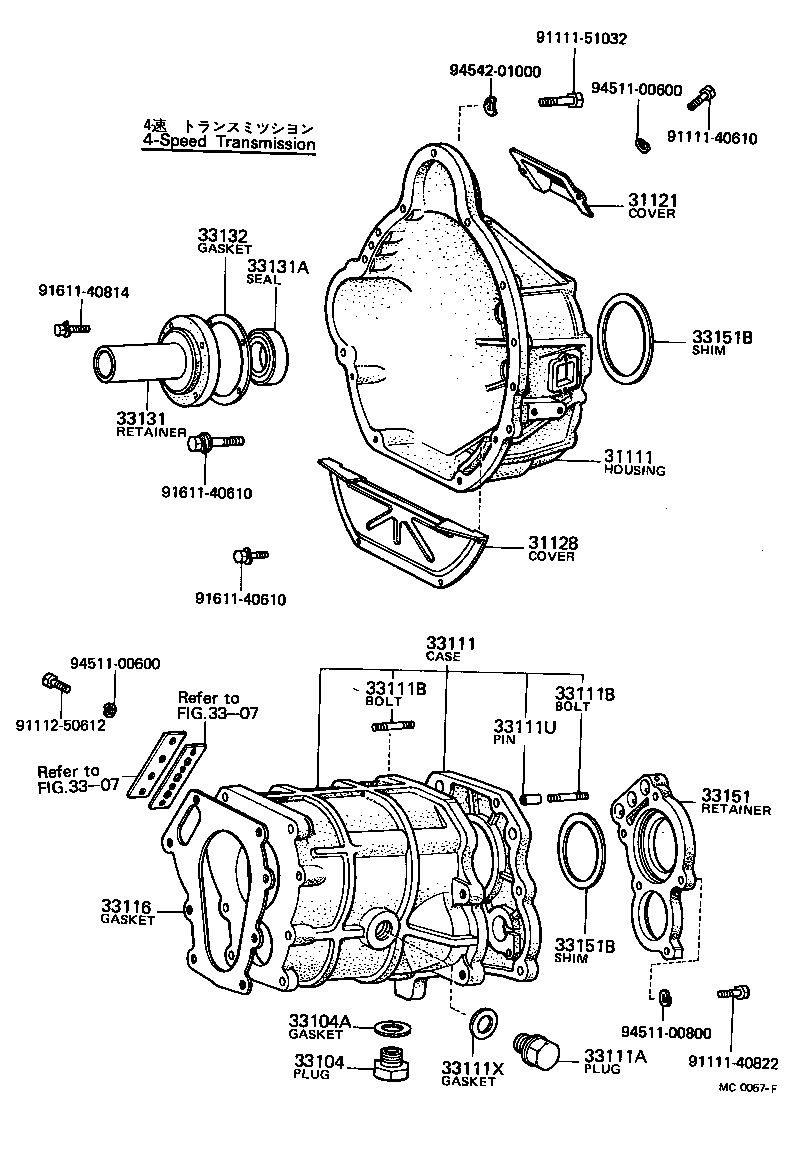

Clutch Housing & Transmission Case (MTM)
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31128 | Cover, Clutch Housing Under |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111B | Bolt, Stud OR Bolt(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33116 | Gasket, Manual Transmission Case |
| 33121G | Cover, Manual Transmission Case |
| 33122A | Gasket, Manual Transmission Case Cover |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33132 | Gasket, Front Bearing Retainer(MTM) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33151B | Shim(FOR OUTPUT SHAFT BEARING TO RETAINER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
