Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

9 part groups · 2 illustrations

Illustrations

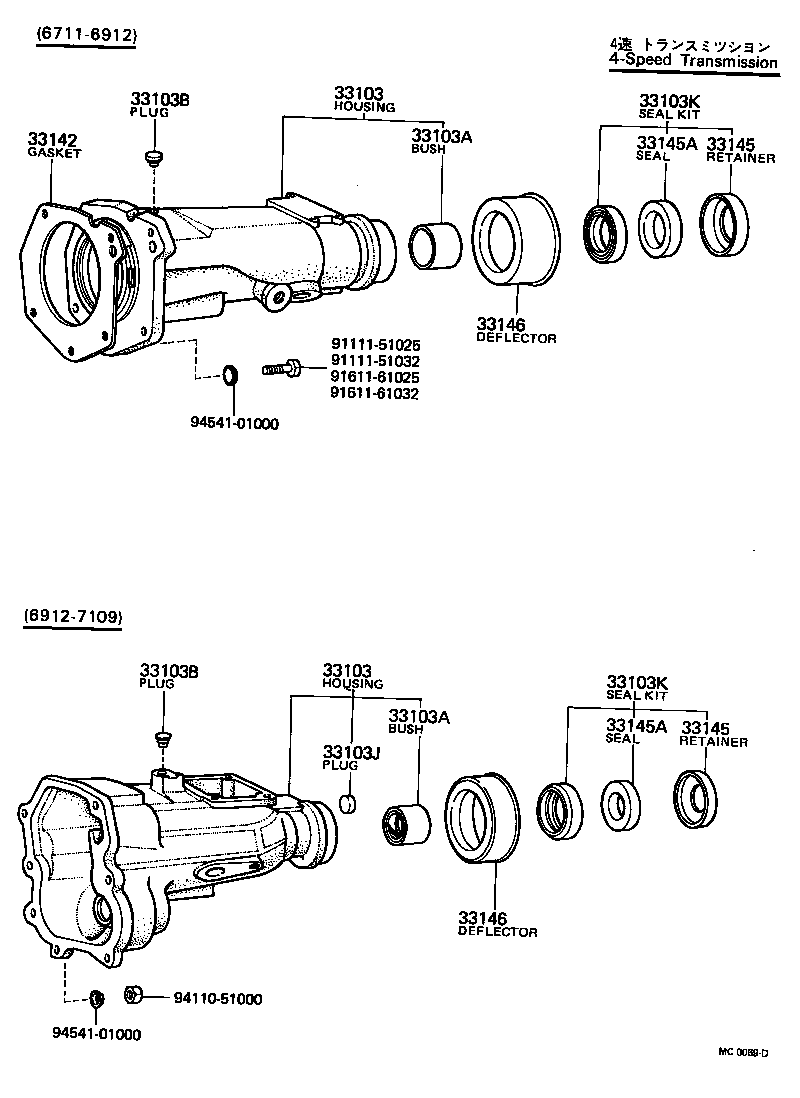

Figure MC2524A MC2524A 1967-11 → 1974-05 Figure MC0069D MC0069D 1967-11 → 1971-09

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103J Plug, Tight(FOR EXTENSION HOUSING)
33103K Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33142 Gasket, Extension Housing(MTM)
33145 Retainer, Extension Housing Dust Seal(MTM)
33145A Seal, Dust(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
