Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

54 part groups · 10 illustrations

Illustrations

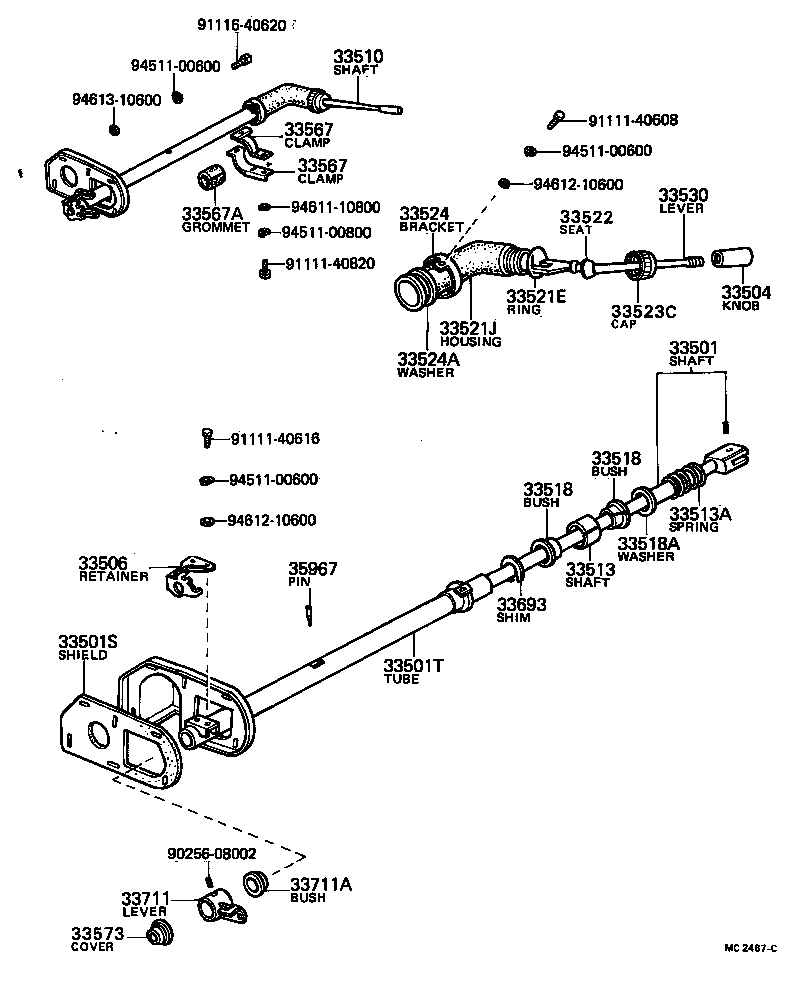

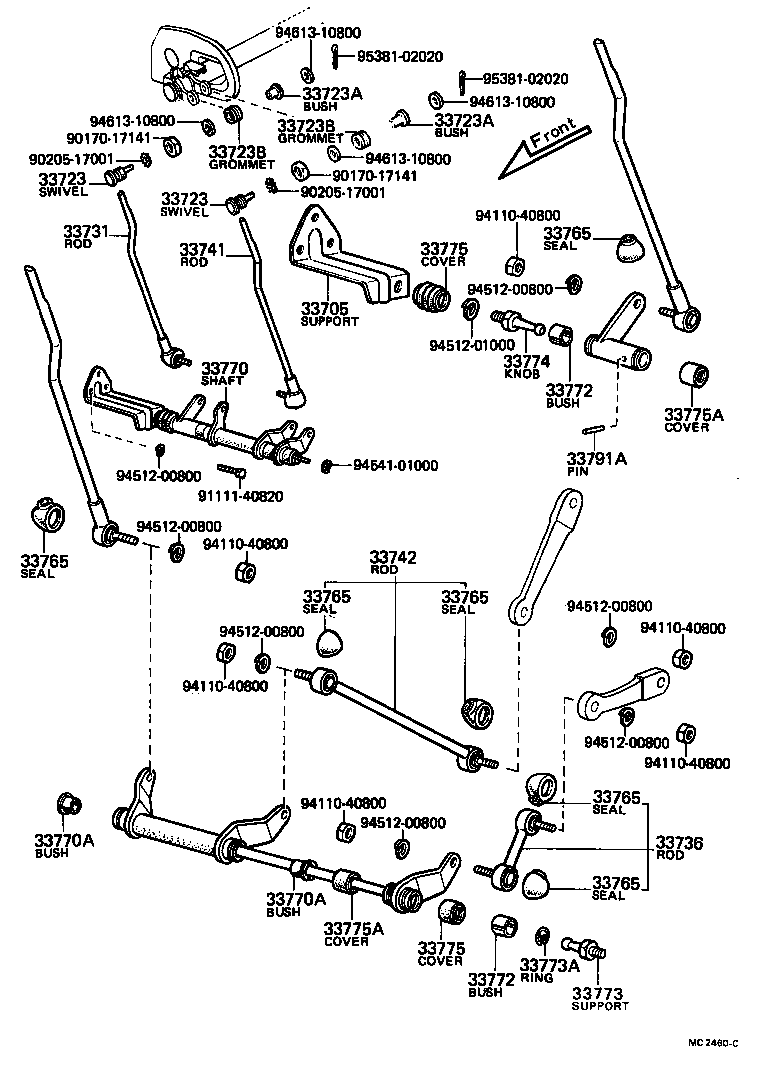

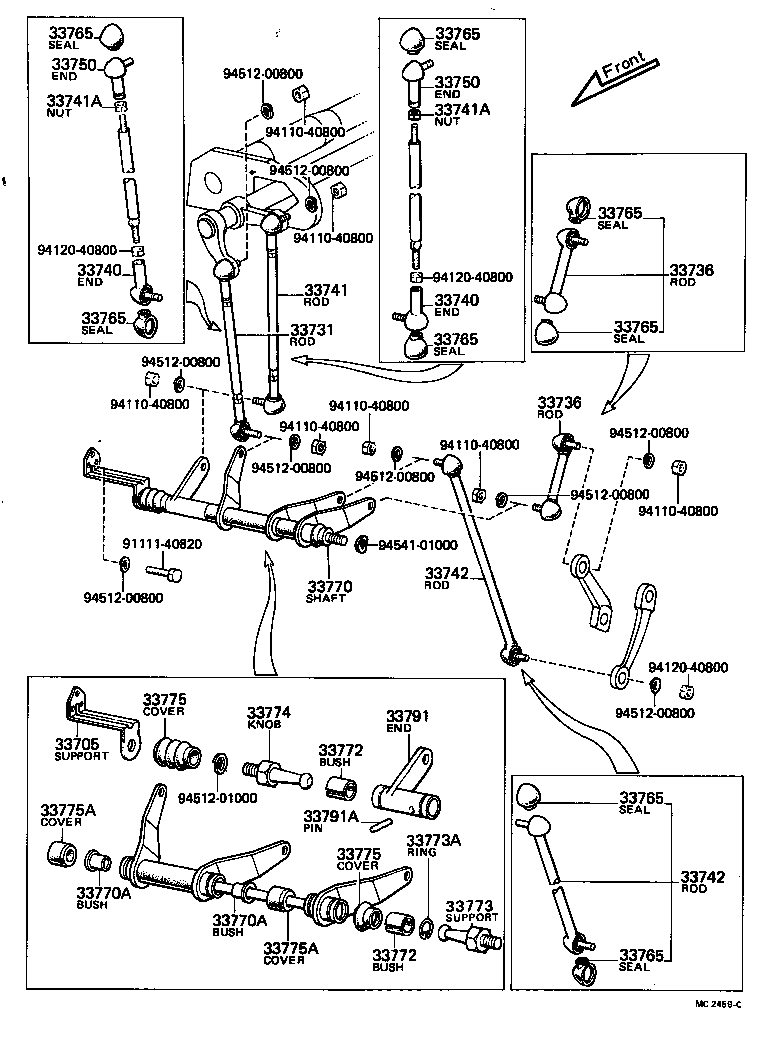

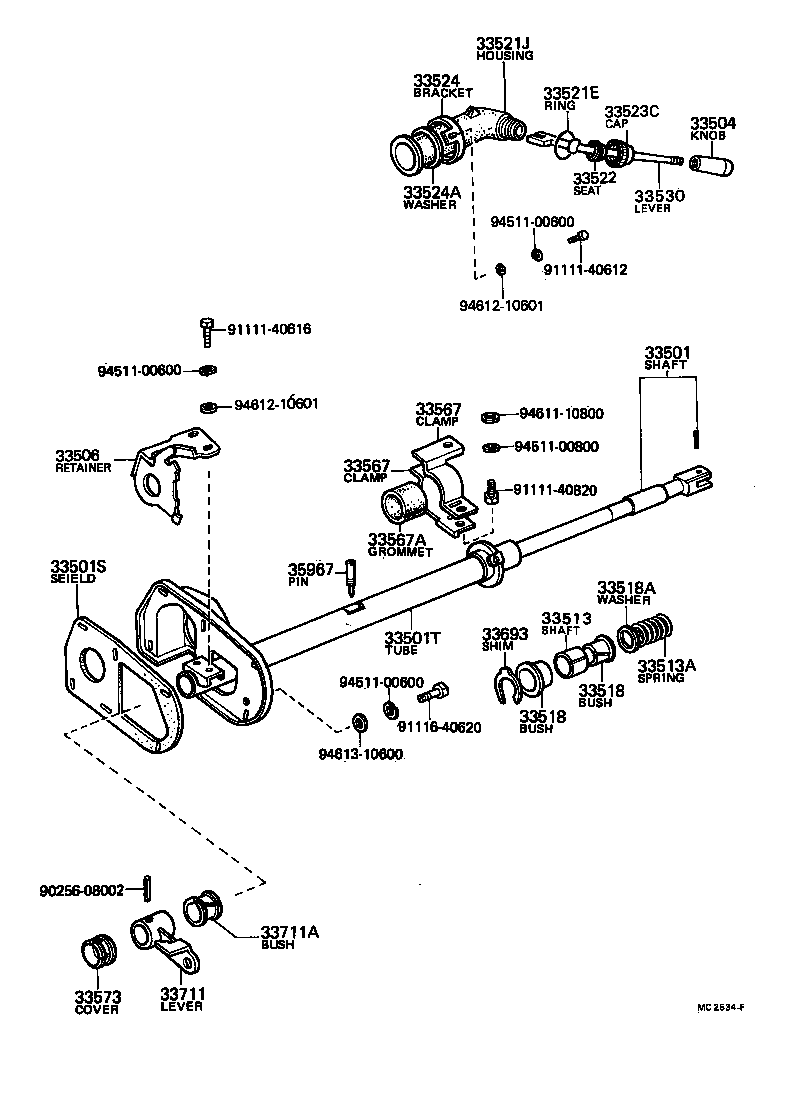

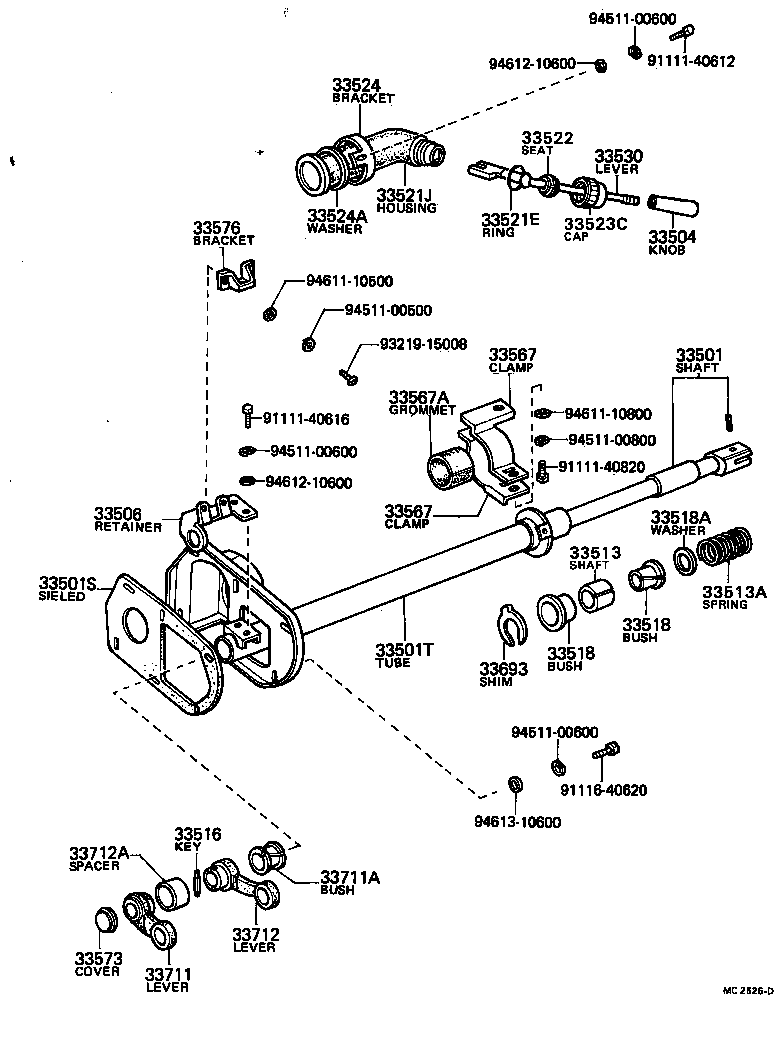

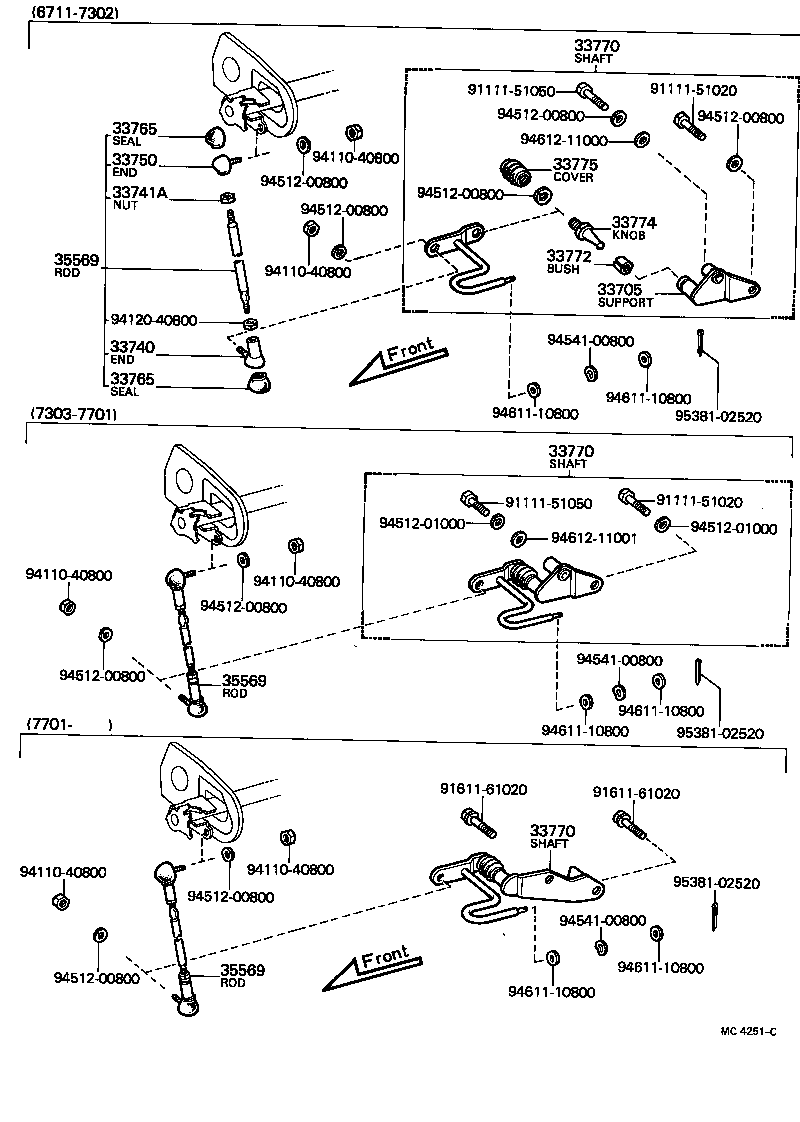

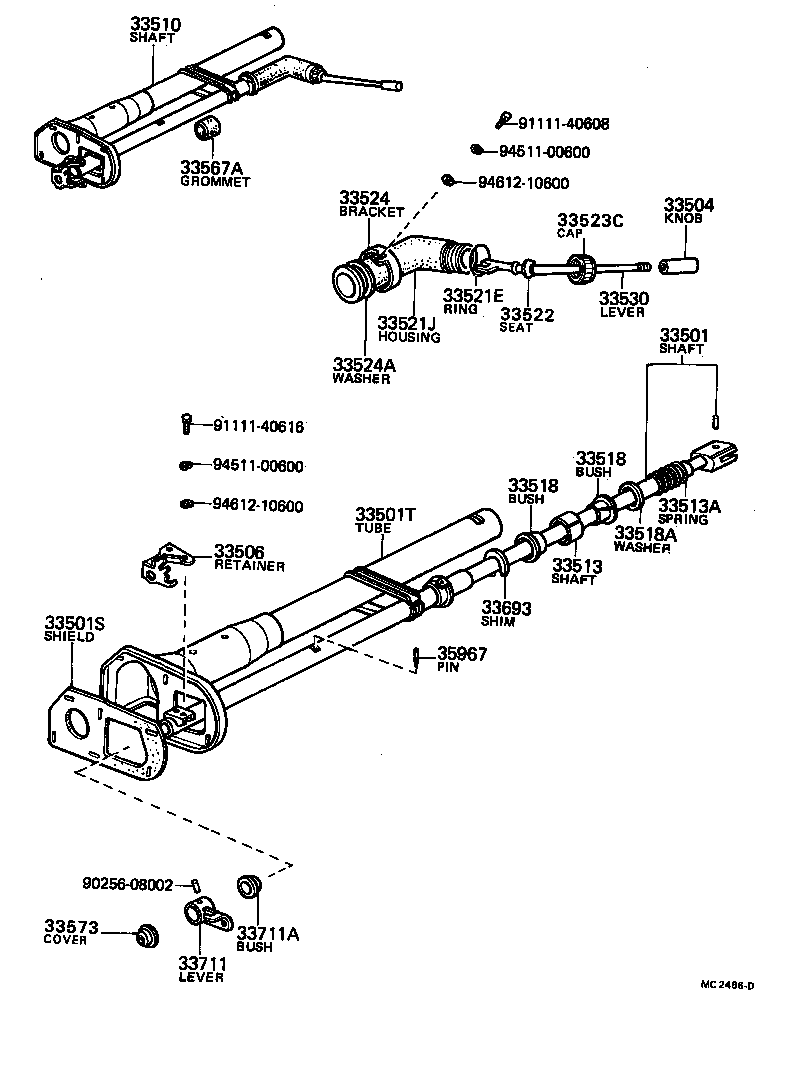

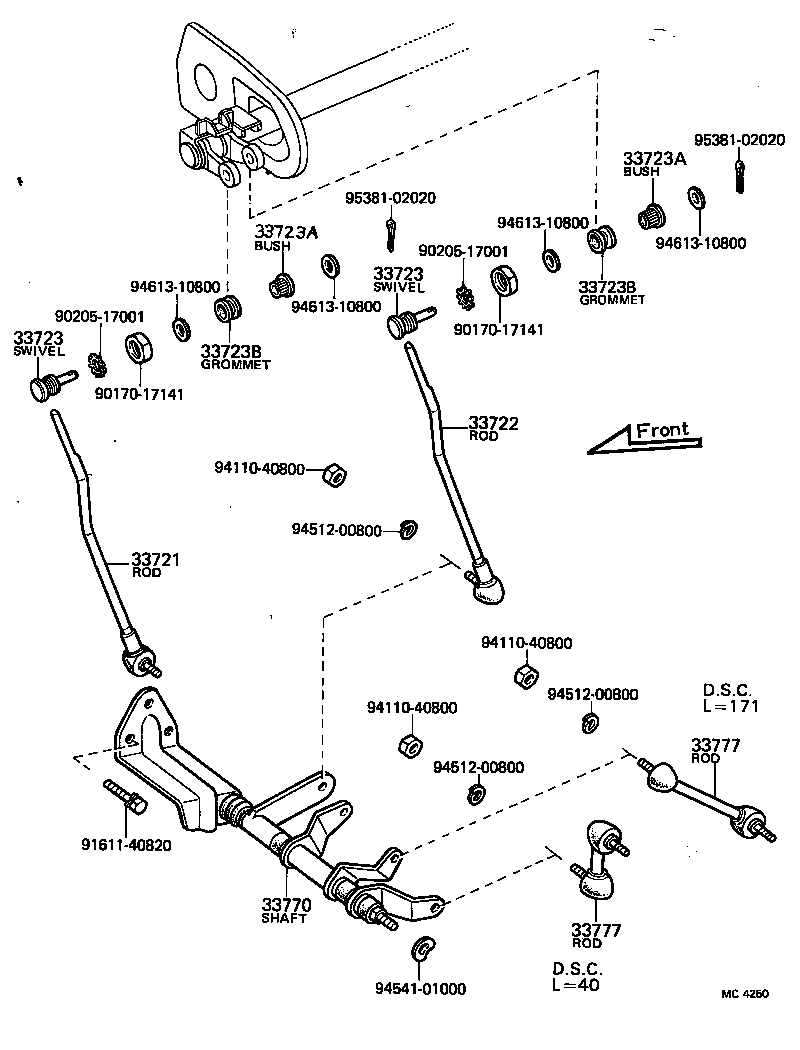

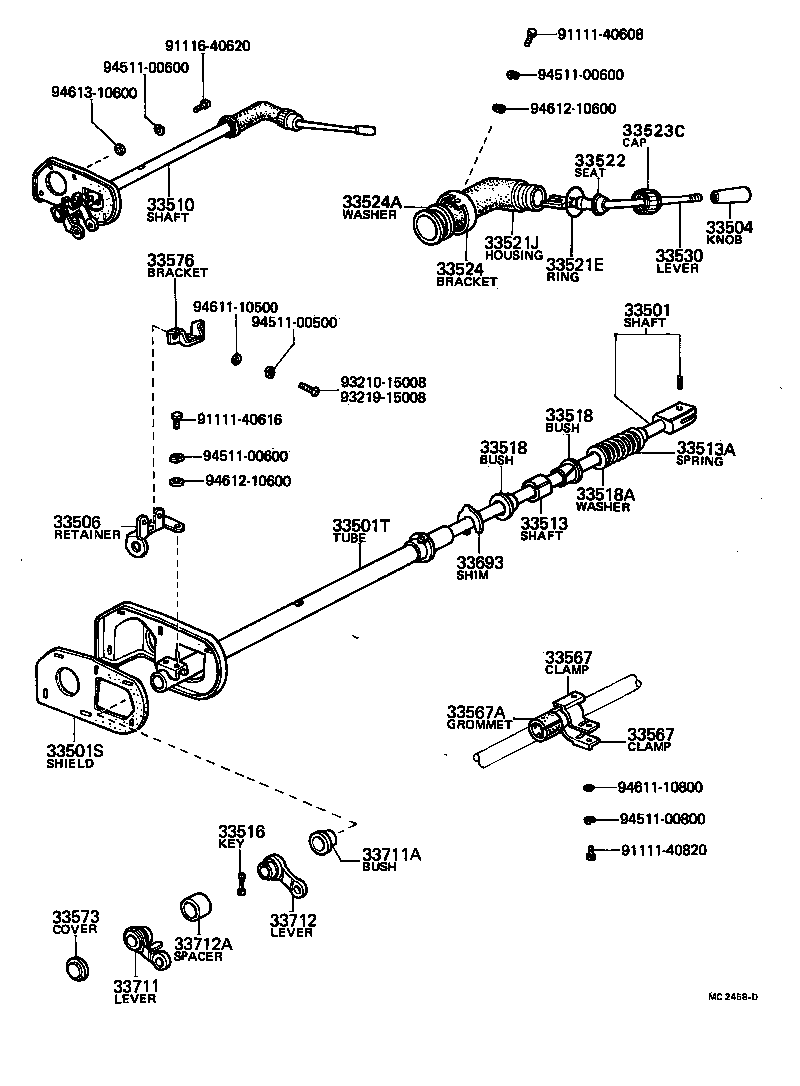

Figure MC2457E MC2457E 1967-11 → 1969-03 Figure MC2458D MC2458D 1969-03 → 1973-02 Figure MC2525D MC2525D 1973-03 → 1974-05 Figure MC2466D MC2466D 1967-11 → 1969-03 Figure MC2467C MC2467C 1969-03 → 1973-02 Figure MC2534F MC2534F 1973-03 → — Figure MC2459C MC2459C 1967-11 → 1969-12 Figure MC2460C MC2460C 1969-12 → 1973-02 Figure MC4250 MC4250 1973-03 → 1974-05 Figure MC4251C MC4251C 1967-11 → —

Part groups

PNCDescription
33501 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33501S Shield, Control Shaft Tube
33501T Tube Sub-assy, Control Shaft
33504 Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT)
33506 Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
33510 Shaft Assy, Control W/Steering Column
33513 Shaft, Control Shaft Bracket, Upper
33513A Spring, Compression (FOR BRACKET UPPER SHAFT)
33516 Key, Control Lever Selecting
33518 Bush, Upper Control Shaft Piece
33518A Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
33521E Ring, O (FOR SHIFT LEVER HOUSING)
33521J Housing, Shift Lever (FOR COLUMN SHIFT)
33522 Seat, Shift Lever Plate (FOR COLUMN SHIFT)
33523C Cap, Shift Lever (FOR COLUMN SHIFT)
33524 Bracket, Control Lever Housing Support (FOR COLUMN SHIFT)
33524A Washer, Plate (FOR CONTROL LEVER HOUSING)
33530 Lever Assy, Shift (FOR COLUMN SHIFT)
33567 Clamp, Control Shaft Tube
33567A Grommet (FOR CONTROL SHAFT TUBE)
33573 Cover, Control Shaft Dust, Lower
33576 Bracket, Back-up Lamp Switch
33693 Shim, Shift Lever Adjusting (FOR COLUMN SHIFT)
33705 Support Sub-assy, Cross Shaft (FOR BODY SIDE)
33711 Lever, Control Shaft (FOR COLUMN SHIFT)
33711A Bush (FOR CONTROL SHAFT LEVER)
33712 Lever, Control Shaft
33712A Spacer (FOR CONTROL SHAFT LEVER)
33721 Rod, Low Speed Connecting
33722 Rod, High Speed Connecting
33723 Swivel, Connecting Rod (FOR COLUMN SHIFT)
33723A Bush (FOR COLUMN SHIFT CONTROL SHAFT)
33723B Grommet (FOR COLUMN SHIFT CONTROL SHAFT)
33731 Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
33736 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
33740 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33741 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
33741A Nut, Hexagon (FOR COLUMN SHIFT SELECTING OR SHIFTING ROD)
33742 Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT)
33750 End, Connecting Rod, NO.2 (FOR COLUMN SHIFT)
33765 Seal, Connecting Rod End Dust (FOR COLUMN SHIFT)
33770 Shaft Assy, Cross (FOR COLUMN SHIFT)
33770A Bush (FOR CROSS SHAFT)
33772 Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT)
33773 Support, Cross Shaft, NO.1 (FOR COLUM SHIFT)
33773A Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP)
33774 Knob, Cross Shaft Support, NO.2
33775 Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
33775A Cover, Cross Shaft Dust
33777 Rod, Gear Shift(FOR COLUMN SHIFT)
33791 End, Cross Shaft
33791A Pin(FOR CROSS SHAFT END)
35569 Rod, Transmission Control, 1ST (FOR COLUMN SHIFT)
35967 Pin, Indicator Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
