Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

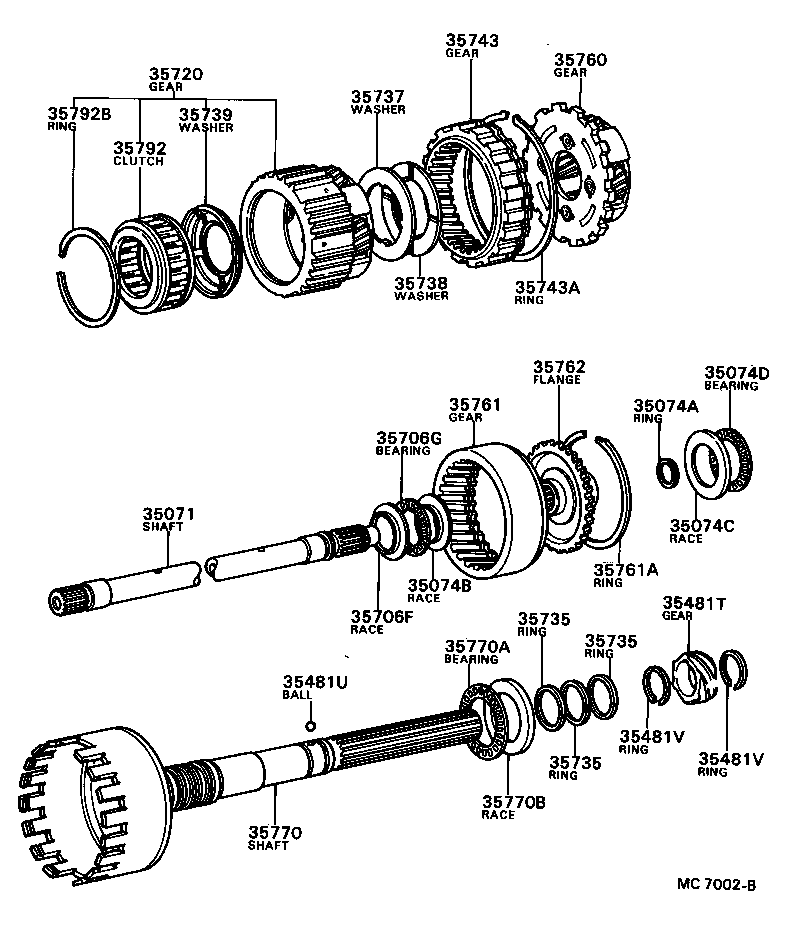

Planetary Gear, Reverse Piston & Counter Gear(ATM)
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35071 | Shaft Sub-assy, Planetary Intermediate |
| 35071A | Bearing, Thrust(FOR INTERMEDIATE SHAFT FRONT) |
| 35071B | Bearing, Thrust(FOR INTERMEDIATE SHAFT REAR) |
| 35074A | Ring, Set (FOR REAR PLANETARY RING GEAR) |
| 35074B | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR FRONT) |
| 35074C | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR REAR) |
| 35074D | Bearing, Thrust (FOR REAR PLANETARY RING GEAR REAR) |
| 35481T | Gear, Speedmeter Drive (ATM) |
| 35481U | Key OR Ball, Speedmeter Drive Gear (ATM) |
| 35481V | Ring OR Spacer (FOR ATM SPEEDMETER DRIVE GEAR) |
| 35703 | Carrier Sub-assy, Planetary |
| 35706F | Race, Thrust Bearing (FOR SUN GEAR REAR) |
| 35706G | Bearing, Thrust (FOR SUN GEAR REAR) |
| 35712 | Ring, Planetary Intermediate Shaft Oil Seal |
| 35720 | Gear Assy, Front Planetary |
| 35735 | Ring, Planetary Output Snap |
| 35737 | Washer, Planetary Carrier Thrust |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35739 | Washer, Planetary Carrier Thrust, NO.3 |
| 35743 | Gear, Front Planetary Ring |
| 35743A | Ring, Shaft Snap (FOR FRONT PLANETARY RING GEAR) |
| 35760 | Gear Assy, Rear Planetary |
| 35761 | Gear, Rear Planetary Ring |
| 35761A | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR) |
| 35762 | Flange, Rear Planetary Ring Gear |
| 35770 | Shaft Assy, Output |
| 35770A | Bearing, Thrust (FOR OUTPUT SHAFT) |
| 35770B | Race, Thrust Bearing (FOR OUTPUT SHAFT) |
| 35792 | Clutch, 1 Way, NO.2 |
| 35792B | Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2) |
| 35799 | Bolt, Center Support, NO.2 |
| 35810R | Band Assy, Transmission Brake (FOR REAR) |
| 35831 | Strut, Brake Band Apply |
| 35861 | Piston, Reverse |
| 35863 | Ring, Reverse Piston Oil Seal, Outer |
| 35873 | Lever, Reverse Brake Band Apply |
| 35873A | Spring, Torsion (FOR BRAKE BAND) |
| 35878 | Bolt, Rear Brake Band Anchor |
| 35880 | Servo Assy, Rear |
| 35881 | Body, Rear Servo |
| 35881A | Pin, Straight (FOR REAR SERVO BODY) |
| 35882 | Tube, Rear Servo Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
