Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Throttle Link & Valve Lever (ATM)

32 part groups · 3 illustrations

Illustrations

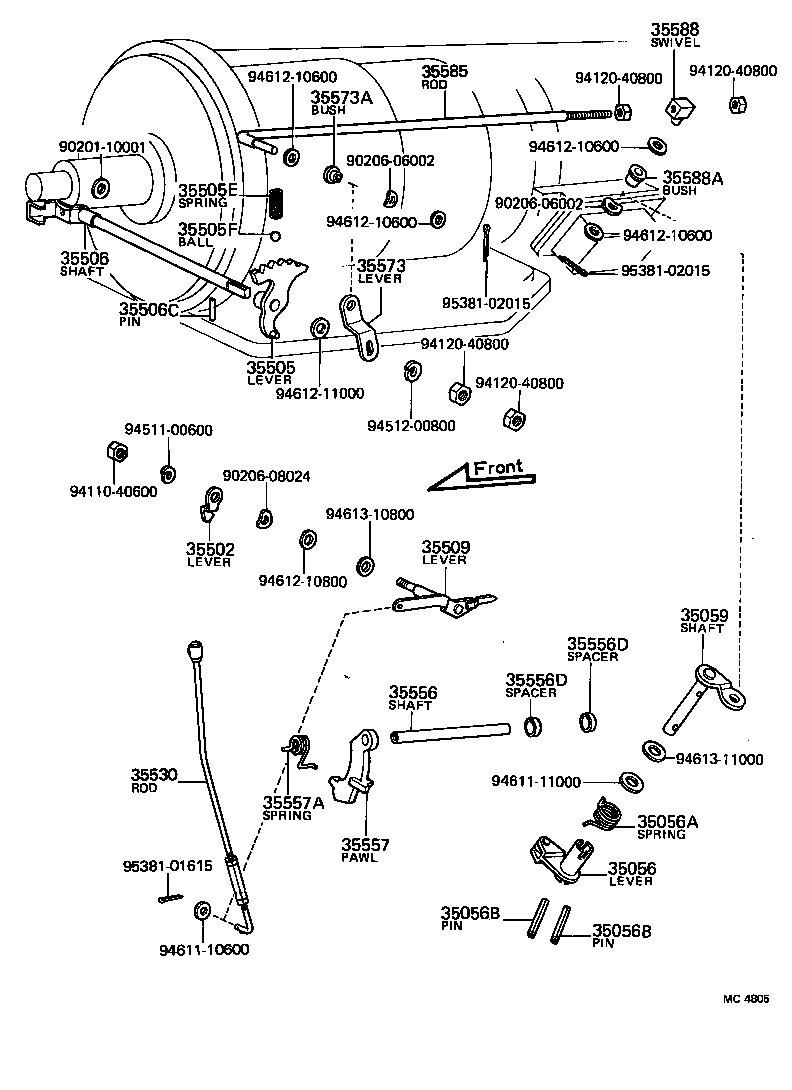

Figure MC2533C MC2533C 1967-11 → 1977-01 Figure MC4805 MC4805 1977-01 → 1980-05 Figure MC7005 MC7005 1980-05 → —

Part groups

PNCDescription
35056 Lever Sub-assy, Parking Lock W/Roller
35056A Spring, Parking Lock Lever
35056B Pin, Parking Lock Lever
35059 Shaft Sub-assy, Parking Lock
35502 Lever Sub-assy, Throttle Valve
35503A Clip(FOR THROTTLE LINK CONNECTING ROD)
35505 Lever Sub-assy, Manual Valve
35505E Spring, Compression (FOR MANUAL VALVE LEVER)
35505F Ball (FOR MANUAL VALVE LEVER)
35506 Shaft Sub-assy, Manual Valve Lever
35506C Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
35506F Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
35506H Spacer (FOR MANUAL VALVE LEVER SHAFT)
35509 Lever Sub-assy, Throttle Valve, Outer
35520 Cable Assy, Throttle
35520B Ring, O(FOR THROTTLE CABLE)
35523 Clamp, Throttle Cable
35525 Bracket, Throttle Cable
35530 Rod Assy, Throttle Link
35534 Rod, Throttle Link Connecting, 1ST
35556 Shaft, Parking Lock Pawl
35556D Spacer (FOR PARKING LOCK PAWL SHAFT)
35556E Ring, E (FOR PARKING LOCK PAWL SHAFT)
35557 Pawl, Parking Lock
35557A Spring, Torsion (FOR PARKING LOCK PAWL)
35572 Lever, Transmission Control Shaft, RH
35573 Lever, Transmission Control Shaft, LH
35573A Bush (FOR TRANSMISSION CONTROL SHAFT LEVER)
35585 Rod, Parking Lock
35588 Swivel, Parking Lock Rod
35588A Bush (FOR PARKING LOCK ROD SWIVEL)
35595 Bracket, Parking Lock Pawl
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
