Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

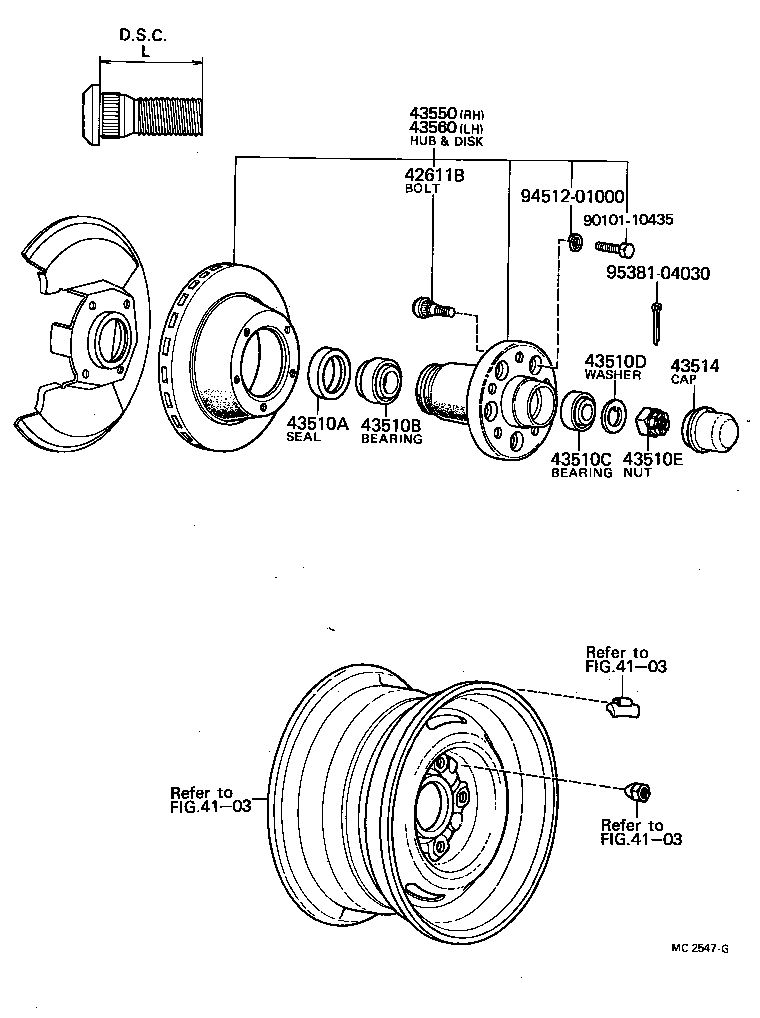

Front Axle Hub
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42448F | Protector, Front Brake Drum |
| 42611B | Bolt, Hub (FOR FRONT AXLE) |
| 43442 | Cap, Knuckle Grease Retainer, Inner |
| 43445 | Gasket, Knuckle Grease Retainer Cap |
| 43501 | Drum Sub-assy, Front Brake |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501B | Bolt, Set (FOR FRONT BRAKE DRUM SETTING) |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43510E | Nut (FOR STEERING KNUCKLE) |
| 43514 | Cap, Front Hub Grease |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43550 | Hub & Disc Assy, Front Axle, RH |
| 43560 | Hub & Disc Assy, Front Axle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
