Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

14 part groups · 2 illustrations

Illustrations

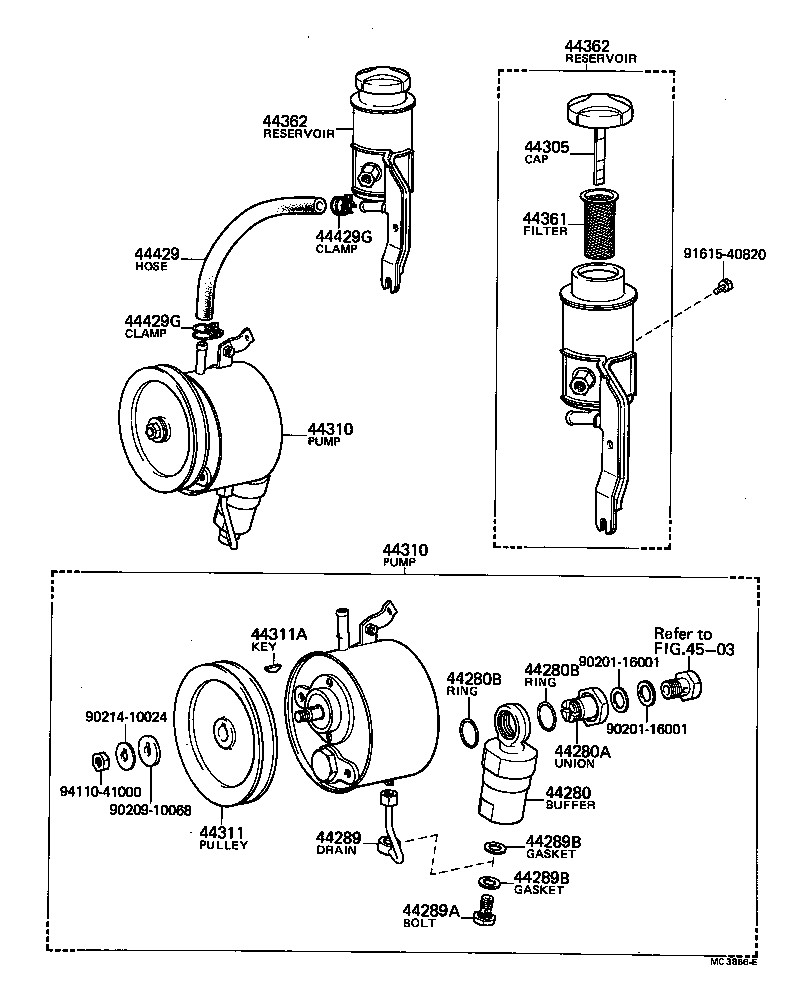

Figure MC3932B MC3932B 1967-11 → 1975-05 Figure MC3866E MC3866E 1975-05 → —

Part groups

PNCDescription
44280 Buffer Assy, Power Steering
44280A Union(FOR POWER STEERING BUFFER)
44280B Ring, O(FOR POWER STEERING BUFFER)
44289 Drain, Buffer TO Pump
44289A Bolt, Union(FOR DRAIN)
44289B Gasket(FOR DRAIN)
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44361 Filter, Oil(FOR VANE PUMP)
44362 Reservoir, Oil(FOR VANE PUMP)
44429 Hose, Reservoir TO Oil Pump
44429G Clamp, Reservoir TO Oil Pump Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
