Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 5 illustrations

Illustrations

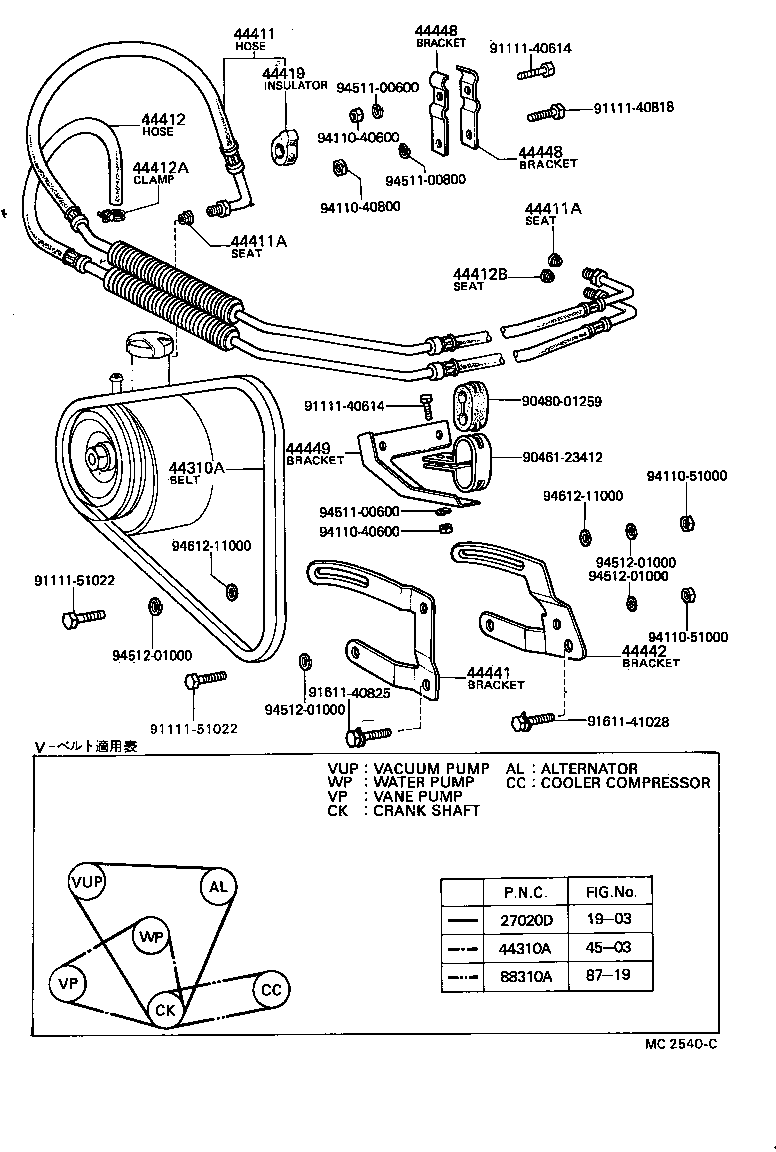

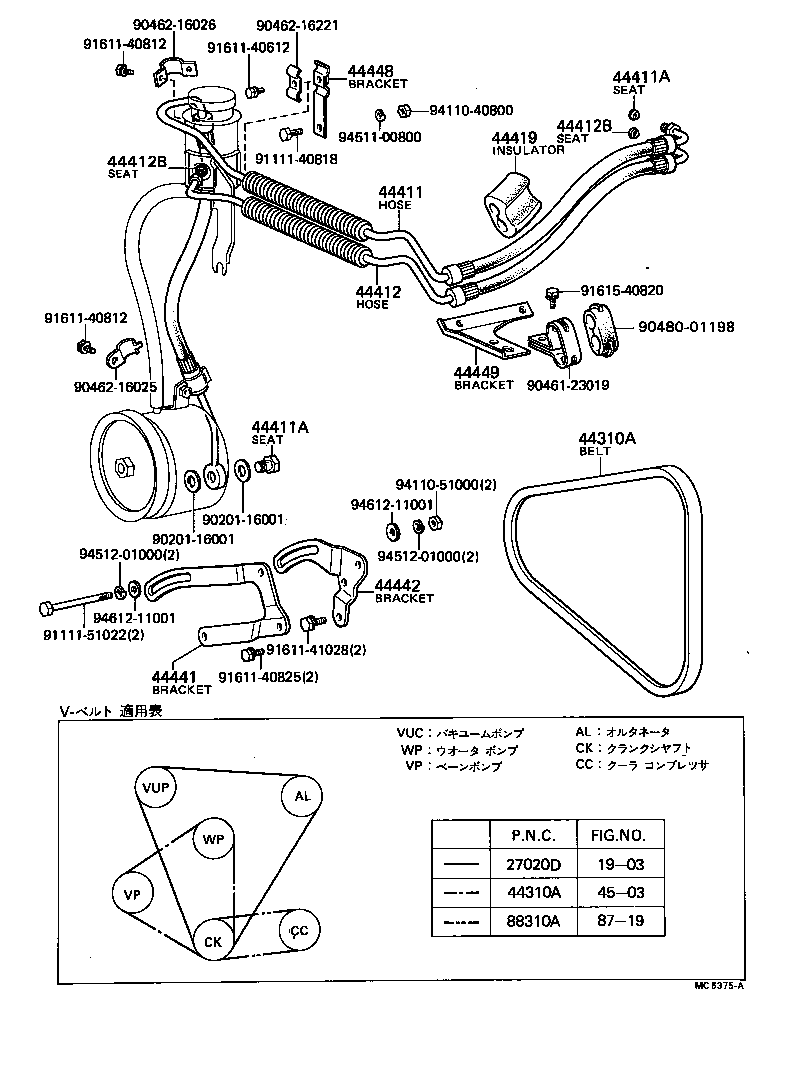

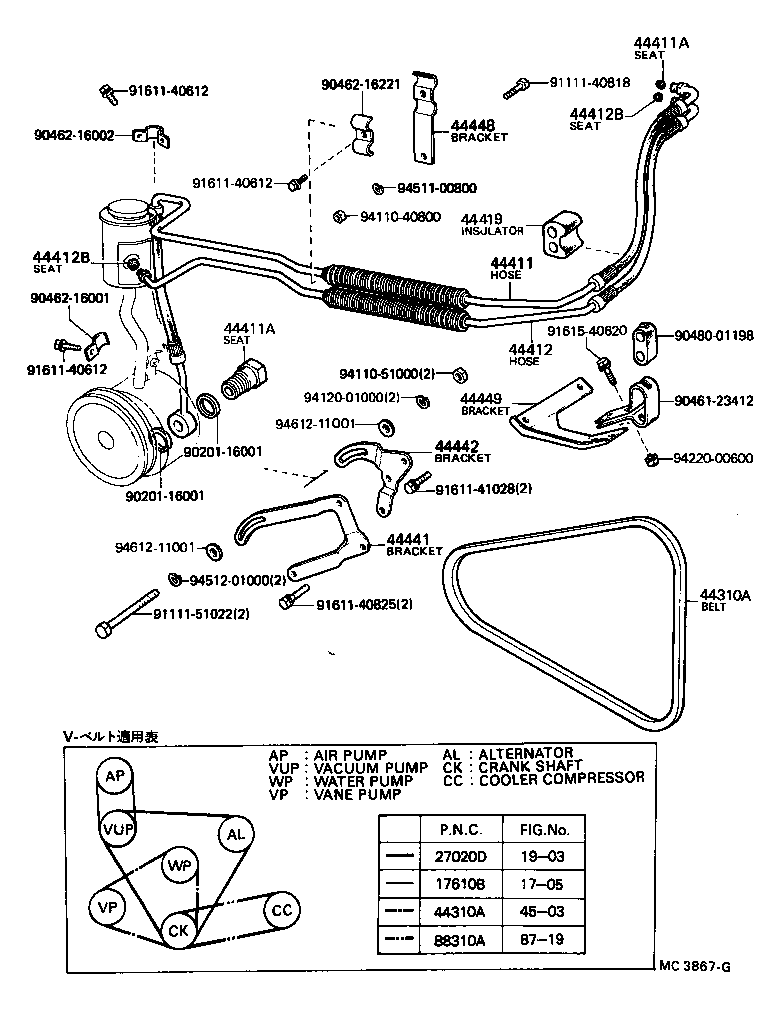

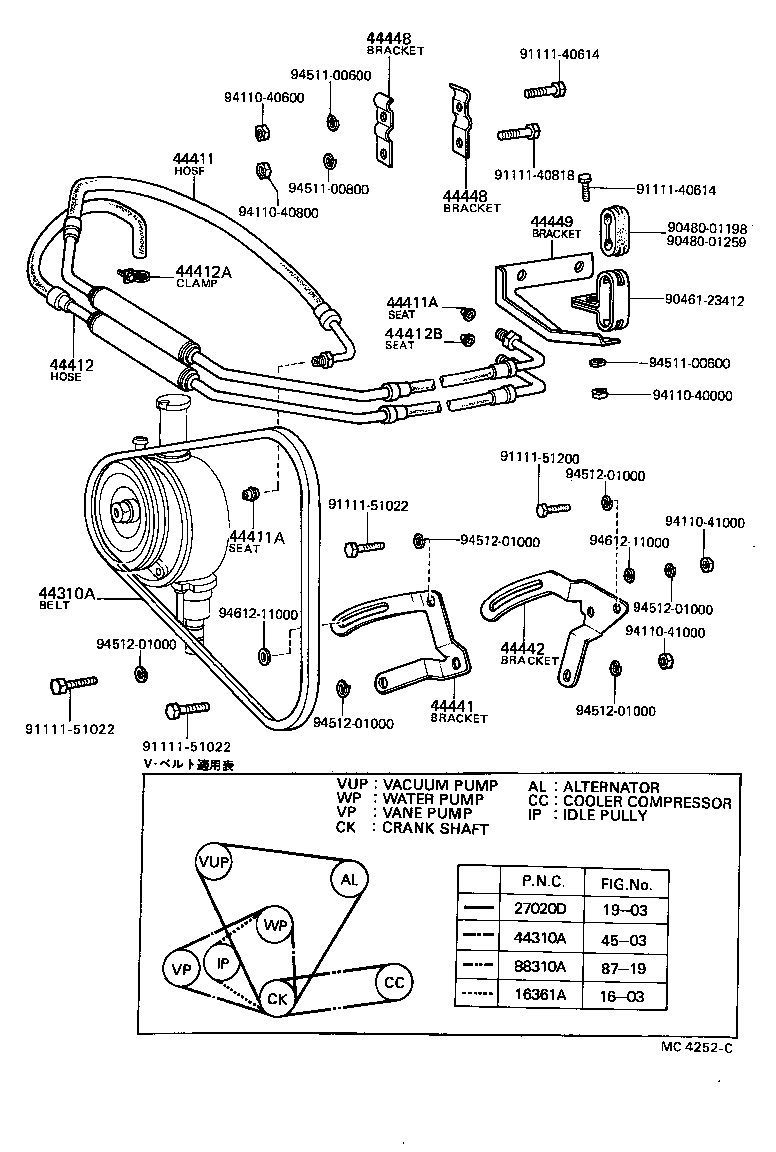

Figure MC0288I MC0288I 1967-11 → 1969-03 Figure MC4252C MC4252C 1969-03 → 1973-02 Figure MC2540C MC2540C 1973-03 → 1975-05 Figure MC3867G MC3867G 1975-05 → 1978-11 Figure MC6375A MC6375A 1978-11 → —

Part groups

PNCDescription
44411 Hose, Pressure Feed
44411A Seat, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412A Clamp, Rubber Hose Complete (FOR RETURN HOSE)
44412B Seat, Union(FOR RETURN HOSE)
44419 Insulator, Hose
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44448 Bracket, Pressure Feed Hose Support, NO.1
44449 Bracket, Pressure Feed Hose Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
