Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

24 part groups · 2 illustrations

Illustrations

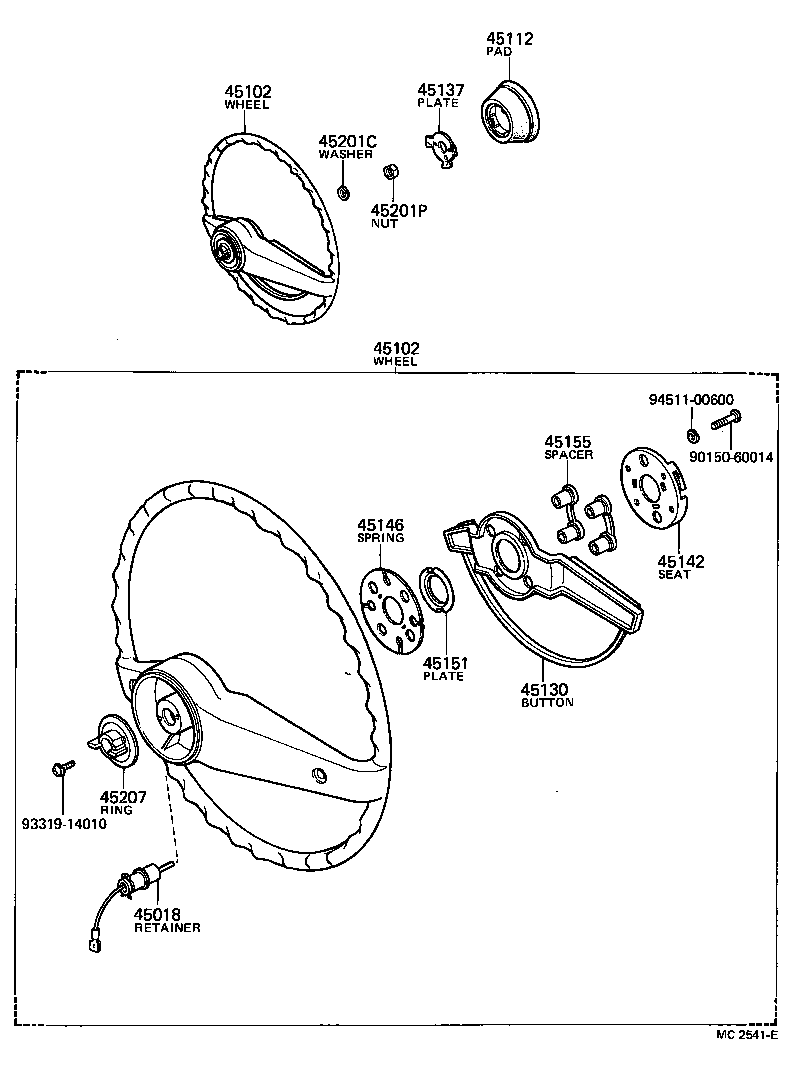

Figure MC0301F MC0301F 1967-11 → 1973-02 Figure MC2541E MC2541E 1973-03 → —

Part groups

PNCDescription
45018 Retainer Sub-assy, Horn Contact
45021 Retainer Sub-assy, RH Turn Signal Contact
45022 Retainer Sub-assy, LH Turn Signal Contact
45037 Retainer Sub-assy, Contact Roller Holder NO.1
45102 Wheel Sub-assy, Steering
45108 Roller Sub-assy, Horn Contact
45108A Spring, Compression(FOR HORN CONTACT ROLLER)
45112 Pad, Steering Wheel
45130 Button Assy, Horn
45137 Plate, Horn Button Stop
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45151 Plate,Horn Contact Spring Set
45155 Spacer, Horn Button Contact Plate
45157 Plate, Horn Lead Wire Contact
45185 Case, Horn Lead Spring
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45199 Plate, Insulator Back UP, NO.2
45201C Washer, Spring(FOR STEERING WHEEL SET)
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45207A Spring, Compression(FOR HORN EARTH)
45207B Pin, W/Head(FOR HORN EARTH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
