Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

25 part groups · 3 illustrations

Illustrations

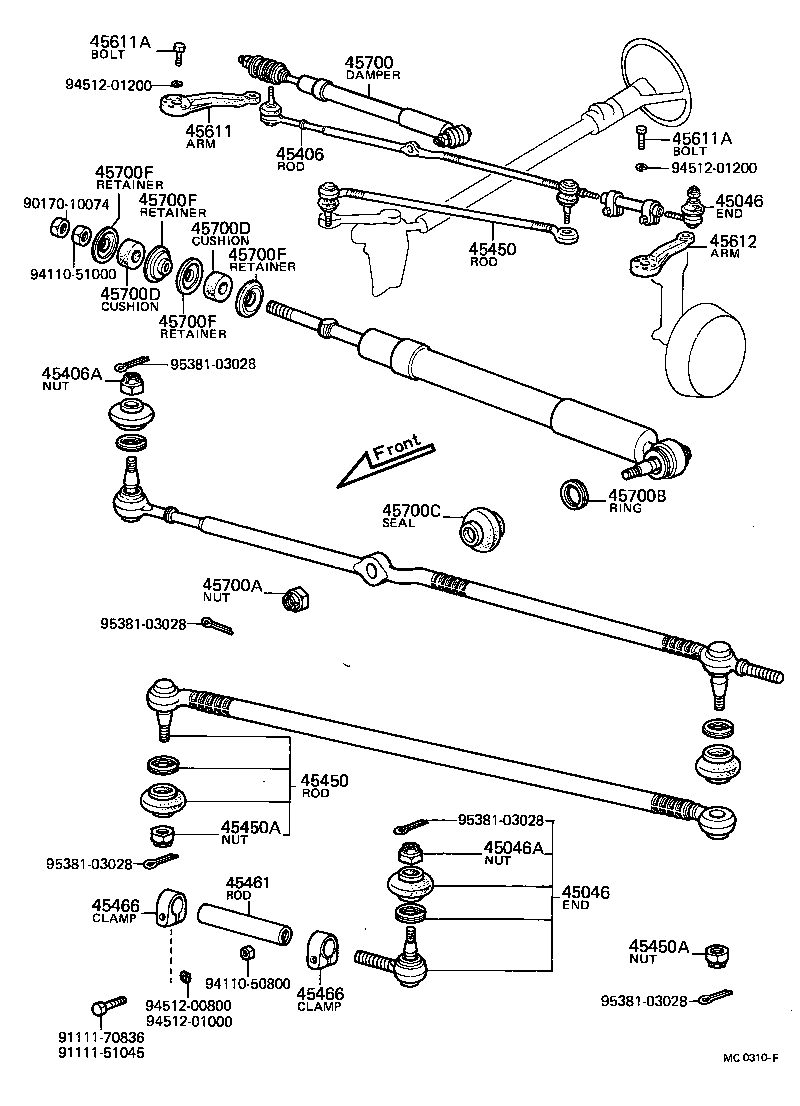

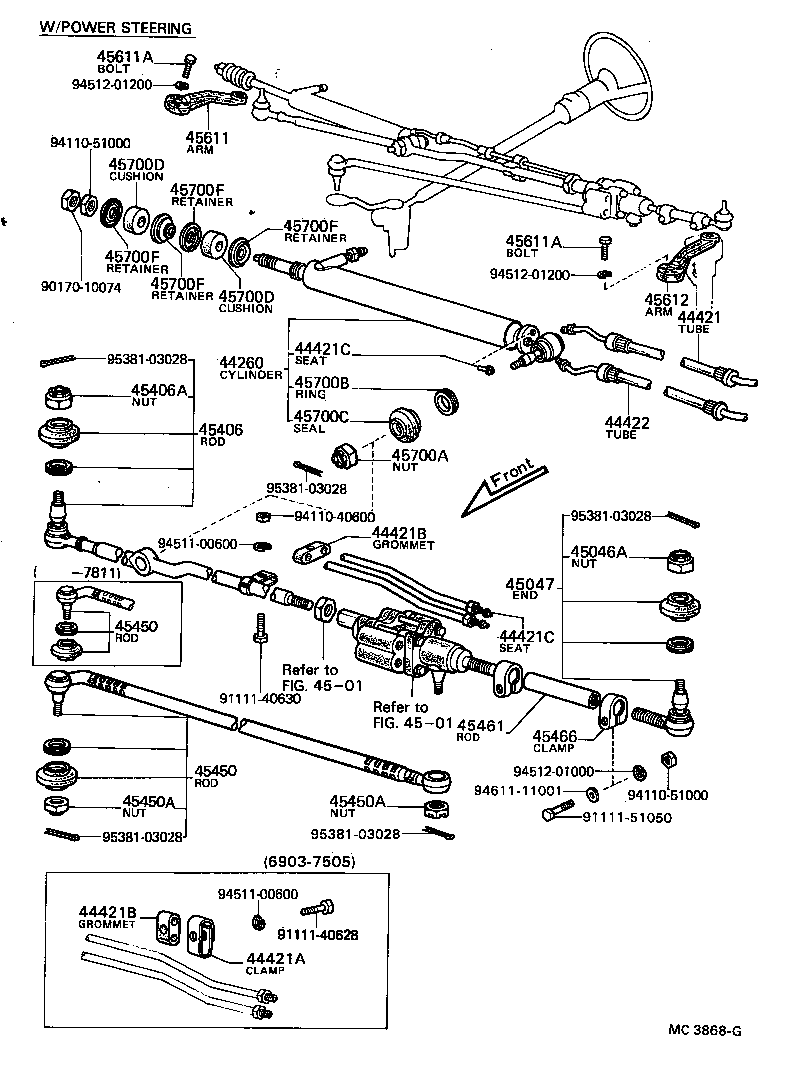

Figure MC0308F MC0308F 1967-11 → 1969-03 Figure MC0310F MC0310F 1969-03 → 1973-02 Figure MC3868G MC3868G 1969-03 → —

Part groups

PNCDescription
44260 Cylinder Assy, Power Steering Power
44421 Tube, Control Valve Power Cylinder NO.1
44421A Clamp(FOR CONTROL VALVE POWER CYLINDER TUBE)
44421B Grommet(FOR CONTROL VALVE POWER CYLINDER TUBE)
44421C Seat, Union(FOR CONTROL VALVE POWER CYLINDER TUBE)
44422 Tube, Control Valve Power Cylinder NO.2
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45406 Rod Sub-assy, Tie, RH
45406A Nut, Castle(FOR TIE ROD)
45450 Rod Assy, Steering Relay
45450A Nut, Castle(FOR RELAY ROD)
45460 Rod Assy, Tie, RH
45461 Rod, Steering Tie
45466 Clamp, Tie Rod End
45611 Arm, Steering Knuckle, RH
45611A Bolt, Knuckle Stopper
45612 Arm, Steering Knuckle, LH
45700 Damper Assy, Steering
45700A Nut(FOR STEERING DAMPER)
45700B Ring, Set(FOR STEERING DAMPER DUST SEAL)
45700C Seal, Dust(FOR STEERING DAMPER)
45700D Cushion, Steering Damper
45700F Retainer, Steering Damper Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
