Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03

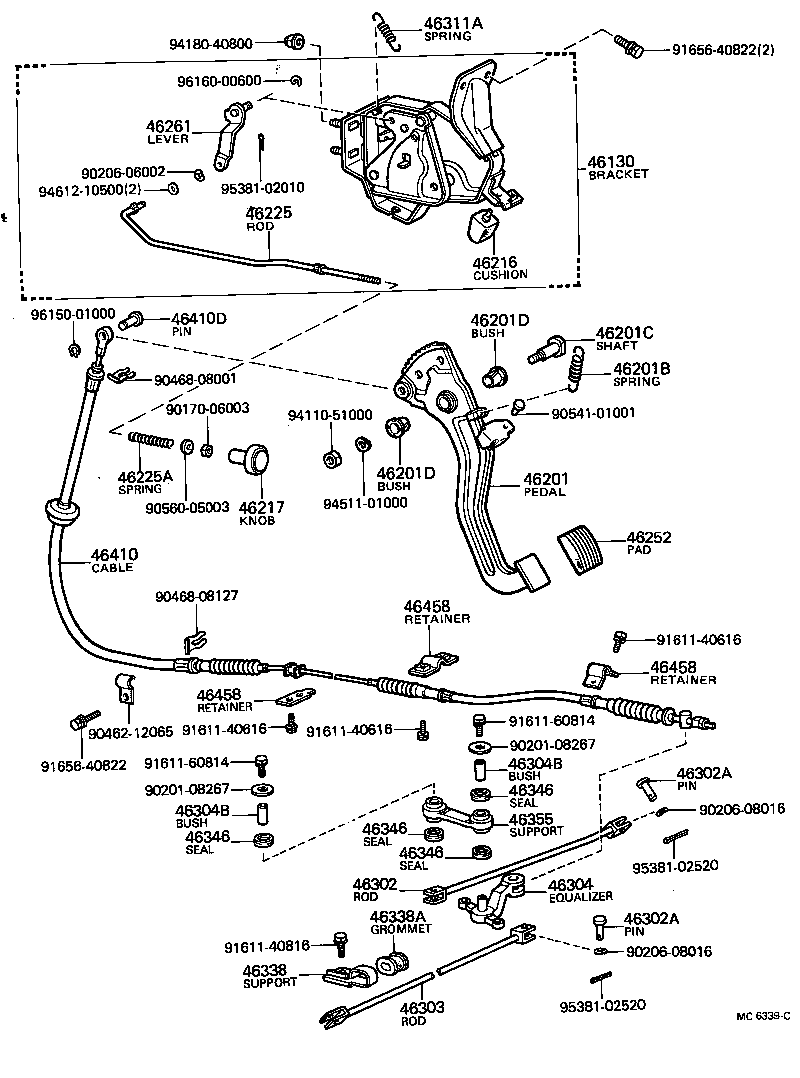

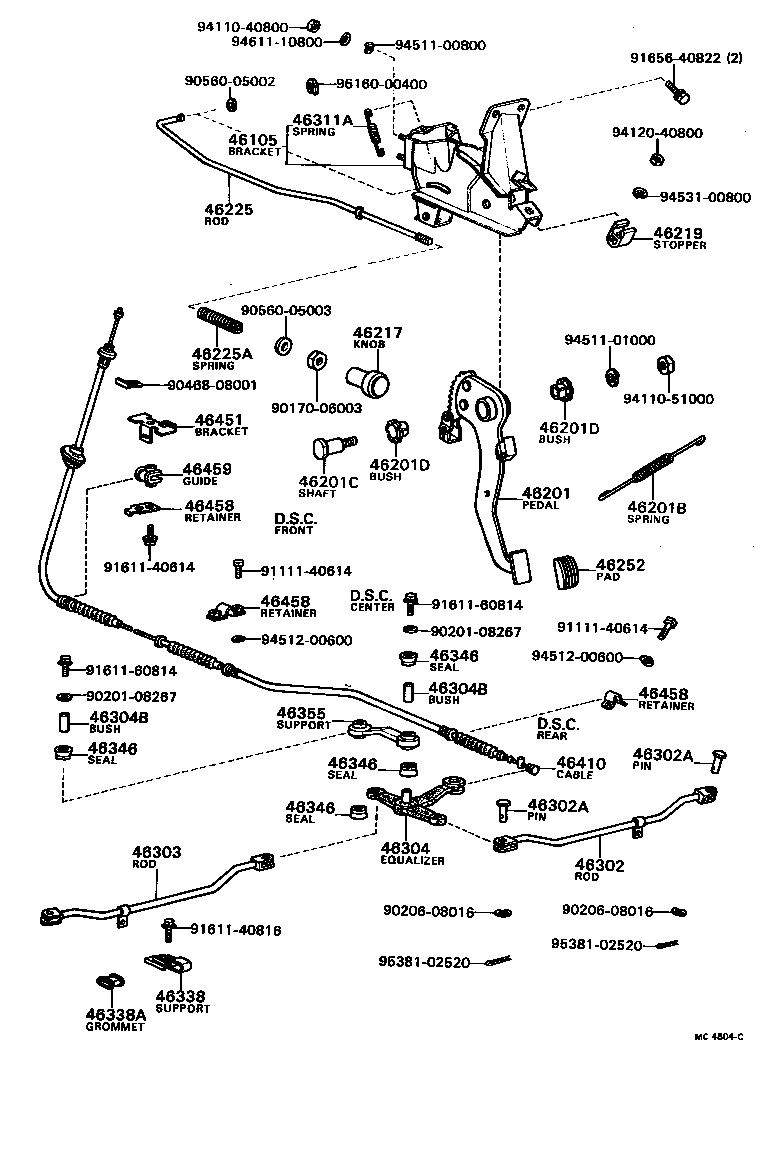

Parking Brake & Cable

41 part groups · 3 illustrations

PNC	Description
46105	Bracket Sub-assy, Parking Brake Planger OR Pedal
46110	Handle Assy, Parking Brake Control
46110A	Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
46114	Pin, Parking Brake Plunger
46130	Bracket Assy, Parking Brake Pedal
46143	Retainer, Plunger Guide Bush
46201	Pedal Sub-assy, Parking Brake
46201B	Spring, Tension
46201C	Shaft, Pedal
46201D	Bush(FOR PARKING BRAKE PEDAL)
46216	Cushion, Parking Pedal
46217	Knob, Parking Brake Release Rod
46219	Stopper, Parking Pedal
46225	Rod, Parking Brake Pawl Release
46225A	Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46233	Support, Parking Brake Center
46252	Pad, Parking Pedal
46261	Lever, Parking Brake Release Intermediate
46301	Lever Sub-assy, Parking Brake Intermediate
46301A	Spring, Tension(FOR INTERMEDIATE LEVER)
46302	Rod Sub-assy, Parking Brake Pull, NO.1
46302A	Pin, W/Hole(FOR PARKING BRAKE PULL ROD)
46303	Rod Sub-assy, Parking Brake Pull, NO.2
46304	Equalizer Sub-assy, Parking Brake
46304B	Bush(FOR PARKING BRAKE EQUALIZER)
46311	Pawl, Parking Brake
46311A	Spring(FOR PARKING BRAKE PAWL)
46311B	Pin, Parking Brake Pawl Pivot
46338	Support, Pull Rod
46338A	Grommet(FOR PULL ROD SUPPORT)
46346	Seal, Equalizer Pivot
46355	Support, Equalizer
46410	Cable Assy, Parking Brake, NO.1
46410D	Pin(FOR PARKING BRAKE FRONT CABLE)
46420	Cable Assy, Parking Brake, NO.2
46420C	Pin, W/Hole(FOR PARKING BRAKE CABLE)
46451	Bracket, Cable Support
46458	Retainer, Cable
46459	Guide, Cable
46471	Pulley, Wire
46471B	Pin, W/Hole(FOR WIRE PULLEY SET)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
