Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

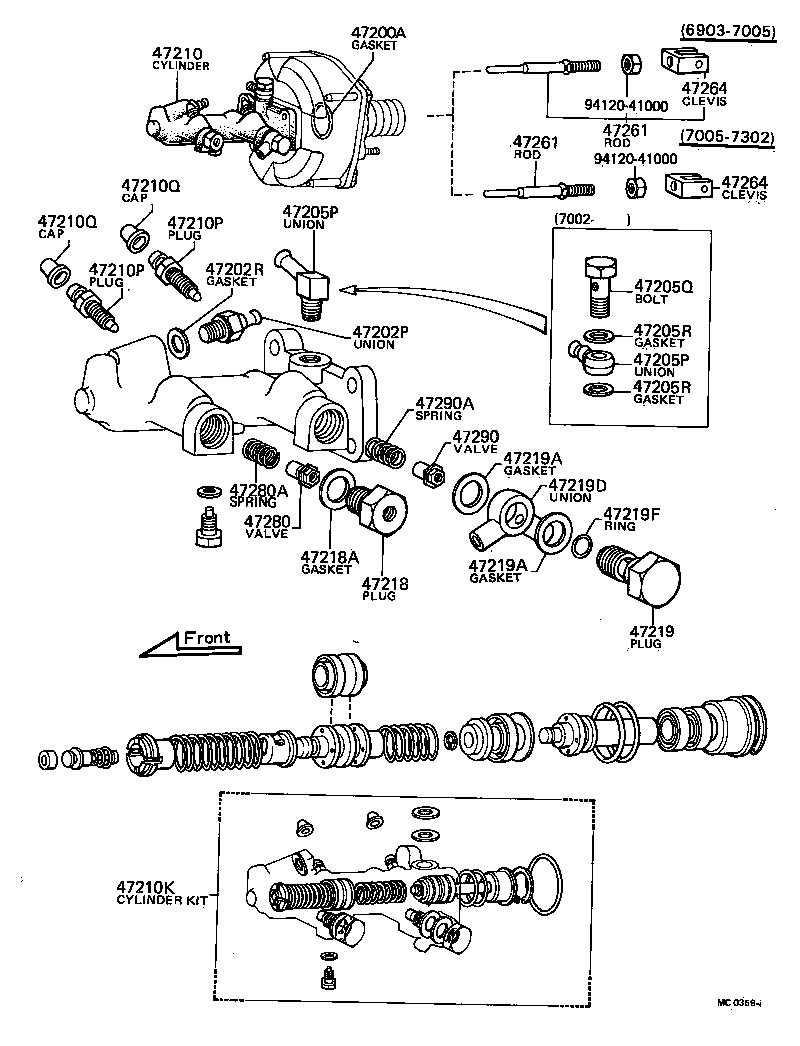

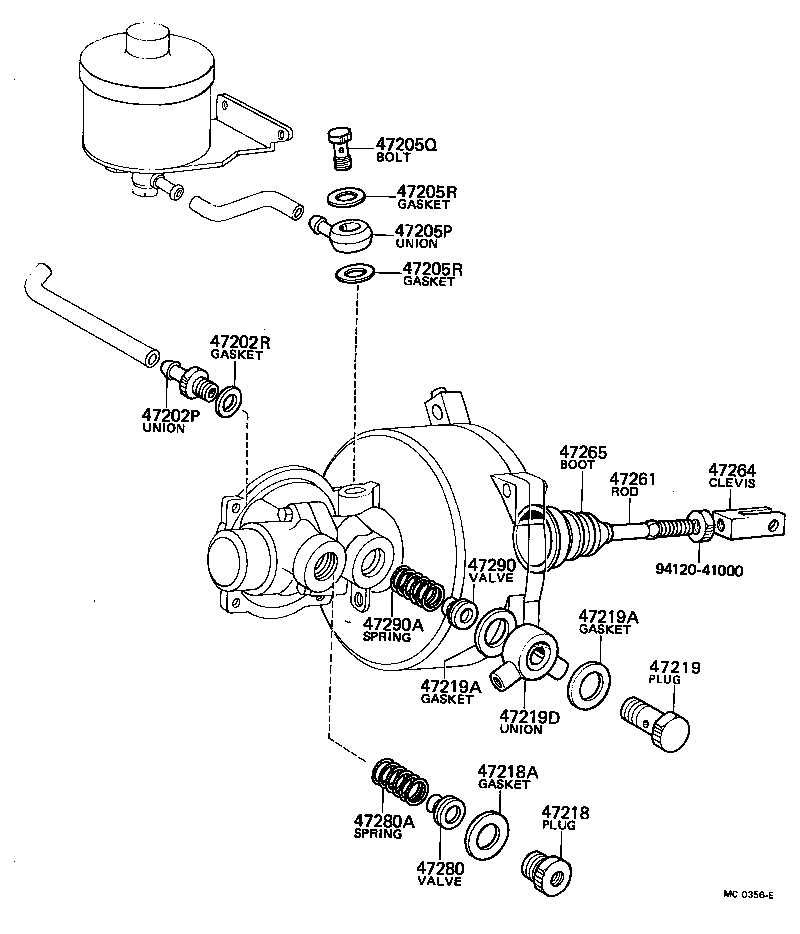

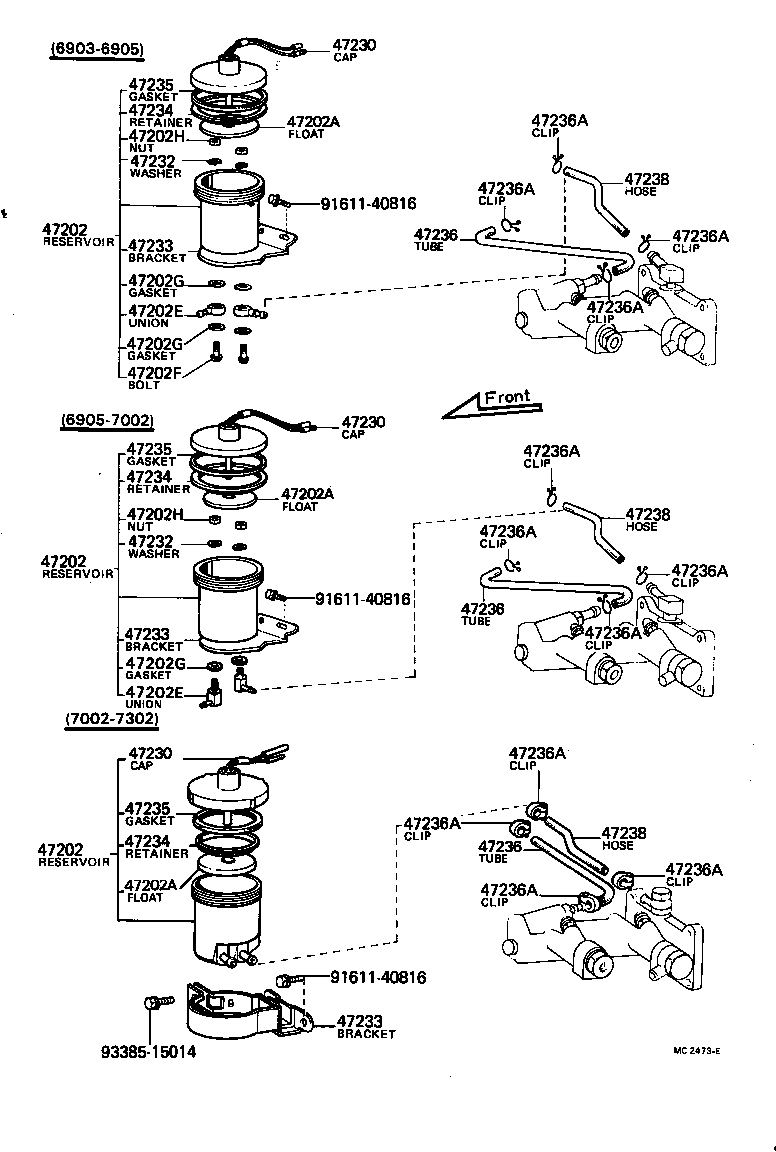

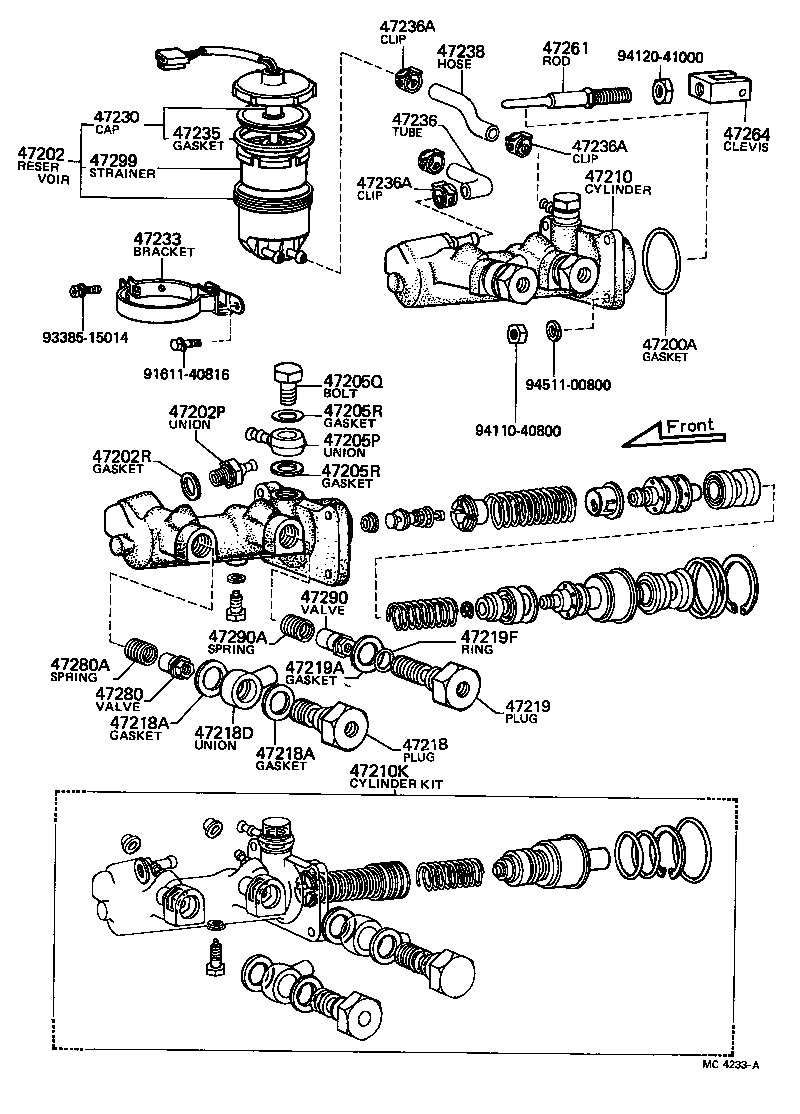

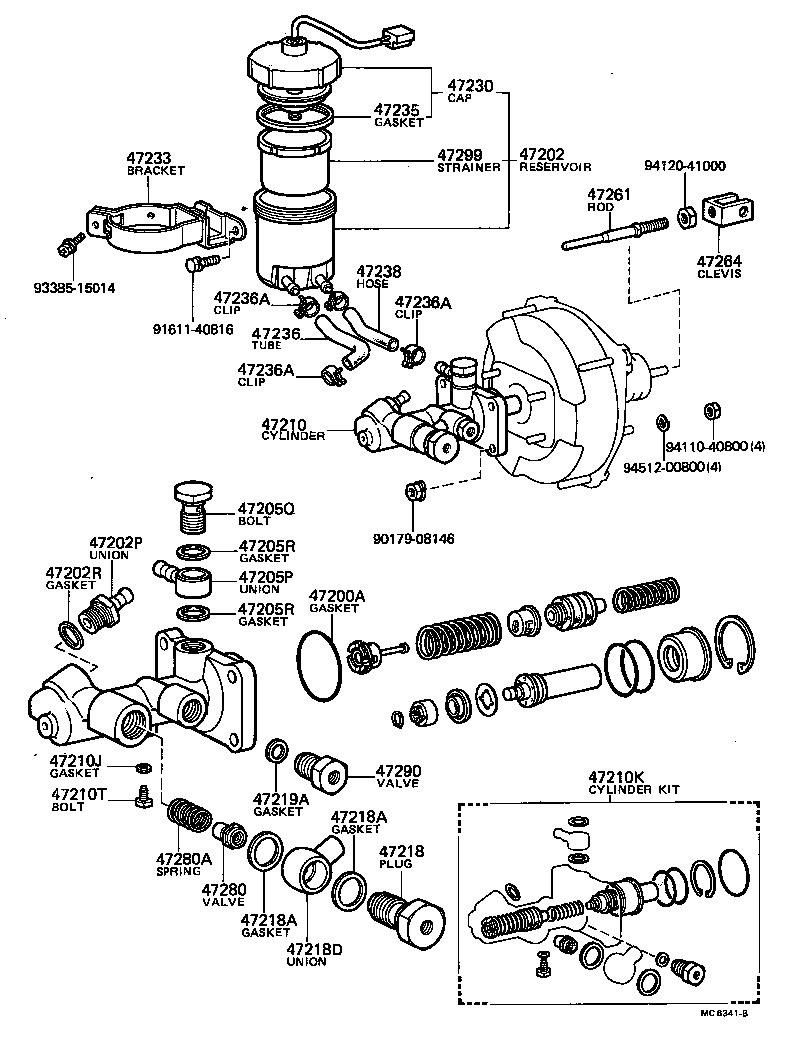

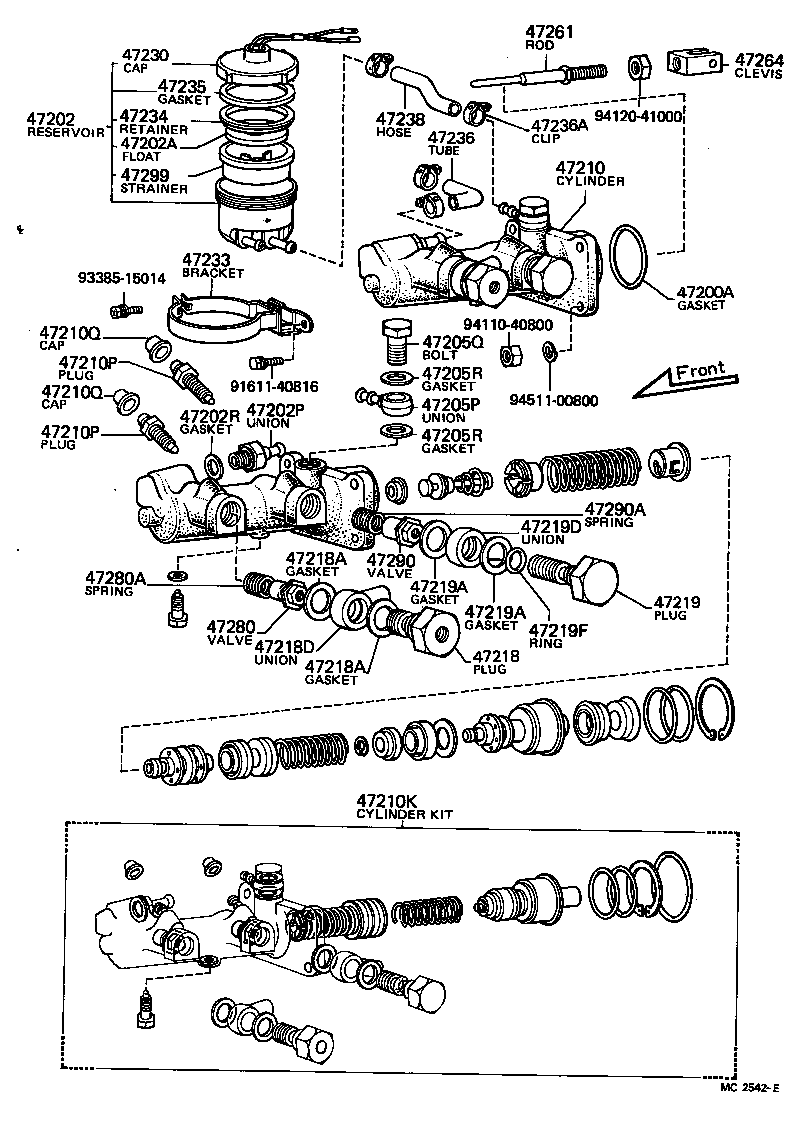

Brake Master Cylinder
43 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 47200 | Cylinder Assy, Brake Master |
| 47200A | Gasket, Master Cylinder |
| 47200L | Cup Kit, Brake Master, W/Booster |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202A | Float, Master Cylinder Reservoir |
| 47202E | Union(FOR MASTER CYLINDER RESERVOIR SET) |
| 47202F | Bolt, Union(FOR MASTER CYLINDER RESERVOIR SET) |
| 47202G | Gasket(FOR MASTER CYLINDER RESERVOIR SET) |
| 47202H | Nut, Hexagon(FOR MASTER CYLINDER RESERVOIR SET) |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47205P | Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47205Q | Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE) |
| 47205R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210P | Plug, Bleeder(FOR BRAKE MASTER CYLINDER) |
| 47210Q | Cap, Bleeder Plug(FOR BRAKE MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47218D | Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47219D | Union(FOR FLUID OUTLET REAR SIDE) |
| 47219F | Ring, O(FOR FLUID OUTLET REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47233 | Bracket, Reservoir |
| 47234 | Retainer, Reservoir Gasket |
| 47235 | Gasket, Reservoir |
| 47236 | Tube, Reservoir Brake |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47238 | Hose, Master Cylinder Bridge |
| 47261 | Rod, Master Cylinder Push |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
