Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

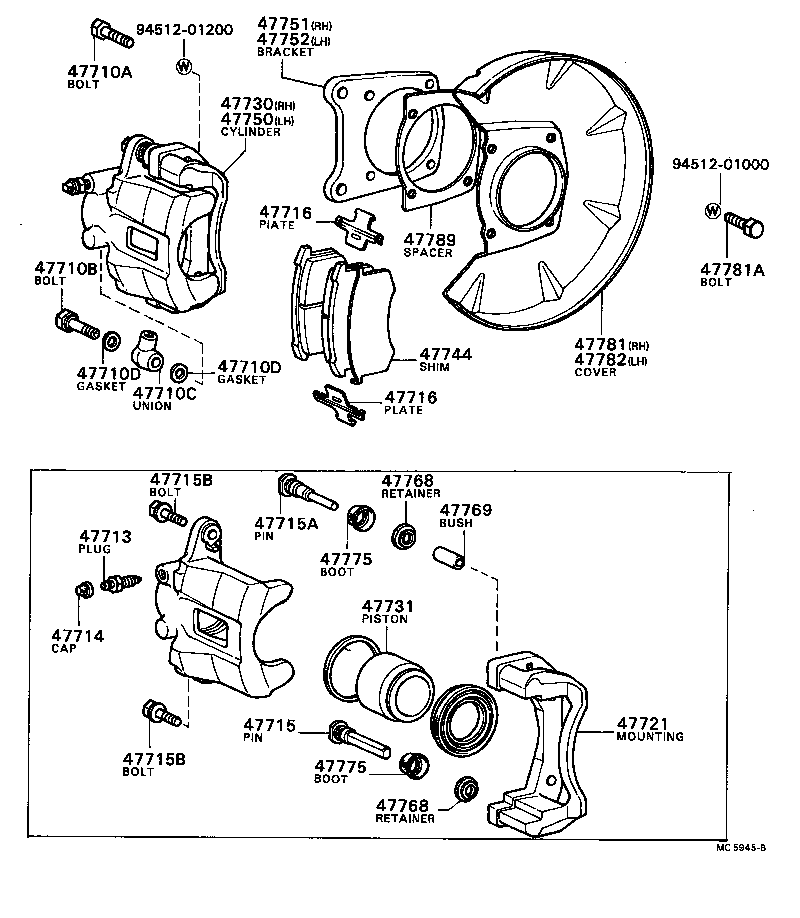

Front Disc Brake Caliper & Dust Cover
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 47710 | Caliper Assy, Disc Brake, Front, RH |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47710B | Bolt, Union(FOR FRONT DISC BRAKE CALIPER) |
| 47710C | Union(FOR FRONT DISC BRAKE CALIPER) |
| 47710D | Gasket(FOR FRONT DISC BRAKE CALIPER UNION) |
| 47710K | Cylinder Kit, Disc Brake, Front |
| 47710L | Pad Kit, Disc Brake, Front |
| 47710N | Seal Kit, Disc Brake, Front |
| 47713 | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47714 | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47715 | Pin, Main(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47715A | Pin, Front Disc Brake Cylinder Slide |
| 47715B | Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47716 | Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) |
| 47720 | Caliper Assy, Disc Brake, Front, LH |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47742 | Retainer, Front Disc Brake Cylinder Boot |
| 47744 | Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE) |
| 47745 | Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE) |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47748A | Clip(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47748B | Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47751 | Bracket, Caliper Support, RH |
| 47752 | Bracket, Caliper Support, LH |
| 47755 | Shim, Caliper Support, NO.1 |
| 47768 | Retainer, Dust Seal |
| 47769 | Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) |
| 47775 | Boot, Bush Dust(FOR FRONT DISC BRAKE) |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47782 | Cover, Disc Brake Dust, Front LH |
| 47789 | Spacer, Dust Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
