Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03
Rear Drum Brake Wheel Cylinder & Backing Plate

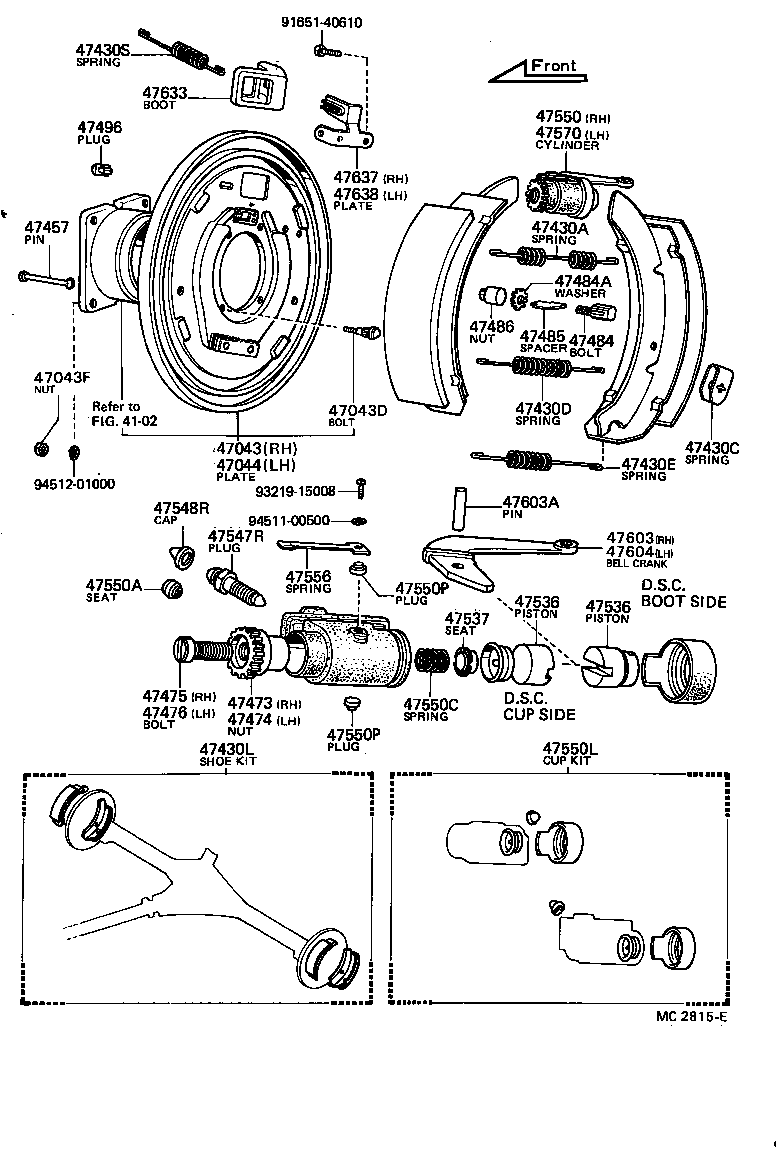

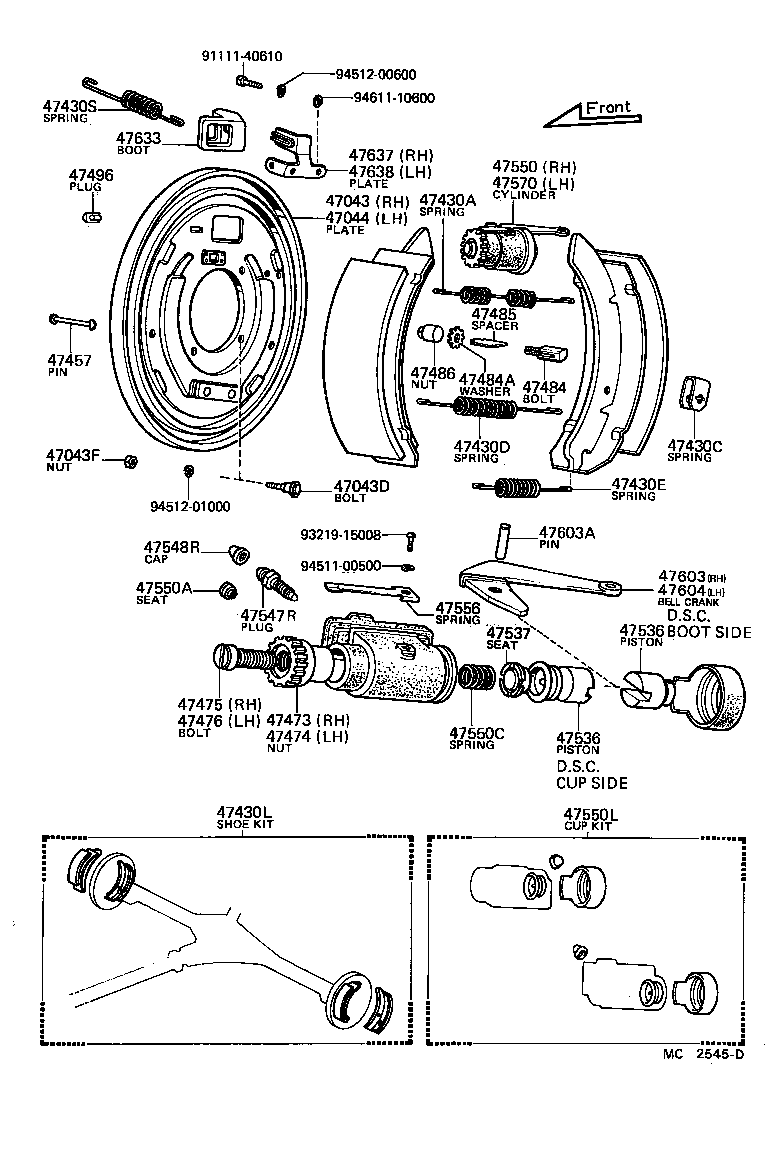

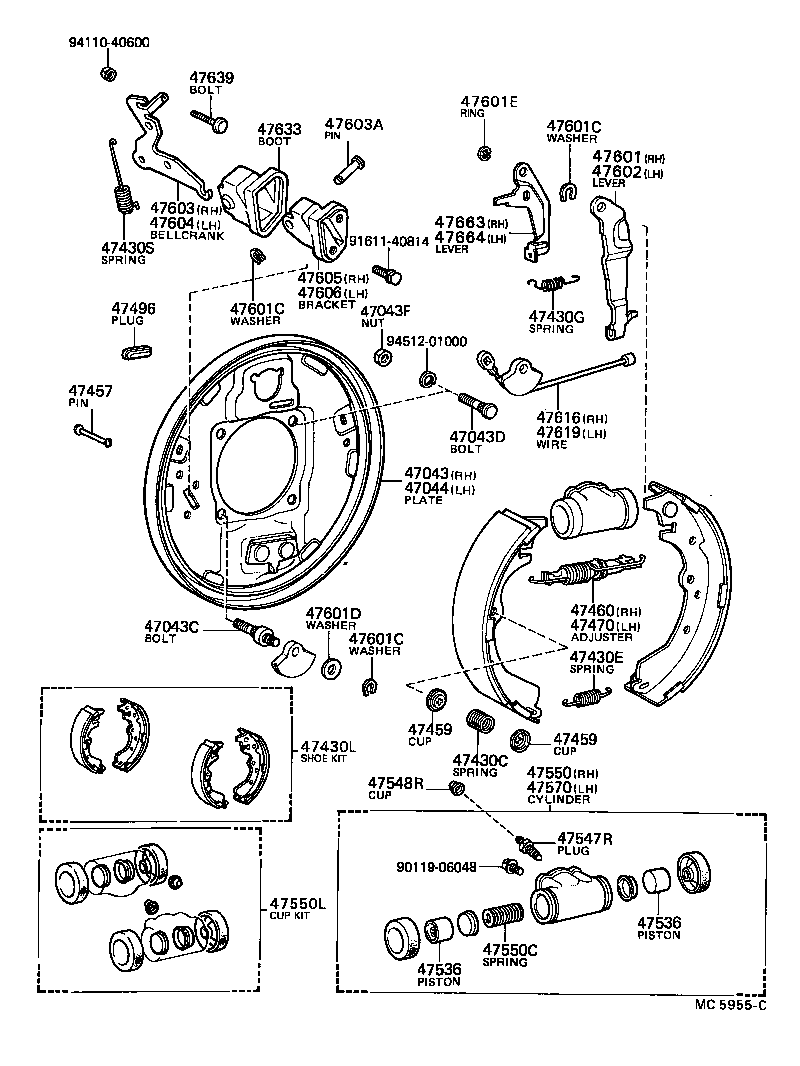

58 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043D | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47430 | Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE) |
| 47430A | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47430L | Shoe Kit, Rear Brake |
| 47430S | Spring, Tension(FOR PARKING BRAKE SHOE STRUT) |
| 47440 | Shoe Assy, Rear Brake(FOR REAR OR LOWER SIDE) |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47473 | Nut, Rear Wheel Cylinder Adjusting, RH(FOR REAR BRAKE) |
| 47474 | Nut, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47484 | Bolt, Rear Brake Shoe Retracting Spring Clamp |
| 47484A | Washer, Toothed(FOR REAR BRAKE SHOE RETRACTING SPRING) |
| 47485 | Spacer OR Holder, Shoe Retracting Spring Clamp |
| 47486 | Nut, Rear Brake Shoe Retracting Spring Clamp |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47537 | Seat, Wheel Cylinder Piston Spring(FOR REAR BRAKE) |
| 47545 | Boot, Wheel Cylinder(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550A | Seat, Union(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550B | Cup, Cylinder(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550L | Cup Kit, Rear Wheel Cylinder |
| 47550P | Plug, Hole(FOR REAR BRAKE WHEEL CYLINDER) |
| 47556 | Spring, Adjuster Lock(FOR REAR BRAKE) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601D | Washer, Wave(FOR REAR BRAKE) |
| 47601E | Ring, E(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47603 | Bellcrank Sub-assy, Parking Brake, RH(FOR REAR BRAKE) |
| 47603A | Pin, W/Hole(FOR REAR BRAKE) |
| 47604 | Bellcrank Sub-assy, Parking Brake, LH (FOR REAR BRAKE) |
| 47605 | Bracket Sub-assy, Bell Crank, RH (FOR REAR BRAKE) |
| 47606 | Bracket Sub-assy, Bell Crank, LH (FOR REAR BRAKE) |
| 47616 | Wire, Parking Brake, RH |
| 47619 | Wire, Parking Brake, LH |
| 47633 | Boot, Parking Brake Bellcrank |
| 47637 | Plate, Bellcrank Support, RH(FOR REAR BRAKE) |
| 47638 | Plate, Bellcrank Support, LH(FOR REAR BRAKE) |
| 47639 | Bolt, Rear Brake Bellcrank Stopper |
| 47663 | Lever, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47664 | Lever, Automatic Adjust, LH(FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
