Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

29 part groups · 2 illustrations

Illustrations

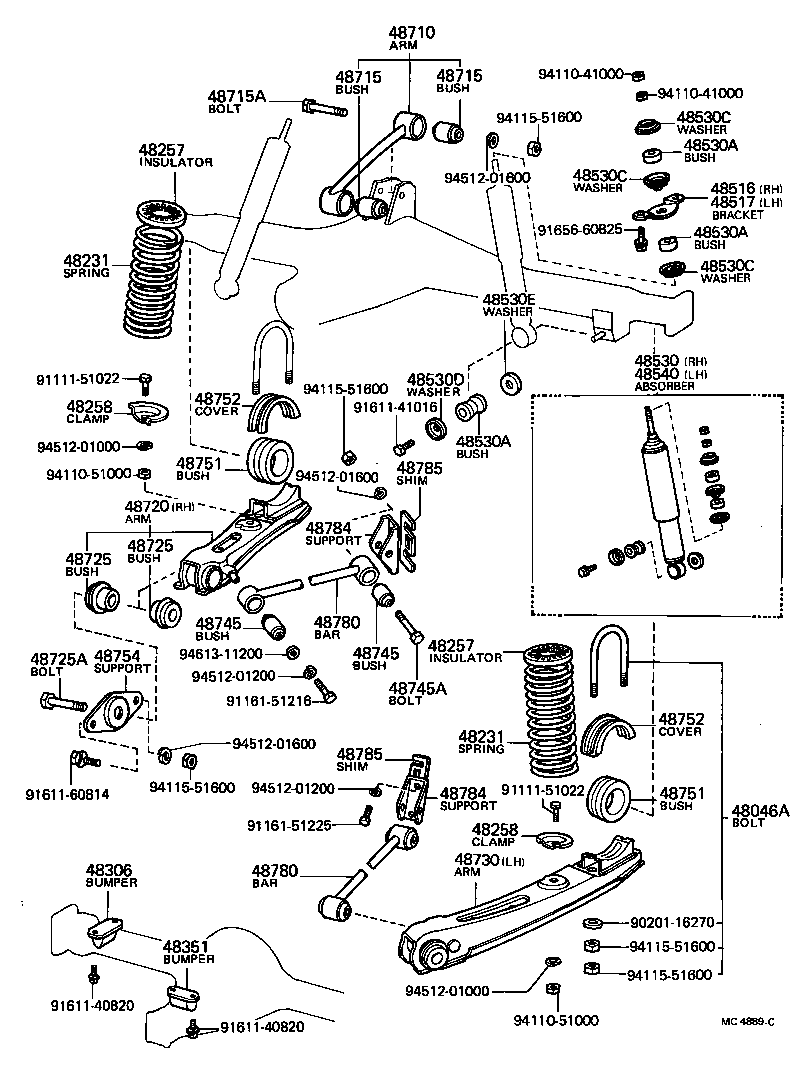

Figure MC2550D MC2550D 1967-11 → 1977-01 Figure MC4889C MC4889C 1977-01 → —

Part groups

PNCDescription
48046A Bolt, U(FOR REAR SPRING)
48231 Spring, Coil, Rear
48257 Insulator, Rear Coil Spring
48258 Clamp, Rear Coil Spring
48306 Bumper Sub-assy, Rear Spring
48351 Bumper, Differential Carrier
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48710 Arm Assy, Upper Control
48715 Bush, Upper Control Arm
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48751 Bush, Rear Axle Mounting
48752 Cover, Rear Axle Bush
48754 Support, Lower Arm Pin
48780 Bar Assy, Strut
48784 Support, Strut Bar Pin
48785 Shim, Strut Bar Adjust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
