Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

25 part groups · 2 illustrations

Illustrations

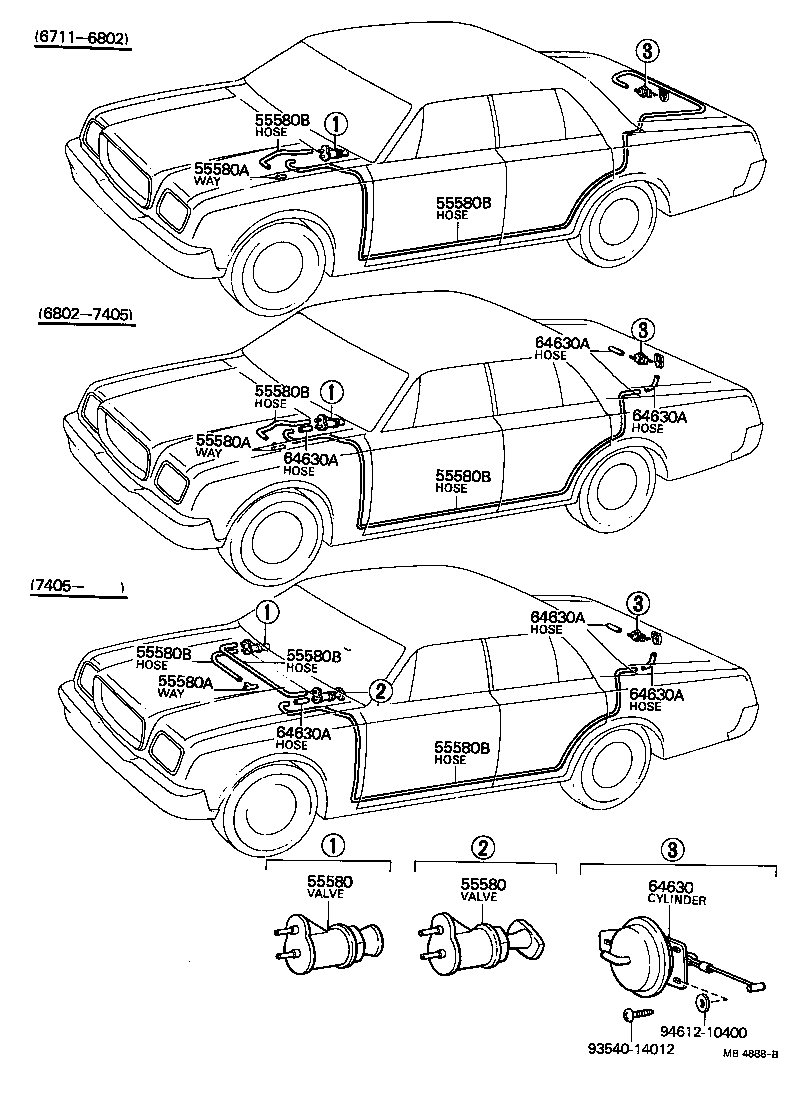

Figure MB0195K MB0195K 1967-11 → — Figure MB4888B MB4888B 1967-11 → —

Part groups

PNCDescription
55580 Valve Assy, Luggage Lock Release
55580A Way, 3(FOR LUGGAGE LOCK RELEASE VALVE)
55580B Hose(FOR LUGGAGE LOCK RELEASE VALVE)
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401B Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64501 Hinge Sub-assy, Luggage Compartment Door, RH
64502 Hinge Sub-assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64548 Spring, Luggage Compartment Door Hinge
64602 Striker Sub-assy, Luggage Compartment Door Lock
64620 Lock Assy, Luggage Compartment Door
64626 Cover, Luggage Compartment Door Lock
64630 Cylinder Assy, Luggage Lock Release
64630A Hose(FOR LUGGAGE LOCK RELEASE CYLINDER)
64650 Closer Assy, Luggage Door
64650A Pin(FOR LUGGAGE DOOR CLOSER)
64660 Cable Assy, Luggage Closer
64670 Damper Assy, Luggage Closer
64684 Support, Torque Rod Center
64691 Pin, Closer Damper
64691A Ring, E(FOR CLOSER DAMPER PIN)
64722 Cover, Luggage Compartment Trim, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
