Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

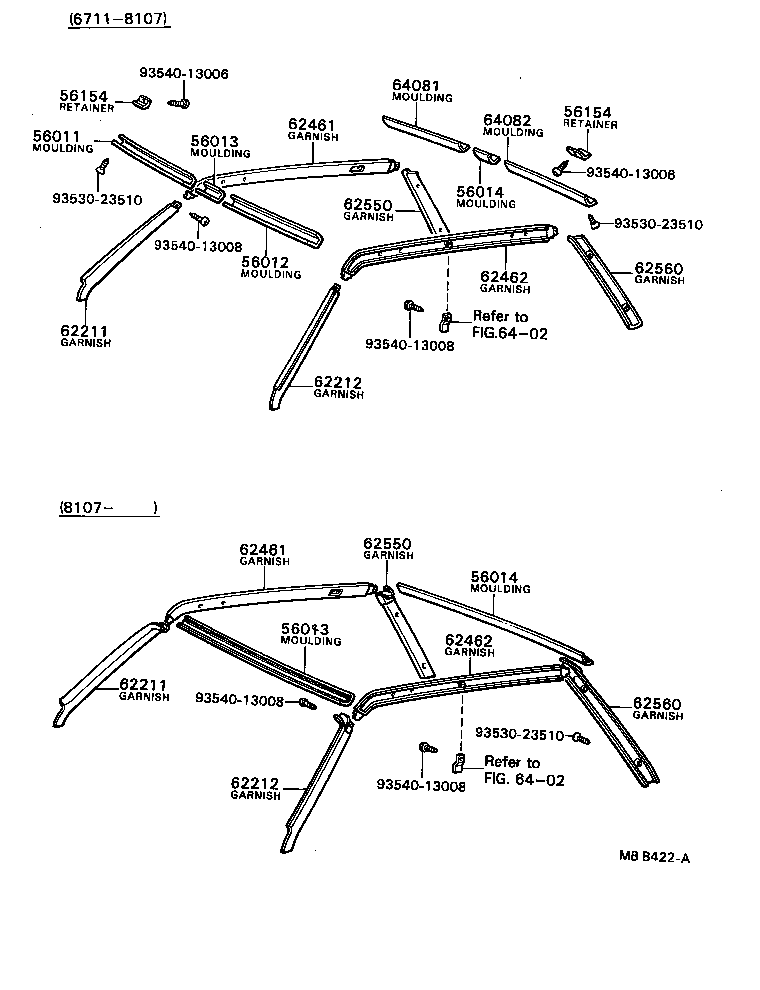

Inside Trim Board & Door Opening Trim Moulding
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56011 | Moulding Sub-assy, Front Window, Inner RH |
| 56012 | Moulding Sub-assy, Front Window, Inner LH |
| 56013 | Moulding Sub-assy, Front Window, Inner Center |
| 56014 | Moulding Sub-assy, Rear Inner |
| 56154 | Retainer, Window Inner Moulding |
| 62043 | Board Assy, Center Pillar Lower Trash Box |
| 62044 | Cover Assy, Center Pillar Lower Trash Box |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117 | Louver, Cowl Ventilator, RH |
| 62118 | Louver, Cowl Ventilator, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62431 | Moulding, Center Pillar Garnish |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62510 | Cover Assy, Back Window Side Garnish, RH |
| 62520 | Cover Assy, Back Window Side Garnish, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62550 | Garnish Assy, Rear Body Pillar, RH |
| 62560 | Garnish Assy, Rear Body Pillar, LH |
| 64081 | Moulding Sub-assy, Back Window, Inner RH |
| 64082 | Moulding Sub-assy, Back Window, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
