Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

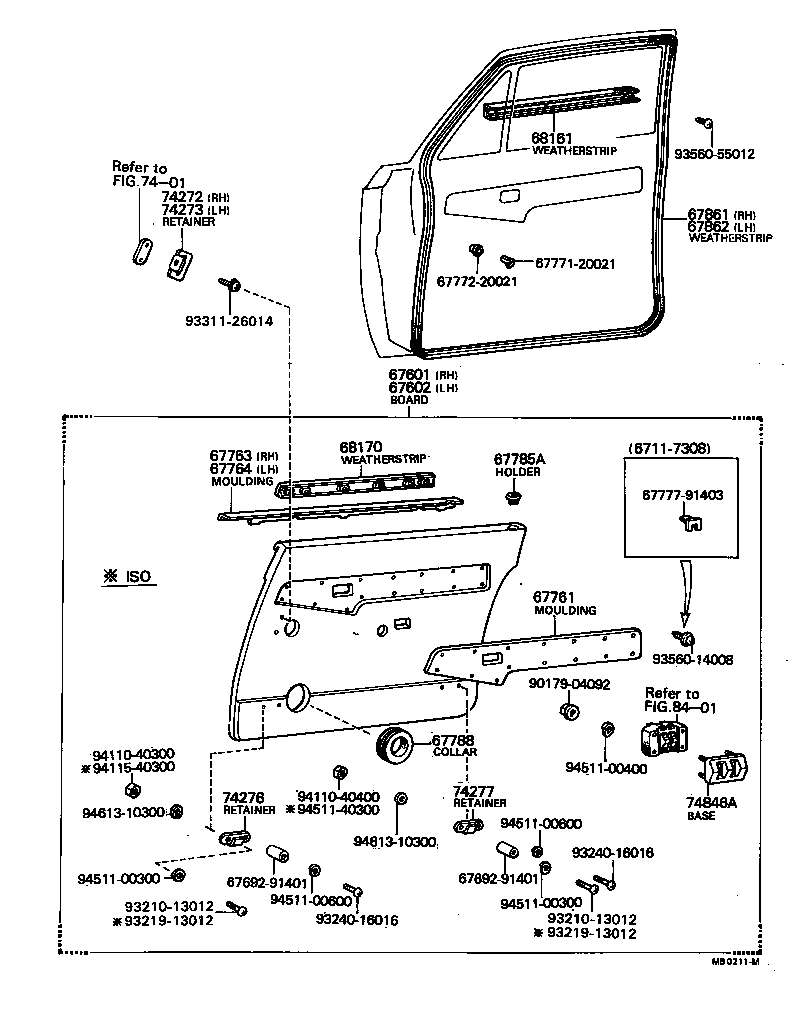

Front Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001B | Plug, Hole(FOR FRONT DOOR PANEL) |
| 67001C | Grommet(FOR FRONT DOOR PANEL) |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67041 | Frame Sub-assy, Front Door Window, RH |
| 67042 | Frame Sub-assy, Front Door Window, LH |
| 67106 | Batterfly, Front Door Inner Panel Vent |
| 67271 | Duct, Front Door Air, RH |
| 67272 | Duct, Front Door Air, LH |
| 67274 | Cushion, Air Duct |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67639 | Weatherstrip, Door Corner |
| 67761 | Moulding, Front Door Trim |
| 67763 | Moulding, Front Door Trim, Upper RH |
| 67764 | Moulding, Front Door Trim, Upper LH |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67788 | Collar, Front Door Trim |
| 67838 | Packing, Front Door Lock Hole |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68231 | Seal, Front Door Drain Hole Dust |
| 74272 | Retainer, Front Door Armrest Front, RH |
| 74273 | Retainer, Front Door Armrest Front, LH |
| 74276 | Retainer, Door Armrest Lower, NO.1 |
| 74277 | Retainer, Door Armrest Lower, NO.2 |
| 74846A | Base, Front Door Window Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
