Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

63 part groups · 13 illustrations

Illustrations

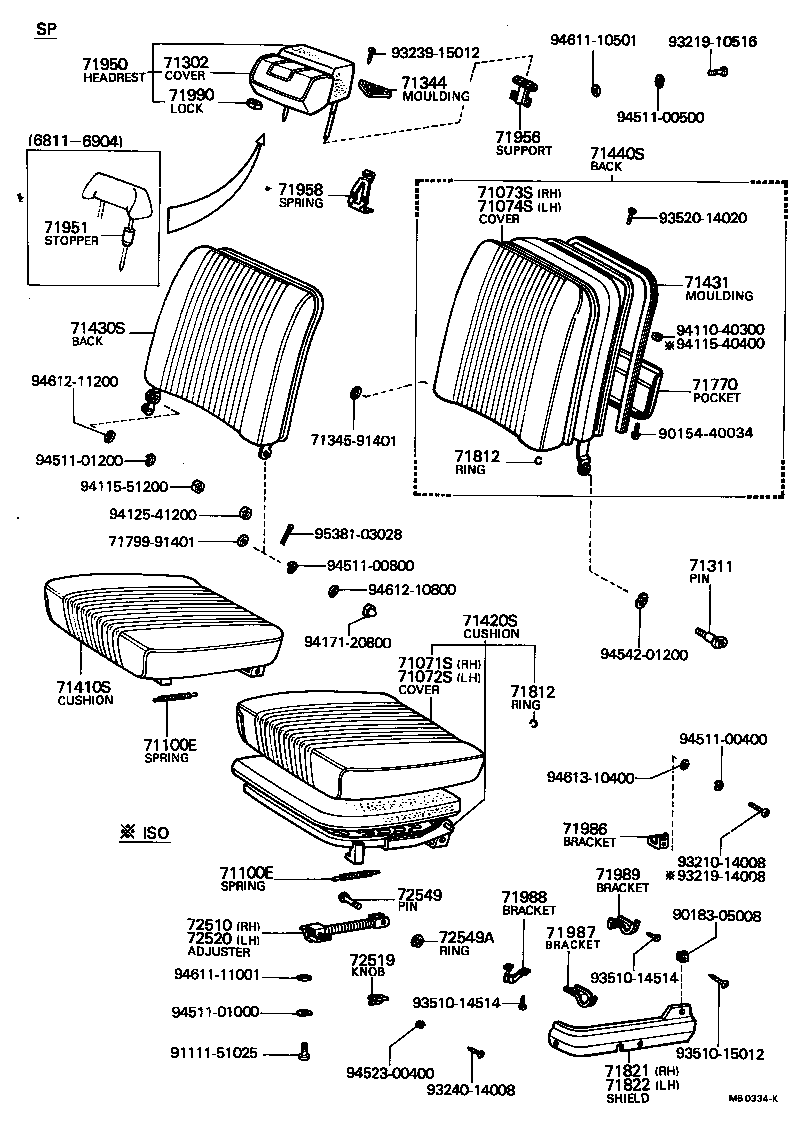

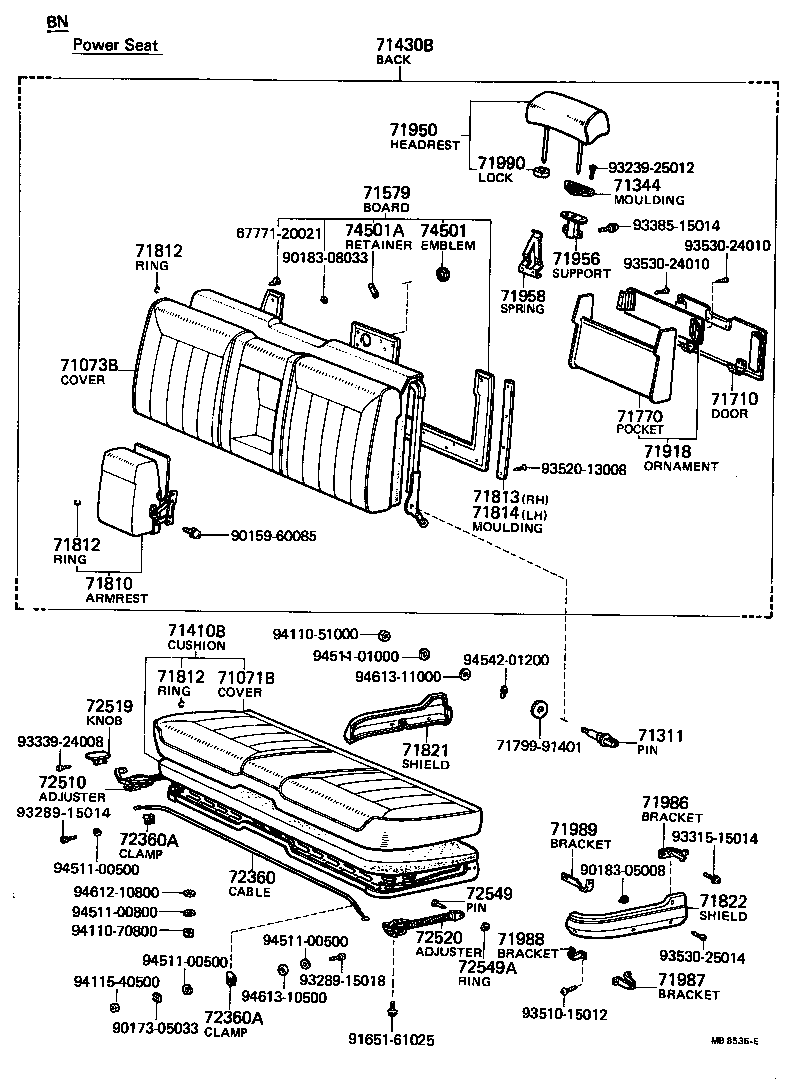

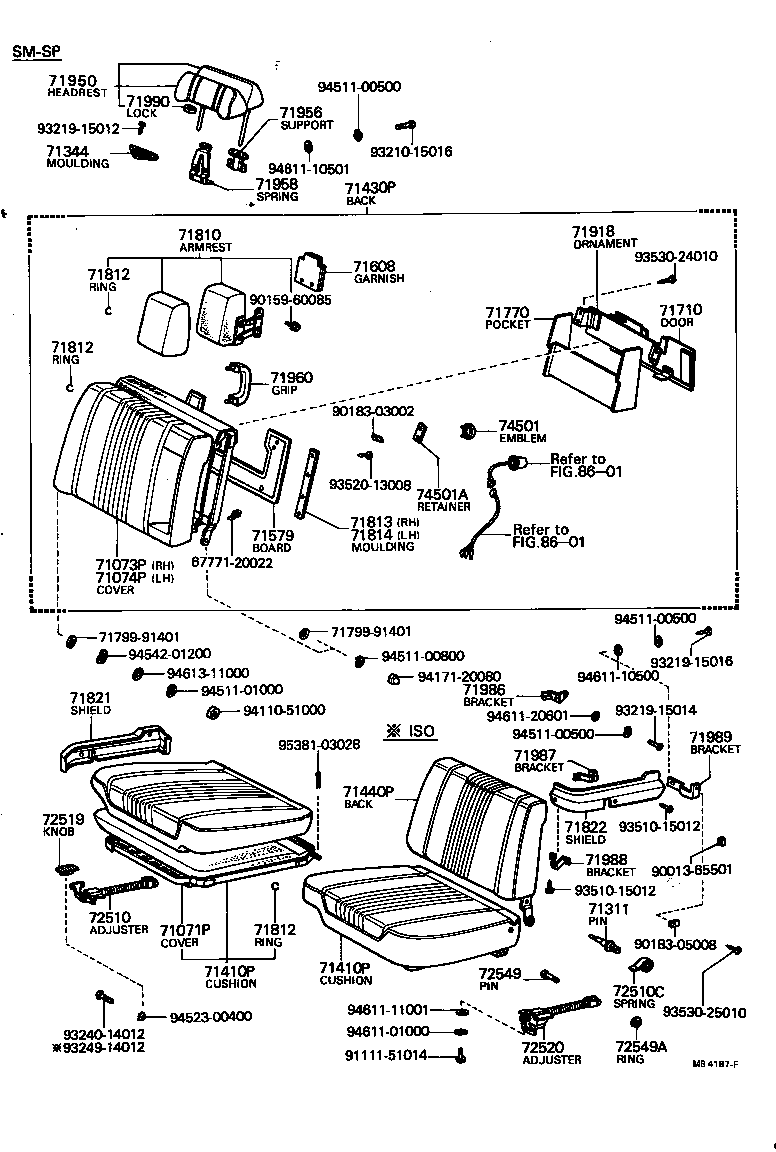

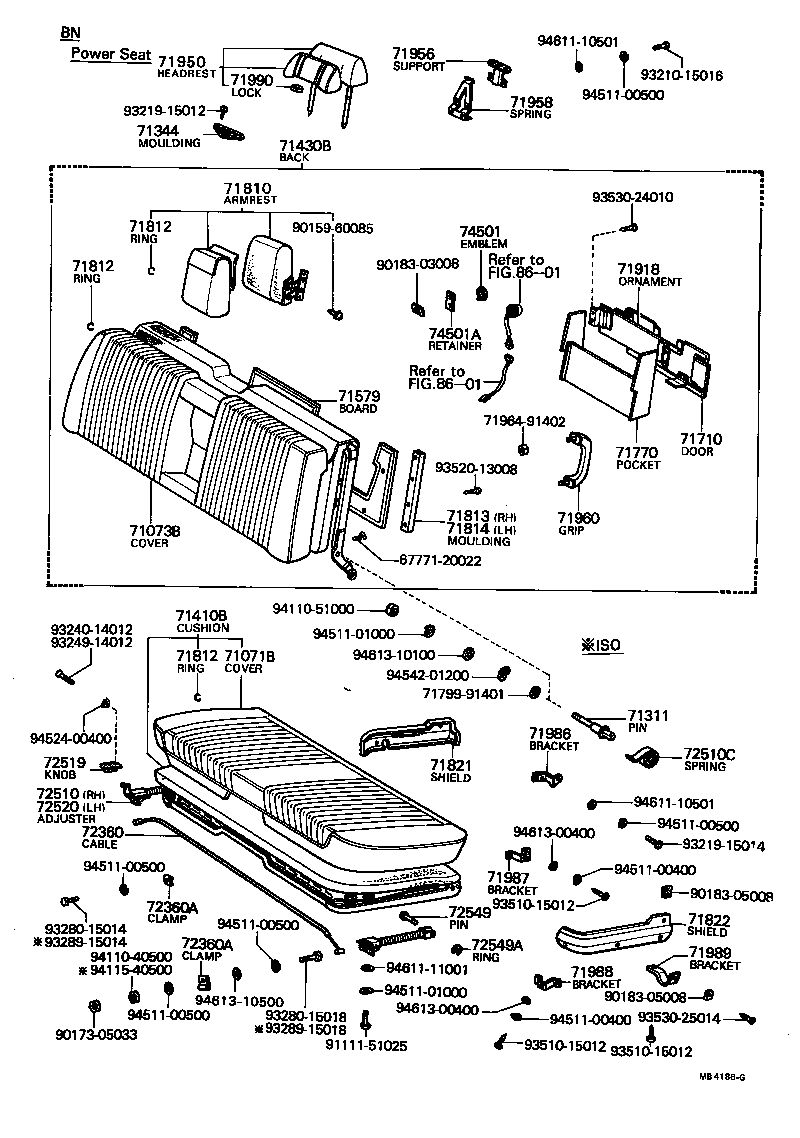

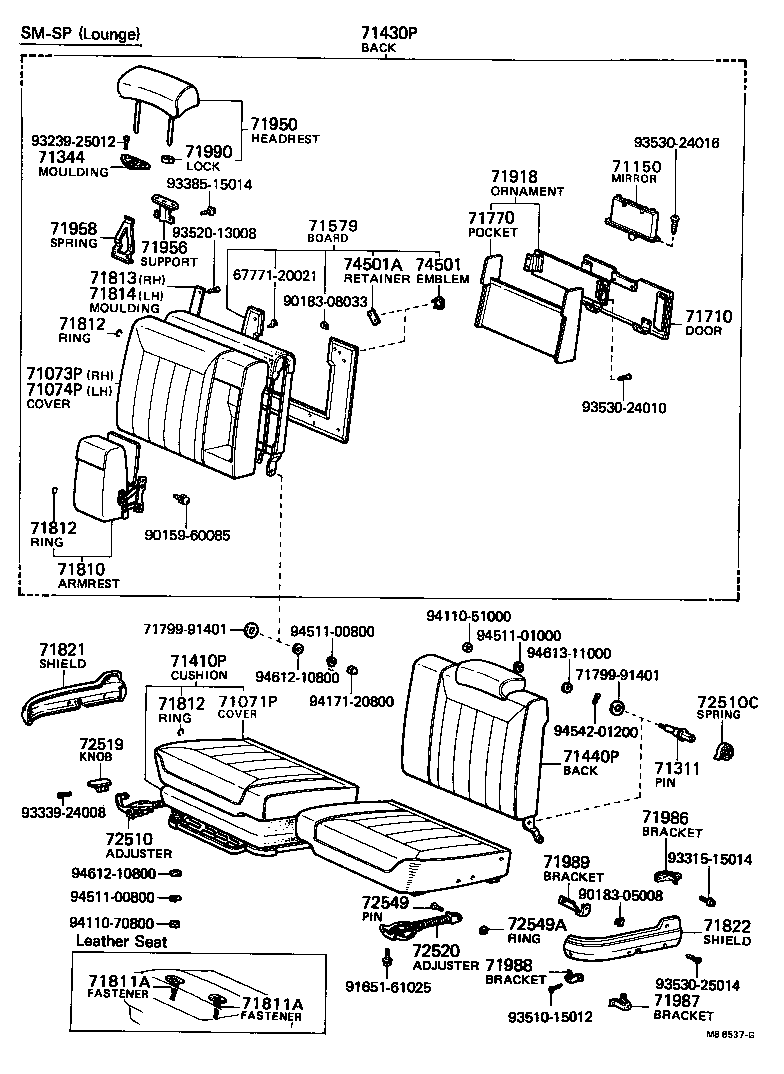

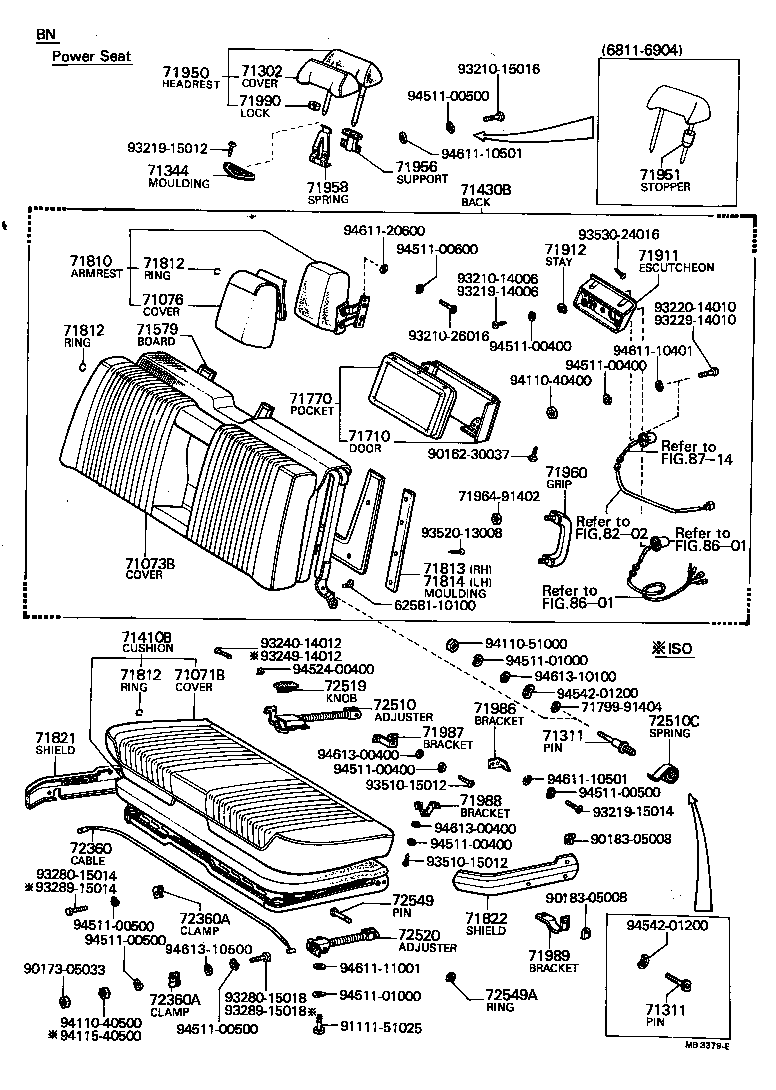

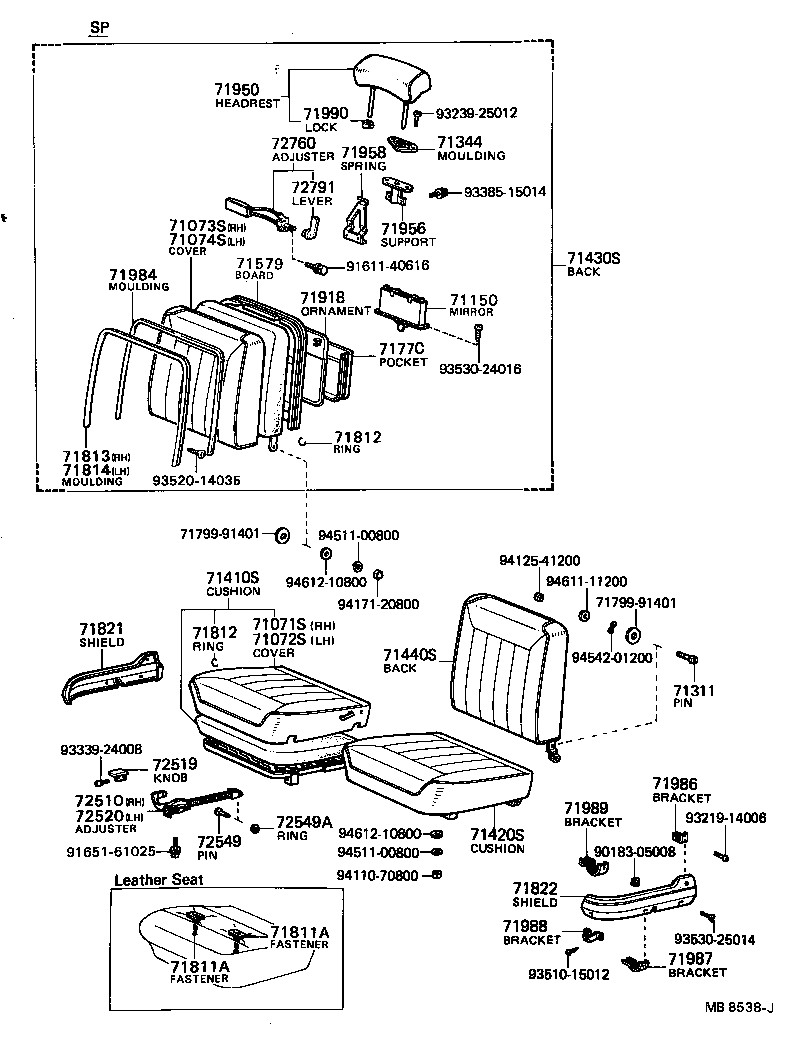

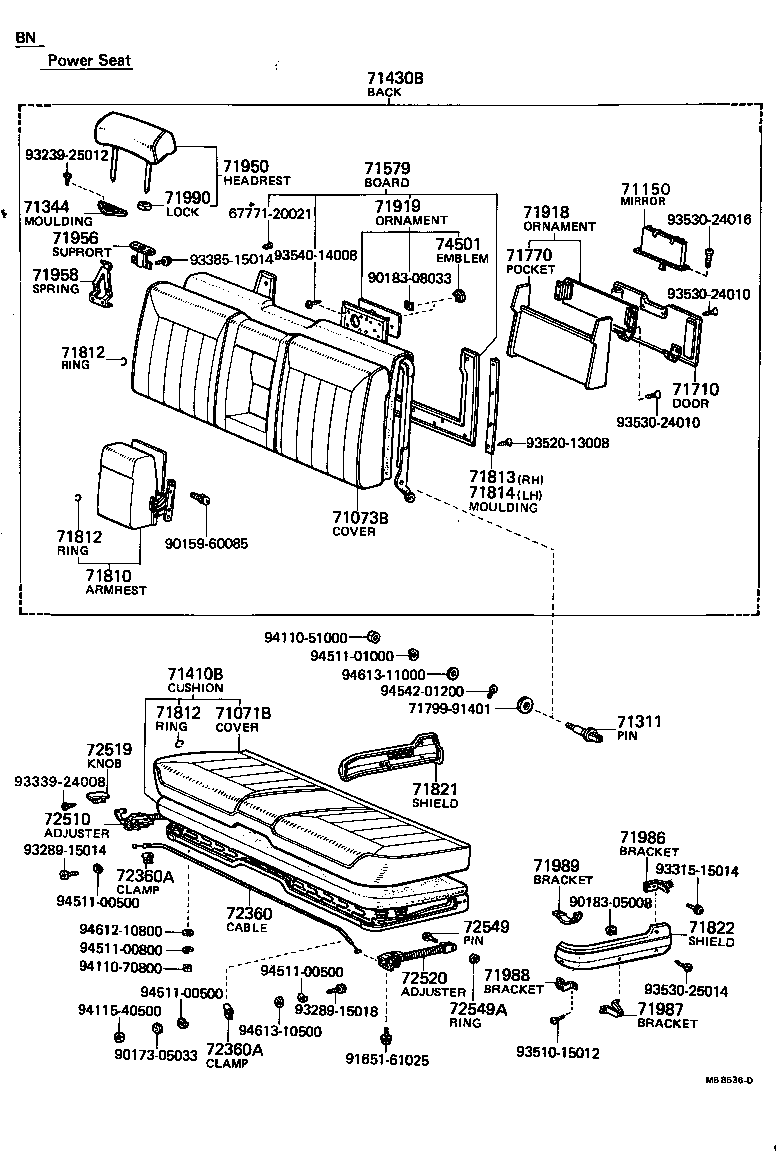

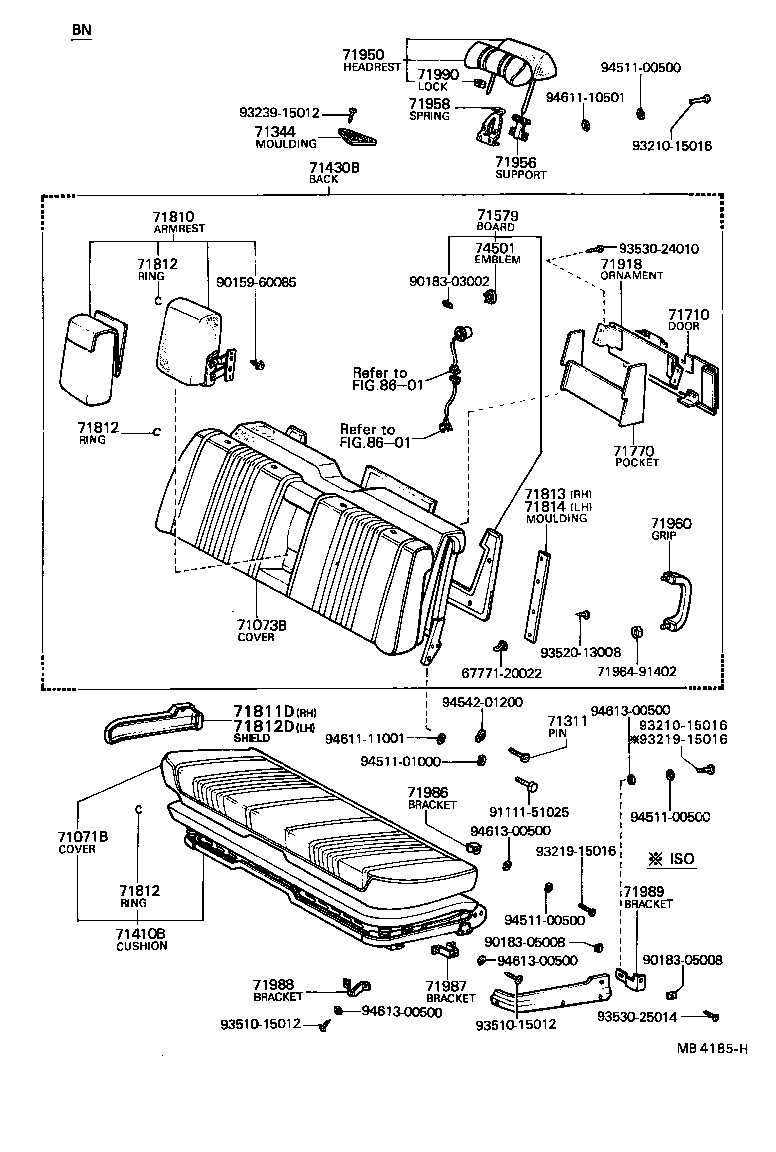

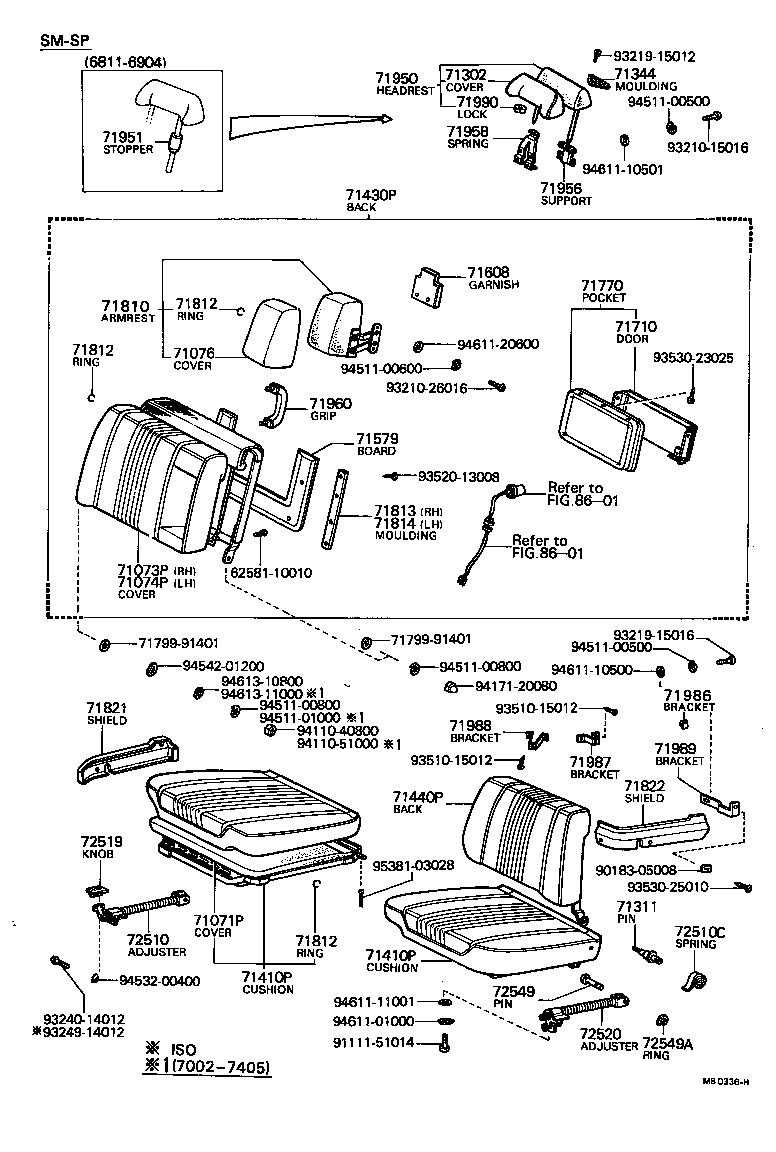

Figure MB0332H MB0332H 1967-11 → 1974-05 Figure MB4185H MB4185H 1974-05 → 1978-11 Figure MB3379E MB3379E 1967-11 → 1974-05 Figure MB4186G MB4186G 1974-05 → 1978-11 Figure MB0334K MB0334K 1967-11 → 1971-09 Figure MB0334K MB0334K 1973-03 → 1974-05 Figure MB0334K MB0334K 1973-03 → 1978-11 Figure MB0336H MB0336H 1967-11 → 1974-05 Figure MB4187F MB4187F 1974-05 → 1978-11 Figure MB8535E MB8535E 1978-11 → — Figure MB8536D MB8536D 1978-11 → — Figure MB8537G MB8537G 1978-11 → — Figure MB8538J MB8538J 1978-11 → —

Part groups

PNCDescription
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071P Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073P Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074P Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71076 Cover Sub-assy, Front Seat Center Armrest
71100E Spring, Tension (FOR FRONT SEAT)
71150 Mirror Assy, Vanity
71302 Cover, Front Seat Headrest
71311 Pin, Front Seat Hinge
71344 Moulding, Front Seat Headrest
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410P Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430P Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71431 Moulding, Front Seatback
71440P Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71579 Board, Front Seatback
71608 Garnish Sub-assy, Front Seat Armrest, Inner
71710 Door Sub-assy, Front Seatback Pocket
71770 Pocket Sub-assy, Front Seatback
71810 Armrest Assy, Front Seat Center
71811A Fastener (FOR FRONT SEAT COVER)
71811D Shield, Front Seat Cushion, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812D Shield, Front Seat Cushion, LH
71813 Moulding, Front Seat Back Panel Set, RH
71814 Moulding, Front Seatback Panel Set, LH
71911 Escutcheon, Front Seatback Center
71912 Stay, Front Seatback Center Escutcheon
71918 Ornament Sub-assy, Front Seatback Side
71919 Ornament Sub-assy, Front Seatback Center
71950 Headrest Assy, Front Seat
71951 Stopper, Front Seat Headrest
71956 Support, Headrest
71958 Spring, Front Seat Headrest
71960 Grip Assy, Front Seat Assist
71984 Moulding, Front Seatback Panel Set, NO.2
71986 Bracket, Front Seat Side Shield, NO.1
71987 Bracket, Front Seat Side Shield, NO.2
71988 Bracket, Front Seat Side Shield, NO.3
71989 Bracket, Front Seat Side Shield, NO.4
71990 Lock Assy, Front Seat Headrest
72360 Cable Assy, Reclining Adjuster Equalizing
72360A Clamp(FOR EQUALIZING CABLE)
72510 Adjuster Assy, Reclining Seatback, RH
72510C Spring, Spiral(FOR RECLINING SEAT ADJUSTER)
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72549 Pin, Reclining Yoke
72549A Ring, E (FOR RECLINING YOKE PIN)
72760 Adjuster Assy, Lumbar Support, RH
72791 Lever, Lumbar Support
74501 Emblem Sub-assy, Seat
74501A Retainer, Seat Emblem
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
