Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

12 part groups · 3 illustrations

Illustrations

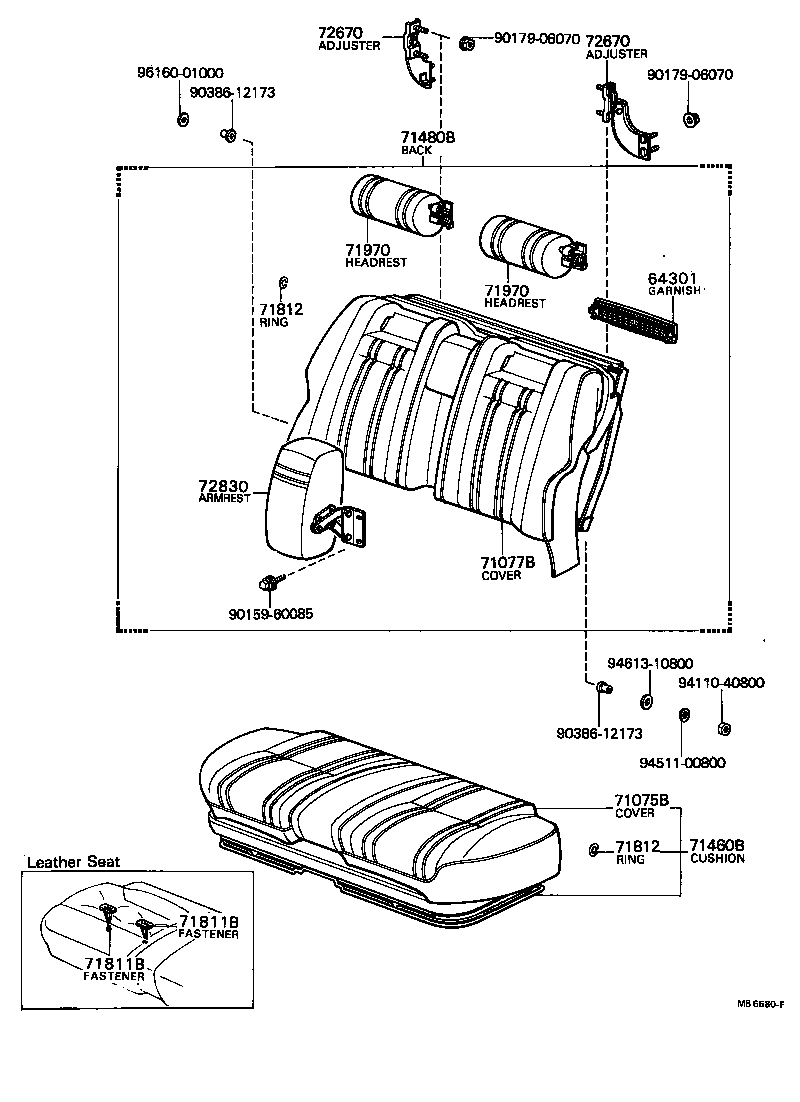

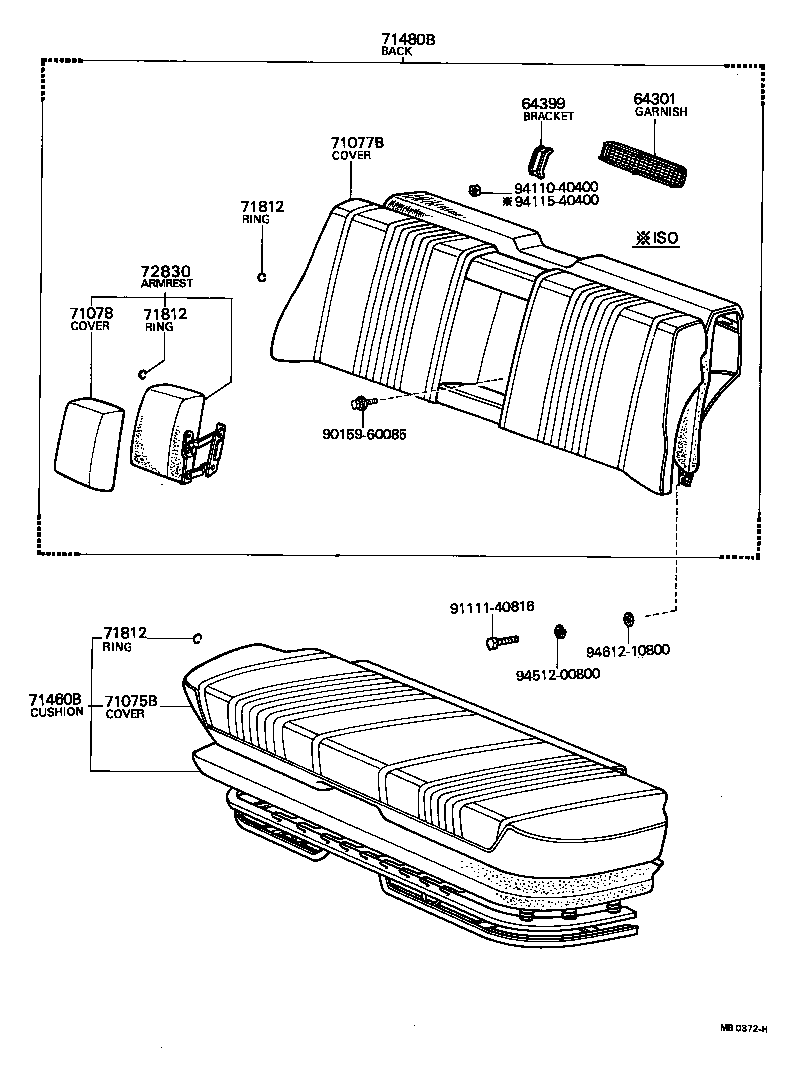

Figure MB0371E MB0371E 1967-11 → 1971-09 Figure MB0372H MB0372H 1967-11 → 1977-01 Figure MB6580F MB6580F 1977-01 → —

Part groups

PNCDescription
64301 Garnish Sub-assy, Air Purifier Suction
64399 Bracket, Air Purifier Suction Garnish
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078 Cover Sub-assy, Rear Seat Center Armrest
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71811B Fastener (FOR REAR SEAT COVER)
71888 Guide, Seat Belt Slide
71970 Headrest Assy, Rear Seat
72670 Adjuster Assy, Rear Seatback, Outside
72830 Armrest Assy, Rear Seat, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
