Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

28 part groups · 3 illustrations

Illustrations

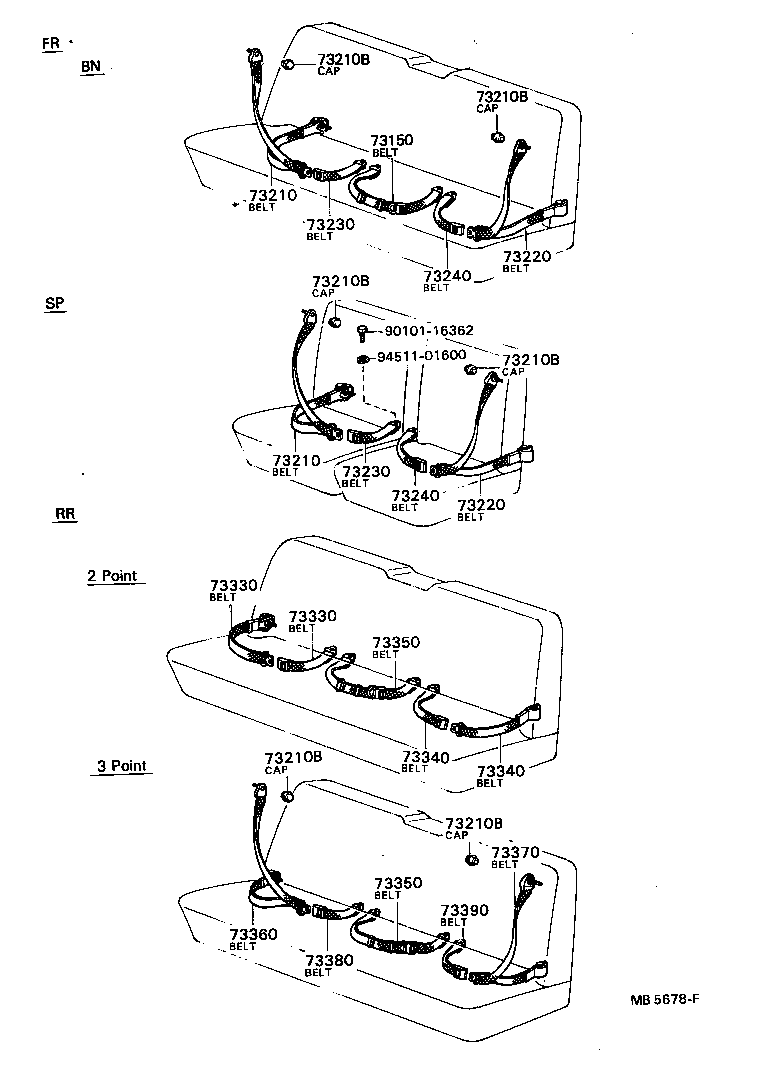

Figure MB5676D MB5676D 1967-11 → 1975-11 Figure MB5677C MB5677C 1967-11 → 1975-11 Figure MB5678F MB5678F 1975-11 → —

Part groups

PNCDescription
71788 Guide,Seat Belt Slide
71789 Cover, Seat Belt
71789A Ring(FOR SEAT BELT COVER)
71845 Bracket, Seat Belt Slide Guide
71846 Guide, Seat Belt Slide, NO.2
71850C Bush (FOR SEAT HARNESS)
71851 Cover, Safety Band Anchor, Outer
71852 Cover, Safety Band Anchor, Inner
71853 Supporter, Safety Belt Anchor Cover, Outer
71854 Supporter, Safety Belt Anchor Cover, Inner
71890 Retractor Assy, Seat Harness Non-locking
71906 Roller Sub-assy, Seat Belt Tension
71967 Spring, Seat Belt Tension
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
