Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

25 part groups · 2 illustrations

Illustrations

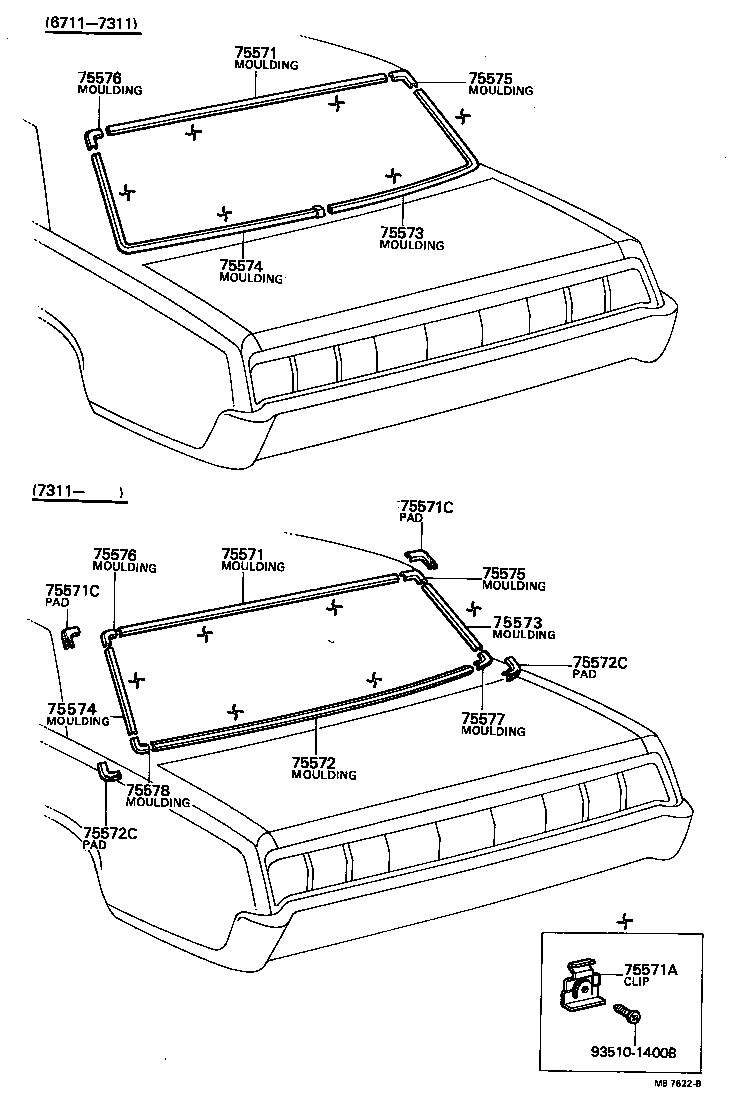

Figure MB4895G MB4895G 1967-11 → — Figure MB7622B MB7622B 1967-11 → —

Part groups

PNCDescription
58393 Pin(FOR BODY LOWER BACK CENTER MOULDING HINGE)
58394 Spring(FOR BODY LOWER BACK CENTER MOULDING HINGE)
58395 Hinge, Body Lower Back Moulding, Center RH
58396 Hinge, Body Lower Back Moulding, Center LH
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75571C Pad, Back Window Moulding, Upper
75572 Moulding, Back Window, Lower
75572C Pad, Back Window Moulding, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
75830B Pad, Body Lower Back Finish Panel
75837 Moulding, Body Lower Back Finish Panel, Center
75837A Cushion(FOR BODY LOWER BACK PANEL CENTER MOULDING)
75841 Moulding, Body Lower Back Panel, RH
75841E Shield(FOR BODY LOWER BACK MOULDING)
75842 Moulding, Body Lower Back Panel, LH
75844 Plate, Body Lower Back Panel Center Moulding
75861 Moulding, Quarter Panel Back, RH
75862 Moulding, Quarter Panel Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
