Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03

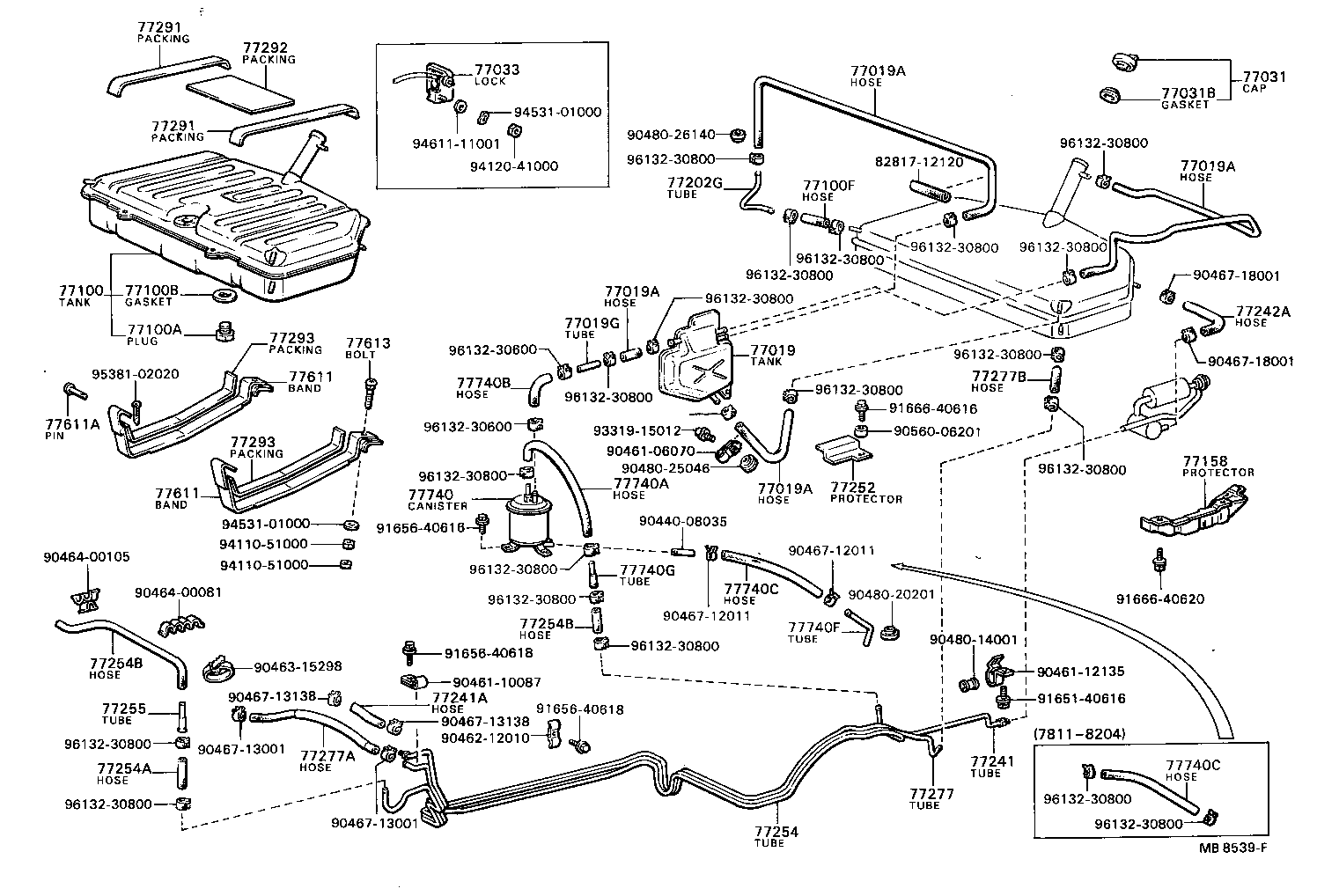

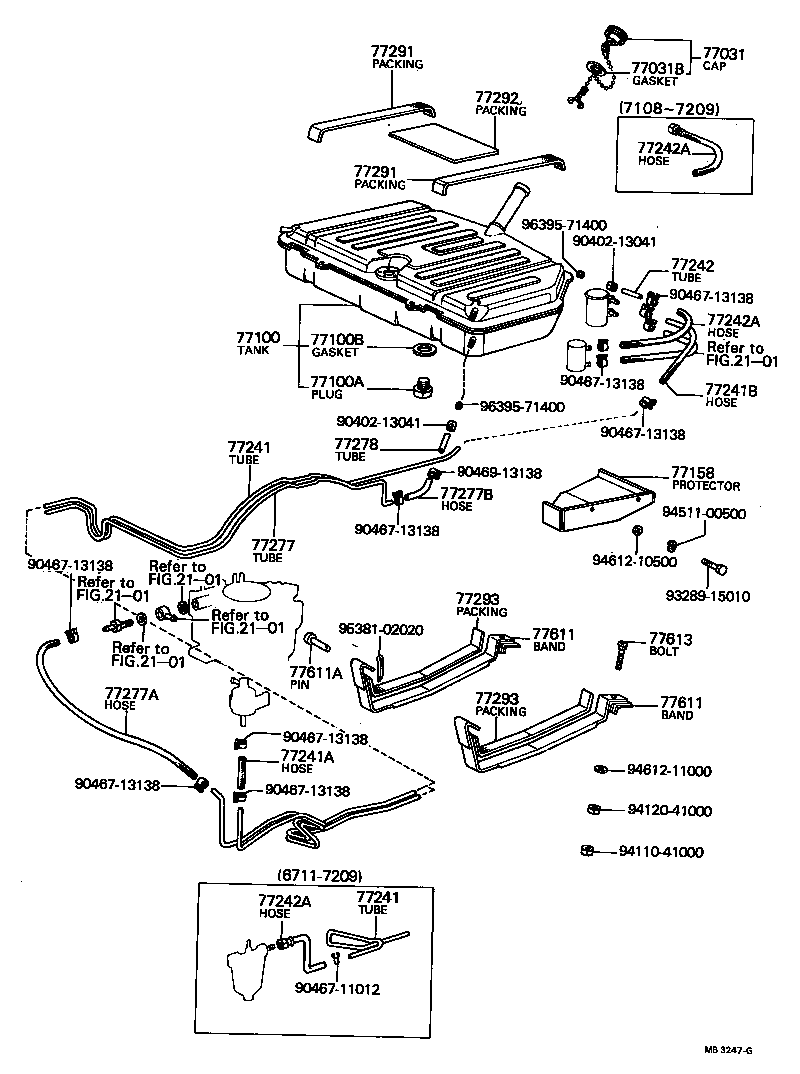

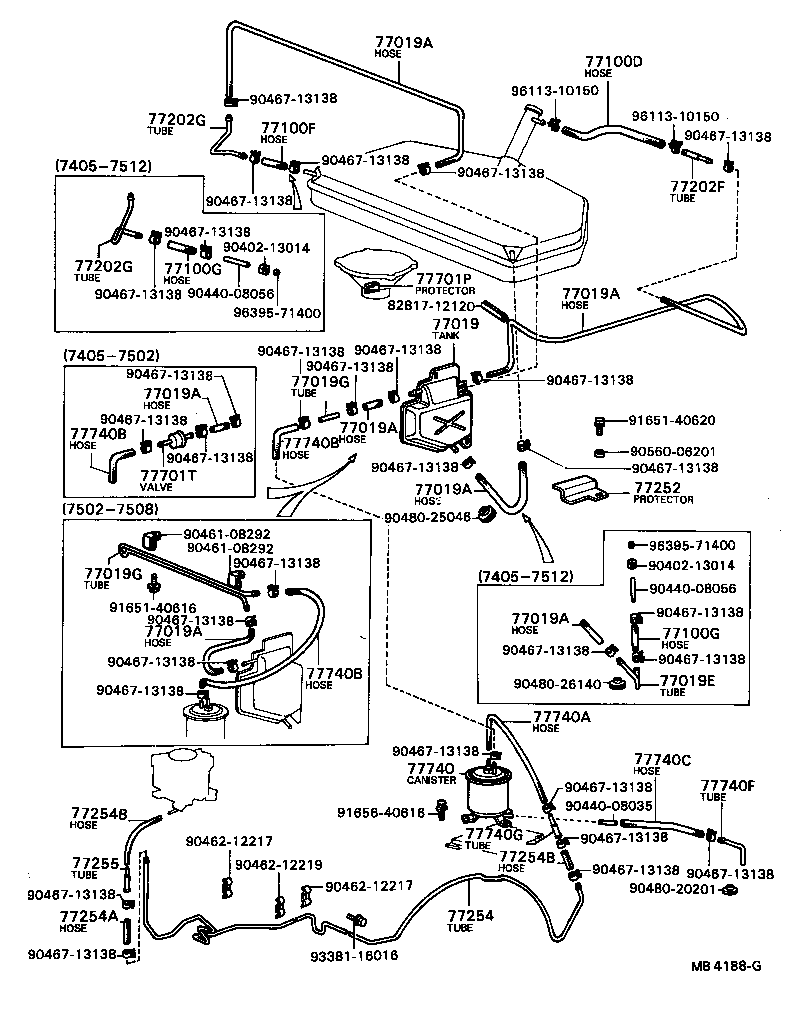

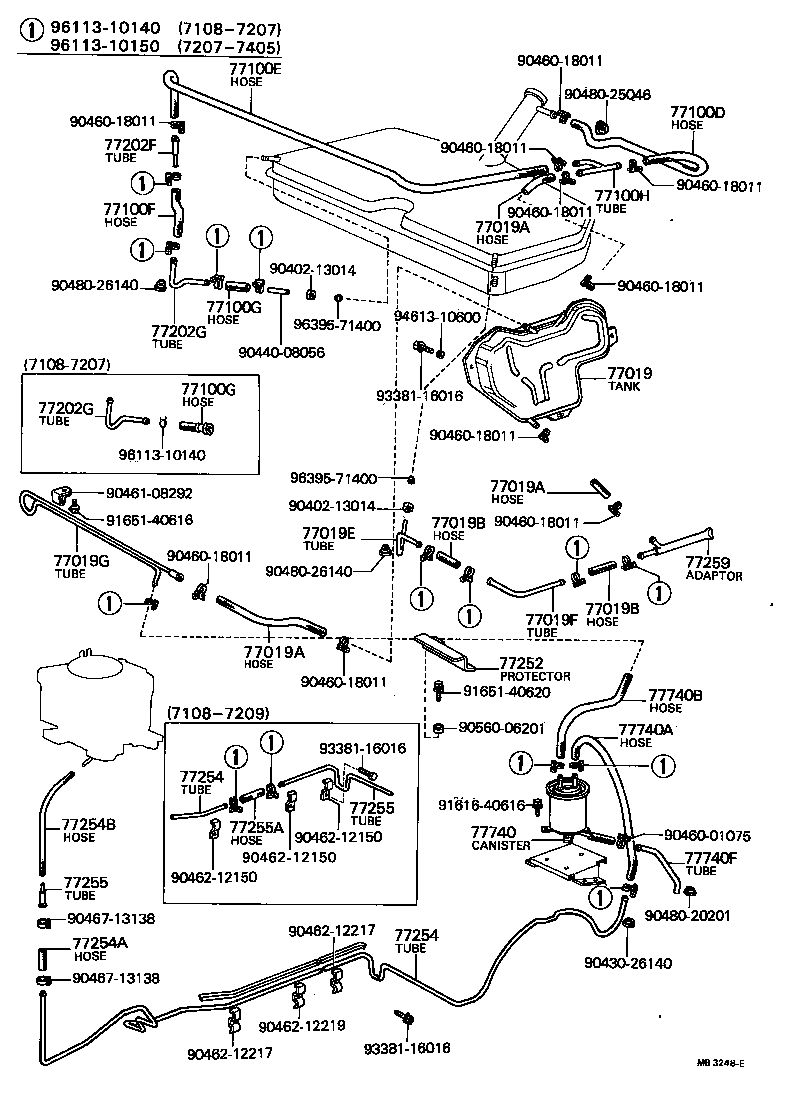

Fuel Tank & Tube
50 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 77019 | Tank Sub-assy, Fuel Expansion |
| 77019A | Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK) |
| 77019B | Hose, Fuel, NO.2(FOR FUEL EXPANSION TANK) |
| 77019E | Tube, Fuel, NO.1(FOR FUEL EXPANSION TANK) |
| 77019F | Tube, Fuel, NO.2(FOR FUEL EXPANSION TANK) |
| 77019G | Tube, Fuel, NO.3(FOR FUEL EXPANSION TANK) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77100F | Hose, Fuel, NO.3(FOR FUEL TANK) |
| 77100G | Hose, Fuel, NO.4(FOR FUEL TANK) |
| 77100H | Tube, Fuel, NO.1(FOR FUEL TANK) |
| 77158 | Protector, Fuel Pump And Filter |
| 77202F | Tube, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77202G | Tube, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77252 | Protector, Fuel Tube |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77259 | Adapter |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77278 | Tube, Fuel Return, NO.2 |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77292 | Packing, Fuel Tank, Center |
| 77293 | Packing, Fuel Tank, Lower |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77613 | Bolt, Fuel Tank Band Set |
| 77701P | Protector, Check Valve |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740G | Tube, Fuel, NO.2(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
