Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 6 illustrations

Illustrations

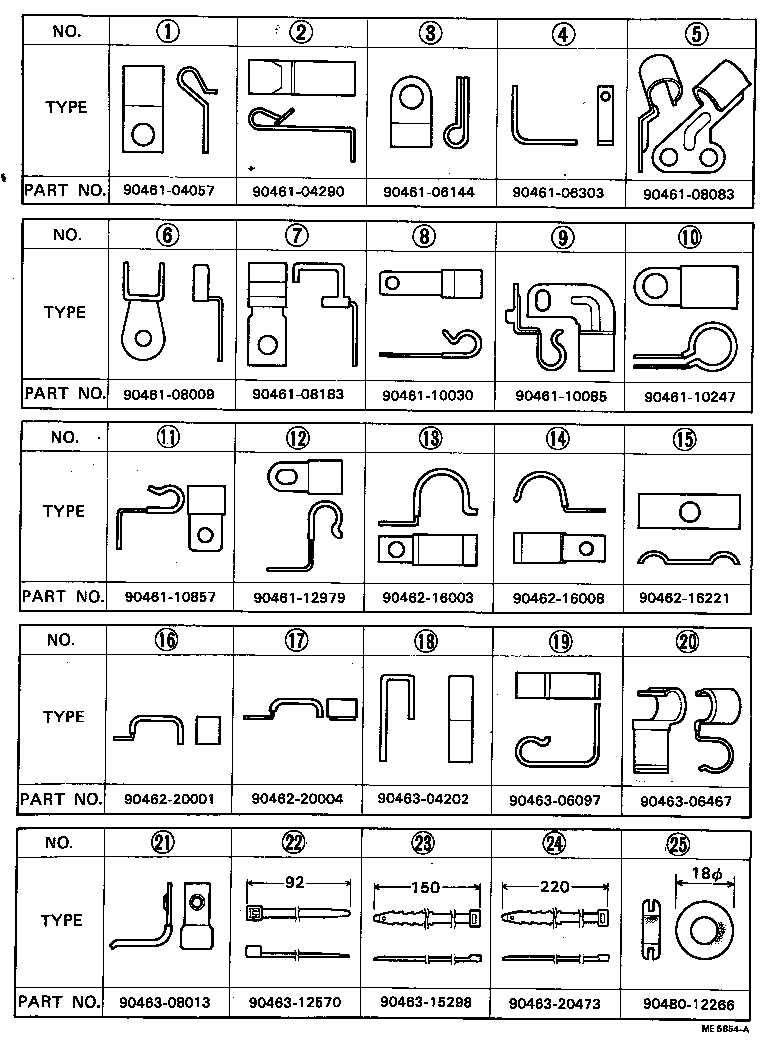

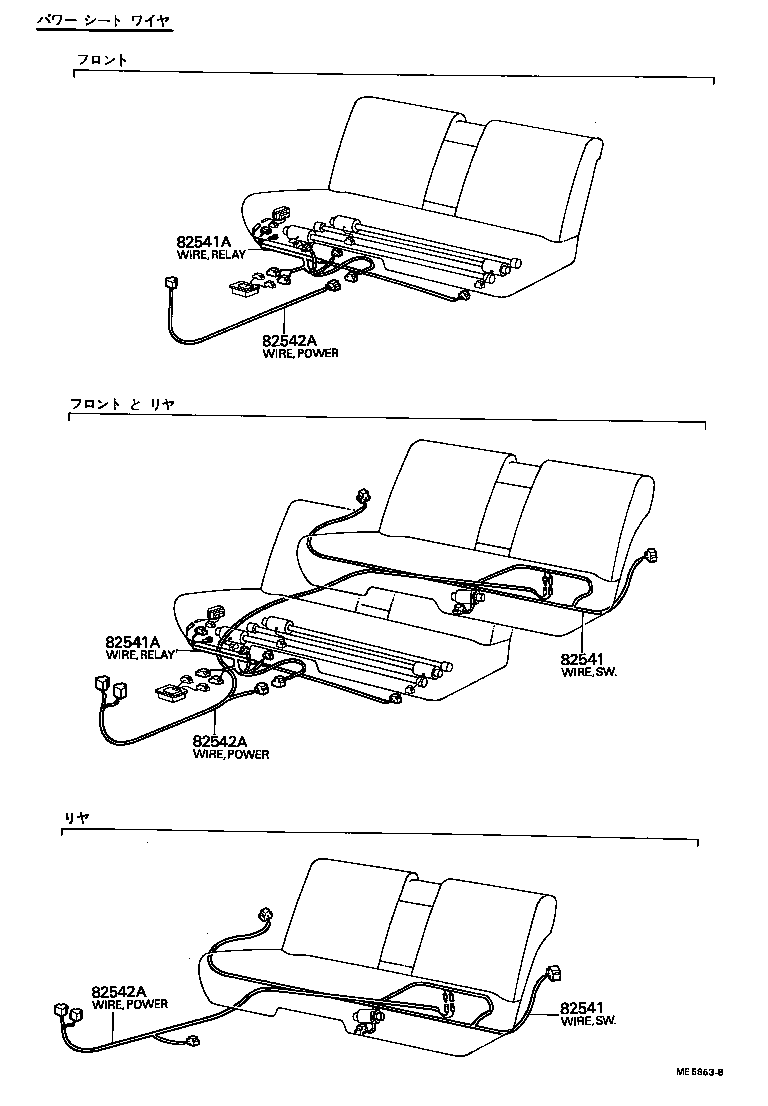

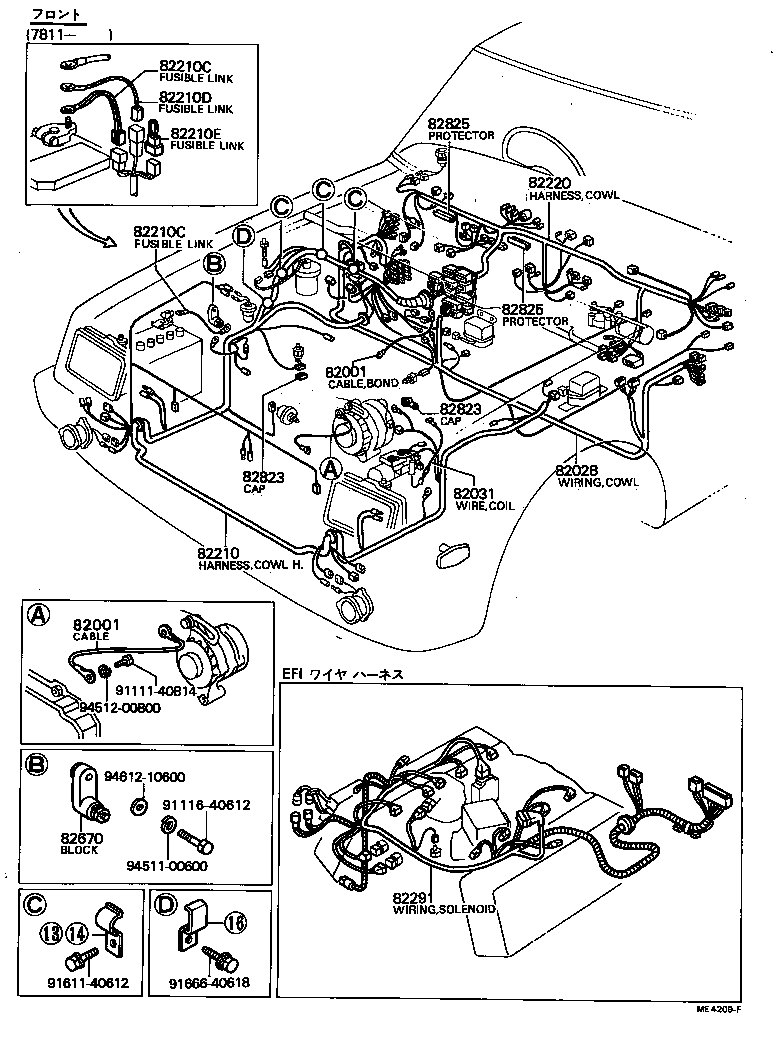

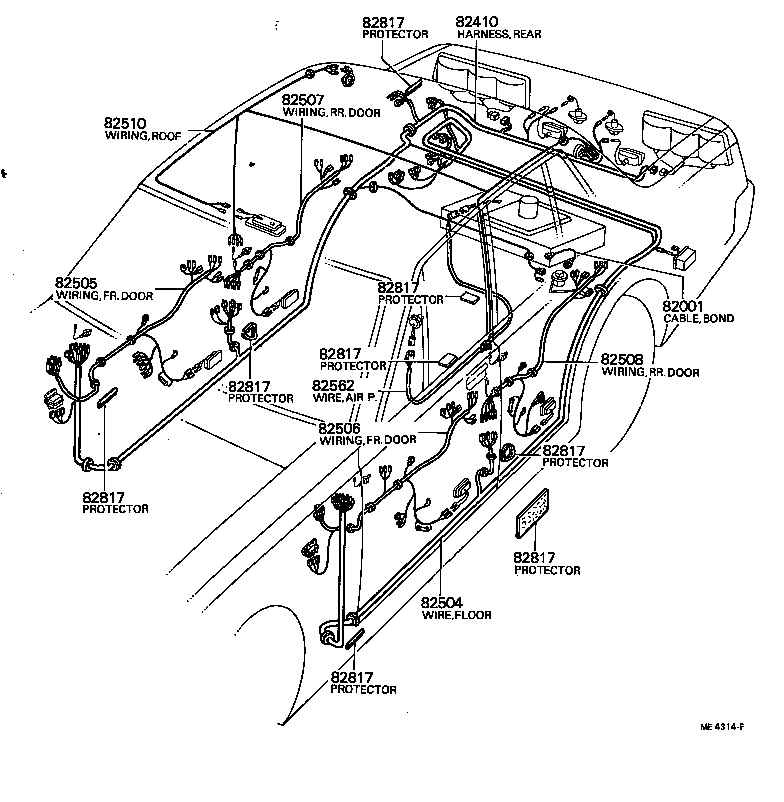

Figure ME4313D ME4313D 1967-11 → 1975-05 Figure ME4209F ME4209F 1975-05 → — Figure ME4314F ME4314F 1967-11 → — Figure ME5853B ME5853B 1967-11 → — Figure ME5854A ME5854A 1967-11 → — Figure ME9461 ME9461 1967-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82028 Wiring Sub-assy, Cowl
82031 Wire Sub-assy, Ignition Coil
82081 Wiring Assy, Door Lock
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82220 Harness Assy, Wiring Cowl
82291 Wiring, TO Solenoid
82310 Wiring Assy, TO Back UP Lamp Switch
82392 Wire, Glove Box Lamp Switch
82406 Wire Sub-assy, Turn Signal
82410 Harness Assy, Wiring TO Rear Lamp
82504 Wire Sub-assy, Floor
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82510 Wiring Assy, Roof
82541 Wire, Power Seat Switch
82541A Wire, Power Seat Relay
82542A Wire, Power Seat
82562 Wire, Air Purifier, NO.1
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
